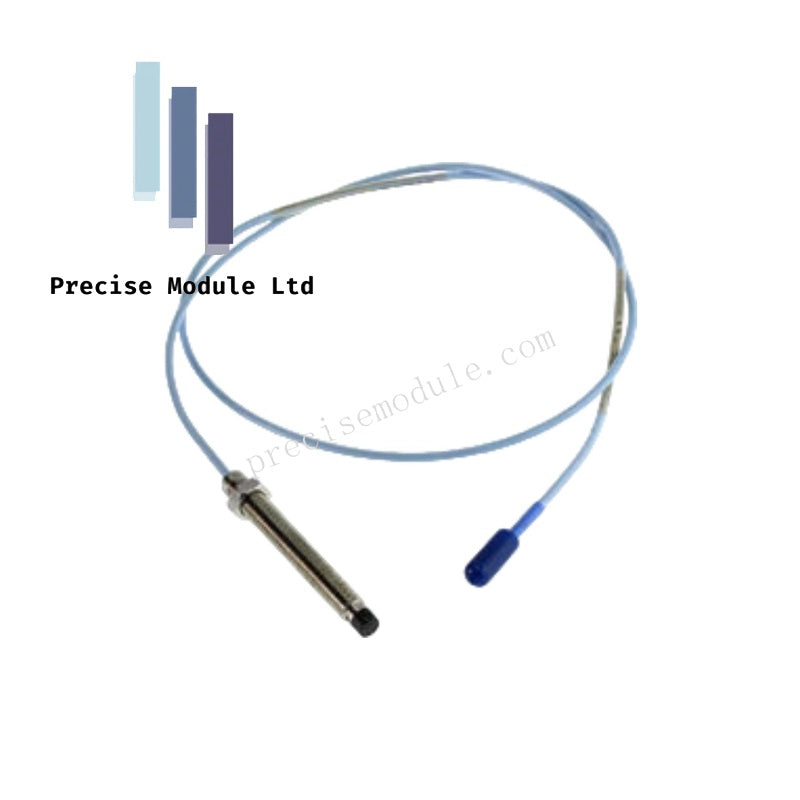

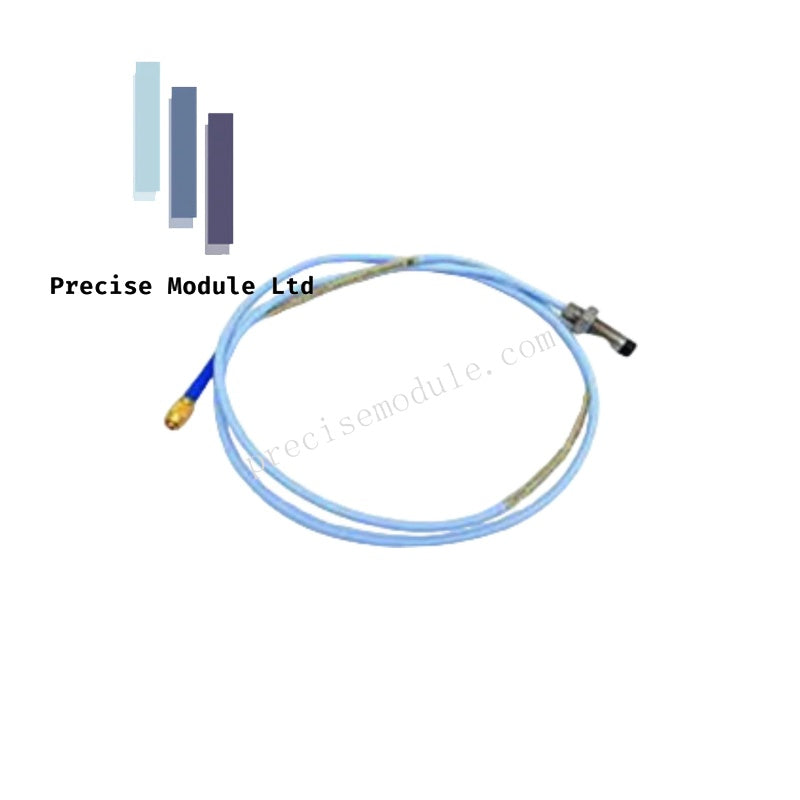

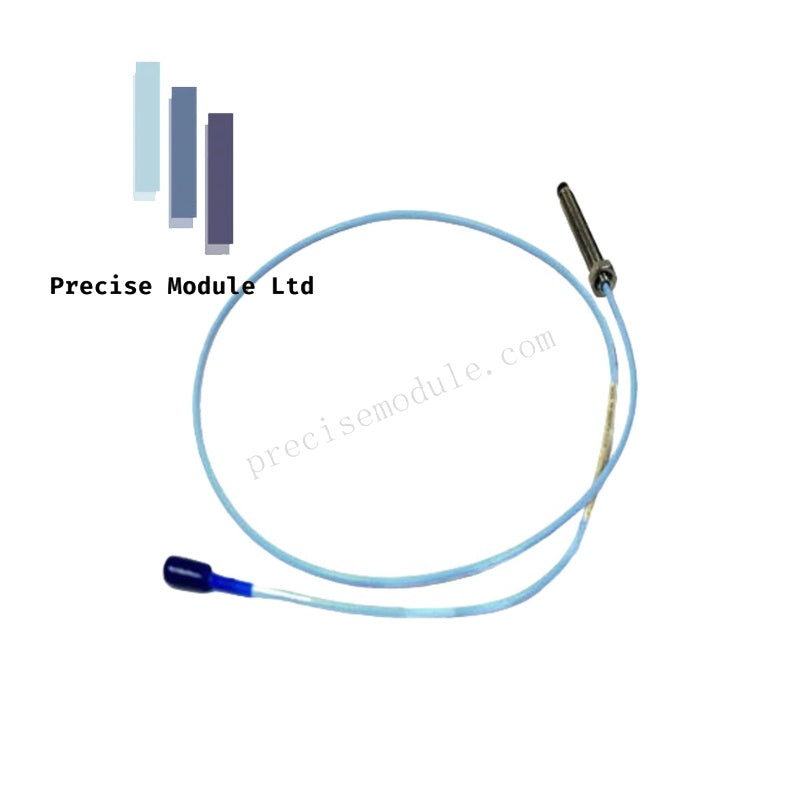

Bently Nevada 330101-00-12-10-02-05 3300 XL 8 mm Proximity Probes

Bently Nevada 330101-00-12-10-02-05 3300 XL 8 mm Proximity Probes

The Bently Nevada 330101-00-12-10-02-05, also cataloged as the 330101 8 mm Proximity Probe, operates as a dedicated hardware component for non-contacting vibration and displacement measurement within fluid-film bearing monitoring platforms. This transducer system utilizes eddy-current induction to generate precise voltage outputs proportional to the distance between the probe tip and the monitored shaft.

Suffix Breakdown & Model Matrix

Hardware Specifications

Proximity Transducer Dynamics & Signal Scaling

The 330101 series leverages Bently Nevada eddy-current probe scaling to ensure high-accuracy signal output in demanding environments. This system adheres to API 670 standards, providing stable linearity and thermal resilience. The transducer output maintains a nominal scale factor of 200 mV/mil, requiring precise gap voltage validation to ensure the -10 VDC baseline is observed at the center of the linear range. By utilizing internal signal conditioning, the system provides effective rotor dynamics monitoring, including shaft centerline and orbital motion, with negligible cross-talk suppression interference when installed according to standard mechanical protocols.

Frequently Asked Questions

Q: Does the system require individual component calibration?

A: No. The 3300 XL series supports complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for component-level bench calibration.

Q: Can this probe be used for speed measurements?

A: Yes. The system is designed to provide Keyphasor reference and speed signals in addition to static position and dynamic vibration monitoring.

Q: What is the purpose of the ClickLoc connector?

A: The ClickLoc connector provides a secure, vibration-resistant mechanical coupling that ensures consistent electrical contact and shielding continuity for the coaxial signal path.

Field Installation Guidelines

1. Probe Positioning: Install the probe in a rigid, non-resonant bracket. Verify that the target area is free of scratches or surface defects that could induce false signal artifacts.

2. Gap Setting: Set the physical gap using a depth micrometer to reach the desired -10 VDC operating point. Ensure the lock-nut is torqued to manufacturer specifications to prevent movement due to machine vibration.

3. Grounding & Shielding: Terminate the coaxial cable shield at the monitoring system terminal block. Maintain a low-impedance path to ground to prevent high-frequency noise injection into the Proximitor signal chain.

4. Cable Management: Avoid sharp bends during cable routing. Secure the cable with appropriate clamps at recommended intervals to prevent abrasion and mechanical fatigue of the coaxial insulation.
