Bently Nevada 330101-00-50-10-02-00 3300 XL 8mm Proximity Probe

Product Description

Overview

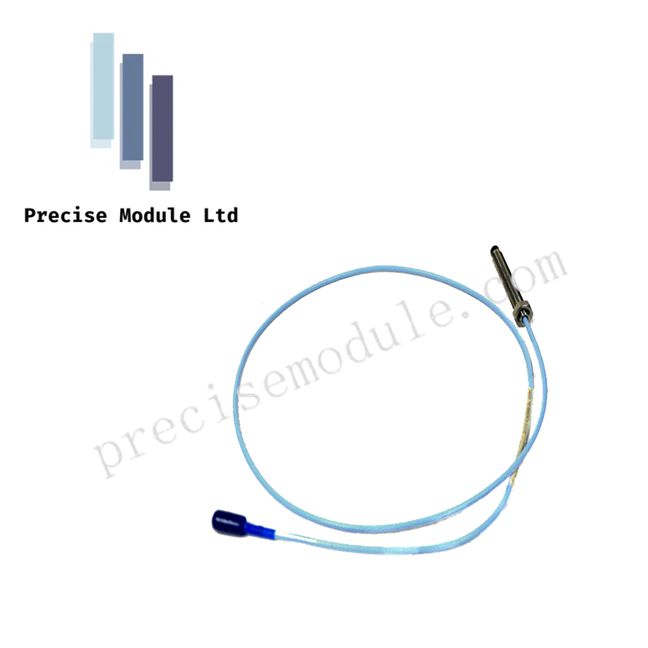

The Bently Nevada 330101-00-50-10-02-00 is a precision 3300 XL 8mm Proximity Probe, engineered for high-fidelity, non-contact measurement of shaft vibration and position in critical rotating machinery. This specific configuration is tailored for applications requiring a 1.0-meter cable, 5.0-inch case, and Miniature ClickLoc™ connector for seamless integration with standard Bently Nevada Proximitor® systems.

The 3300 XL series is recognized as the industry standard for rotor health monitoring, providing reliable, linear signals over a wide dynamic range.

Probe Description

The 330101 series operates as an eddy-current proximity sensor. Its high-frequency magnetic field interacts with conductive targets, generating a voltage proportional to shaft displacement. The robust ClickLoc™ coaxial connector ensures secure, vibration-resistant connections, while the hermetically sealed tip guarantees long-term durability under extreme environmental conditions.

Part Number Breakdown:

• 330101: 8mm probe with 3/8-24 UNF thread

• -00: Unthreaded tip (0.0 in)

• -50: Case length 5.0 in

• -10: Total cable length 1.0 m (3.3 ft)

• -02: Miniature ClickLoc™ connector

• -00: No agency approval required

Performance Characteristics

Precision and Linearity

• Linear Measurement Range: 0.25 mm to 2.3 mm (10–90 mils)

• Scale Factor: 200 mV/mil (7.87 V/mm) with standard AISI 4140 steel target

• Frequency Response: DC to 10 kHz for static position and dynamic vibration monitoring

Environmental and Mechanical Robustness

• Temperature Rating: -51°C to +177°C (-60°F to +350°F)

• Pressure Rating: Up to 7 bar (100 psi)

• Chemical Resistance: Polyphenylene Sulfide (PPS) tip resists industrial oils and moisture

• Connector: Gold-plated ClickLoc™ for vibration-proof, finger-tight installation

• Weight: 0.323 kg; Shipping: 2 kg

Technical Summary Table

Applications

• Radial vibration monitoring (shaft orbit or "wobble")

• Axial thrust measurement to prevent rotor-stator contact

• Slow-roll eccentricity detection for turbines or compressors

• Keyphasor® signal generation for once-per-turn timing

Installation Note: The 1.0-meter cable length requires matching with a 4.0-meter extension if using a standard 5-meter Proximitor® system. Incorrect cable length may cause scale factor errors.

FAQ

Q: What makes this probe different from other 3300 XL models?
A: This part number includes a 1.0 m cable and Miniature ClickLoc™ connector, optimized for specific installation lengths.

Q: Can it handle extreme temperatures?
A: Yes, rated from -51°C to +177°C (-60°F to +350°F).

Q: Is it compatible with standard Bently Nevada Proximitor® systems?
A: Yes, fully compatible and interchangeable with 3300 XL components.
