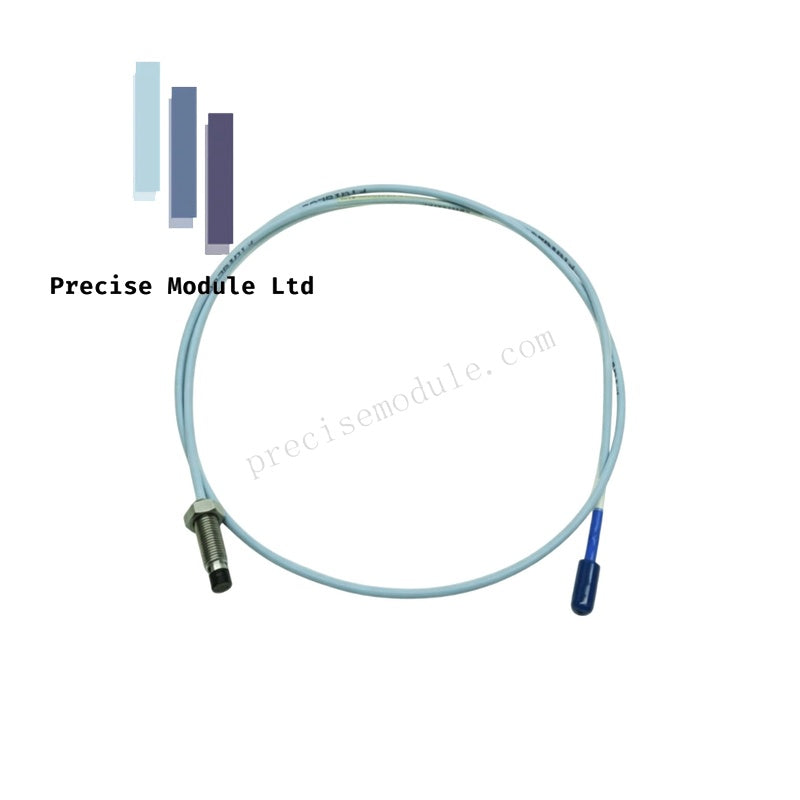

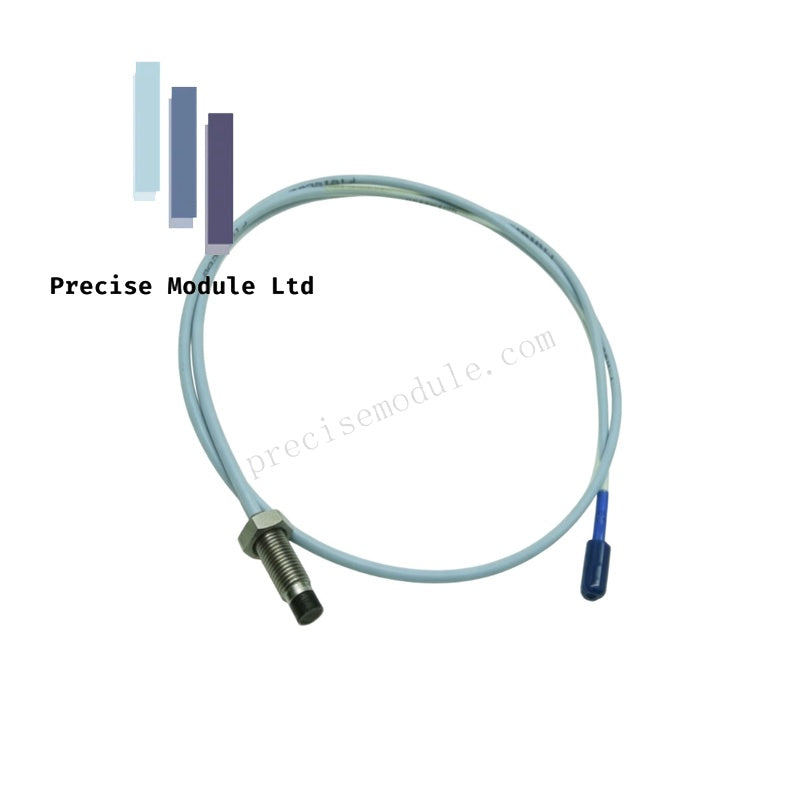

Bently Nevada 330101-00-55-10-02-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-55-10-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-55-10-02-05, also cataloged as the 330101 Proximity Probe, operates as a dedicated hardware component for static (position) and dynamic (vibration) measurements within machine turbine supervisory instrumentation (TSI) platforms.

Hardware Specifications

Eddy-Current Probe Scaling & Calibration

The 330101-00-55-10-02-05 utilizes eddy-current probe scaling to convert physical target proximity into a proportional output voltage via the Proximitor conditioning loop. Field verification requires validation of the gap voltage, targeting -10 VDC as the center of the calibrated linear displacement spectrum. System loops provide complete physical interchangeability across the 3300 XL 8 mm series, omitting the requirement for manual component matching or bench calibration. Critical cross-talk suppression features are sustained during signal path execution by maintaining proper clearance rules between proximity sensors to prevent electromagnetic overlap in high-density rotor dynamics monitoring applications.

Frequently Asked Questions

Q: Is manual bench calibration necessary when swapping out the 330101 probe?

A: No. All 3300 XL 8 mm proximity transducer systems support full component interchangeability, allowing field replacement of probes, extension cables, or sensors without bench calibration.

Q: Is this probe compatible with older, non-XL 3300 series proximity equipment?

A: Yes. Each 3300 XL 8 mm transducer component is backward compatible and interchangeable with standard non-XL 3300 series 5 mm and 8 mm system components.

Field Installation Guidelines

• Connector Protection: Apply self-fusing silicone tape or specialized connector boots to the extension cable junction points to prevent fluid ingress and isolate the signal loop from local metal structural grounding path contacts.
• Target Gap Calibration: Mechanically thread the probe into its mount until a digital multimeter monitoring the Proximitor sensor output shows a static gap voltage reading of -10 VDC (+/-0.5 VDC), verifying alignment with the midpoint of the linear window.
• Conduit Segregation: Route the transducer lines inside dedicated, grounded metallic conduits. Ensure these lines run completely isolated from any high-current AC motor leads or switching control wiring to block external inductive cross-talk.
