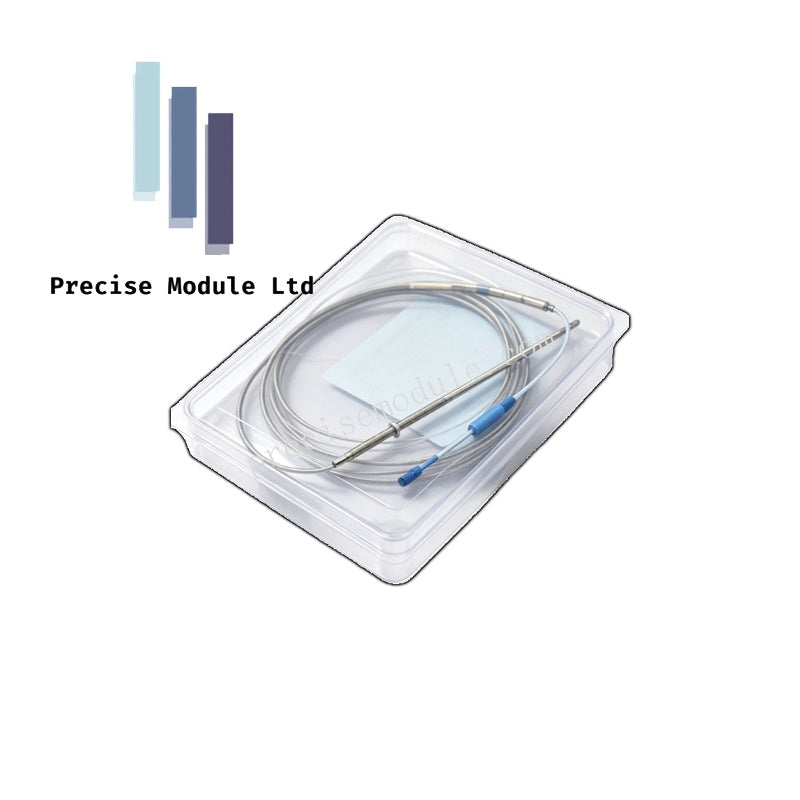

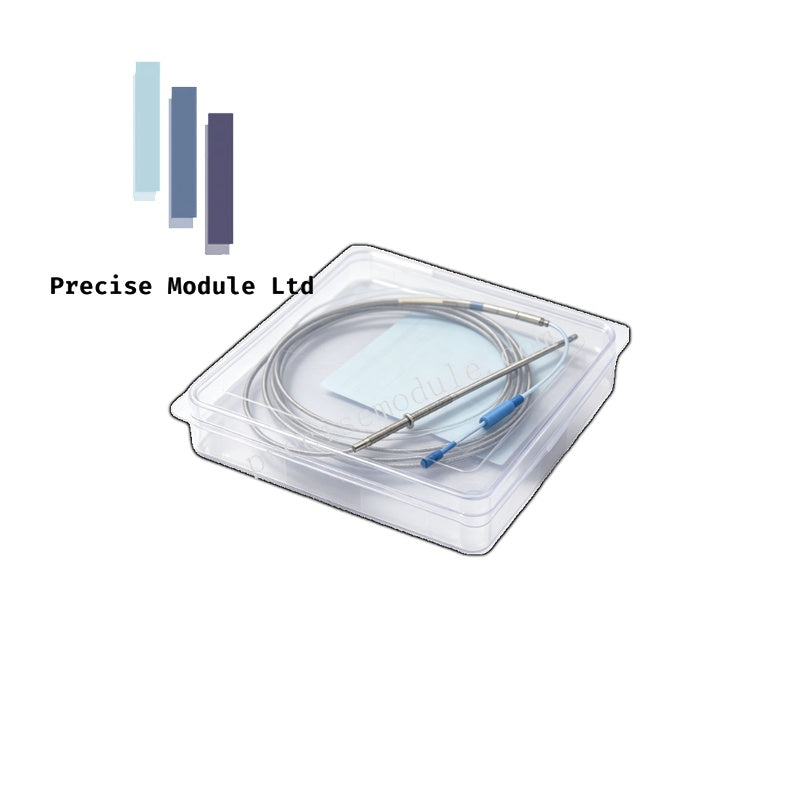

Bently Nevada 330103-00-09-05-02-00 3300 XL Proximity Probes

Bently Nevada 330103-00-09-05-02-00 3300 XL Proximity Probes

Configured for non-contacting vibration and displacement measurements in machine monitoring platforms, the Bently Nevada 330103-00-09-05-02-00 (330103 Proximity Probe) provides direct physical/electrical execution.

Hardware Specifications

Eddy-Current Probe Scaling & Calibration Validation

The mechanical monitoring system relies on eddy-current probe scaling to convert physical displacement into proportional voltage. During installation, field engineers must execute gap voltage validation to ensure the probe operates within the linear region of the Proximitor curve. The target gap voltage typically centers around -10 VDC, corresponding to the midpoint of the linear range. Correct gap voltage settings suppress rotor dynamics cross-talk and prevent signal saturation during axial thrust migration or high-amplitude fluid film bearing vibration events.

Frequently Asked Questions

Q: Can this 3300 XL probe component be interchanged directly with parts from an older 7200-series 11 mm system?

A: No. When upgrading from a 7200-series system to the 3300 XL system, every individual component—including the probe, extension cable, and Proximitor sensor—must be replaced with 3300 XL components. Mixing series alters the circuit impedance and invalidates the 3.94 V/mm scale factor.

Q: What is the purpose of the integrated ClickLoc connector protector?

A: The connector protector mechanically isolates the miniature coaxial junction from fluid ingress, moisture, and environmental contaminants common in fluid film bearing housings. It stabilizes electrical continuity and prevents impedance shifts that corrupt calibration metrics.

Field Installation Guidelines

• Thread Engagement and Torque: Ensure physical mounting brackets accept the M14 or designated thread options without cross-threading. Maintain standard industrial thread engagement metrics to prevent loose mechanical assemblies under high rotor dynamics stress.
• Coaxial Cable Routing: Route the 0.5 meter integral cable away from high-voltage AC lines to prevent electromagnetic cross-talk. Maintain the minimum bend radius specifications for coaxial cables to avoid internal dielectric damage.
• Isolation and Grounding: Terminal connections at the Proximitor sensor end must maintain proper shielding protocols. Ground the outer shield exclusively at the monitoring rack interface to eliminate ground loops that introduce high-frequency noise into the displacement signal.
