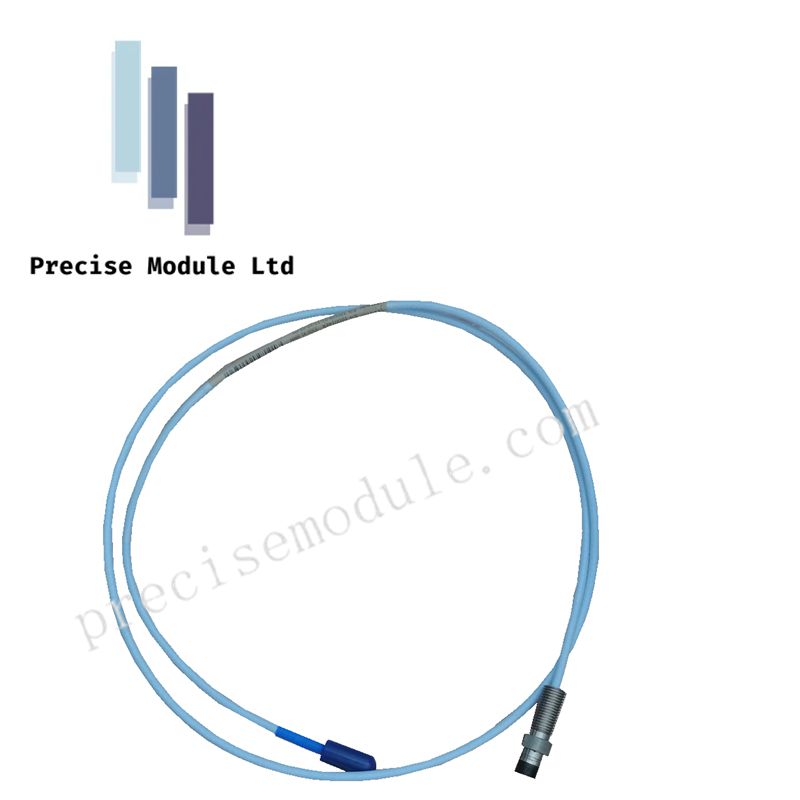

Bently Nevada 330105-02-12-90-02-00 90° miniature ClickLoc coaxial connector

Manufacturer: Bently Nevada
Product No.: 330105-02-12-90-02-00
Condition：in Stock
Product Type: 90° miniature ClickLoc coaxial connector
Product Origin: USA
Payment:T/T, Western Union
Weight: 246g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Bently Nevada 330105-02-12-90-02-00 – 3300 XL 8 mm Proximity Probe

Overview

The Bently Nevada 330105-02-12-90-02-00 is a precision 8 mm reverse mount proximity probe engineered for accurate, non-contact measurements of shaft vibration and displacement. As part of the 3300 XL series, this probe delivers long-term stability, rugged performance, and full compliance with API 670 requirements.

It integrates seamlessly with a 3300 XL Proximitor® sensor and an extension cable, creating a reliable vibration monitoring system for turbines, compressors, pumps, and other critical machinery in oil & gas, power generation, and chemical plants.

Technical Specifications

Parameter	Specification
Model Number	330105-02-12-90-02-00
Series	3300 XL 8 mm Proximity Transducer System
Probe Tip Diameter	8 mm
Cable Length	12 feet (3.66 meters)
Connector Type	90° miniature ClickLoc coaxial connector
Extension Cable Length	2 meters
Proximitor Sensor Model	3300 XL Proximitor Sensor (00 standard)
Measurement Range	±2 mm (80 mils)
Linear Range	0.25 to 2.0 mm (10 to 80 mils)
Sensitivity	7.87 mV/μm (200 mV/mil) ±5%
Frequency Response	0 to 10 kHz
Operating Temperature	−35°C to +120°C
Environmental Protection	Hermetically sealed, corrosion-resistant
Mounting Thread	1/4-28 UNF or M8 × 1
Compliance	API 670, CE, RoHS
Weight	0.246 kg
