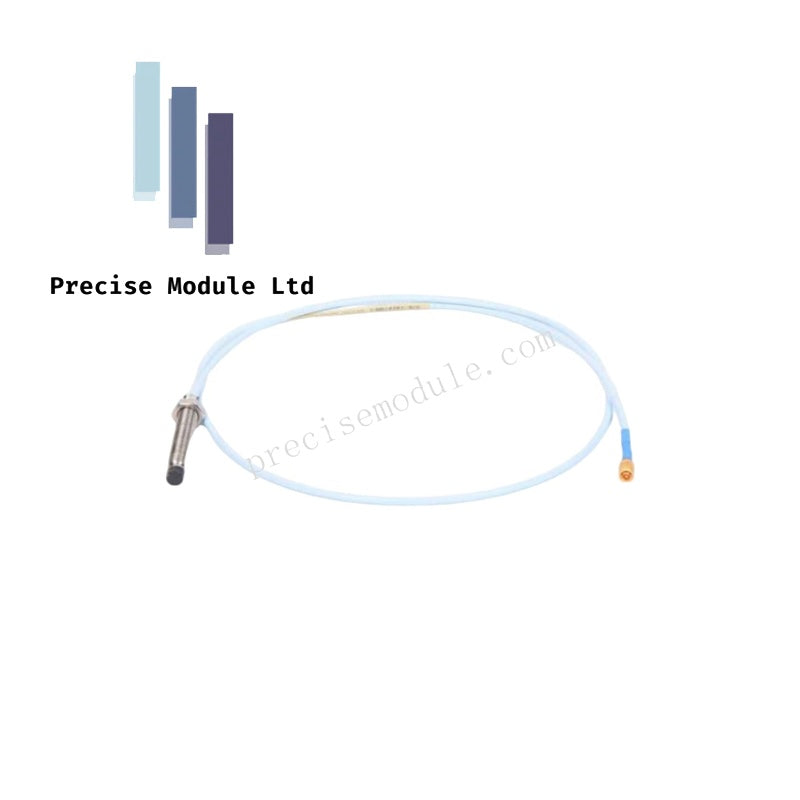

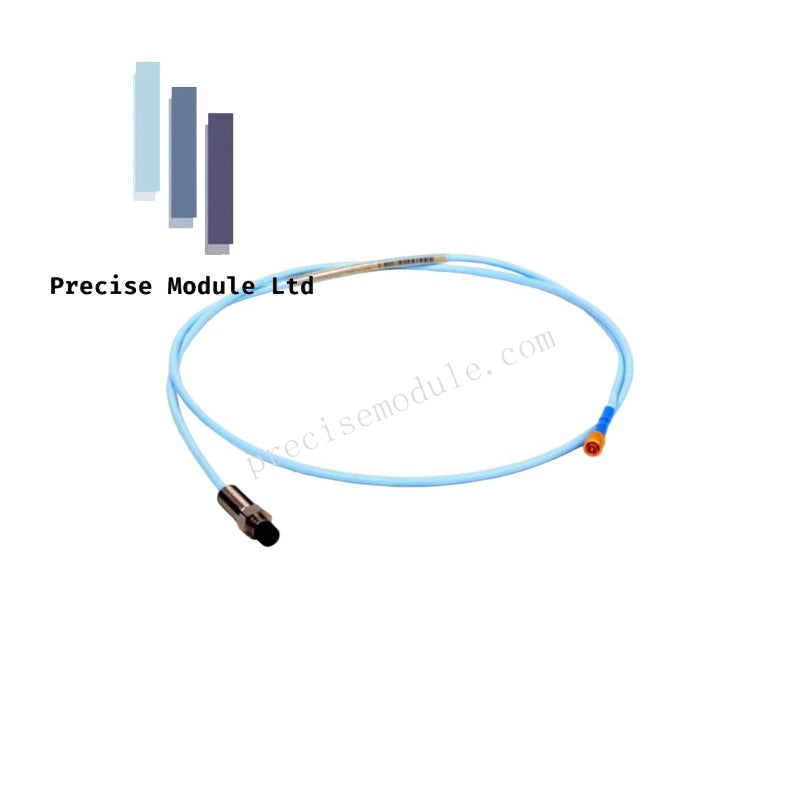

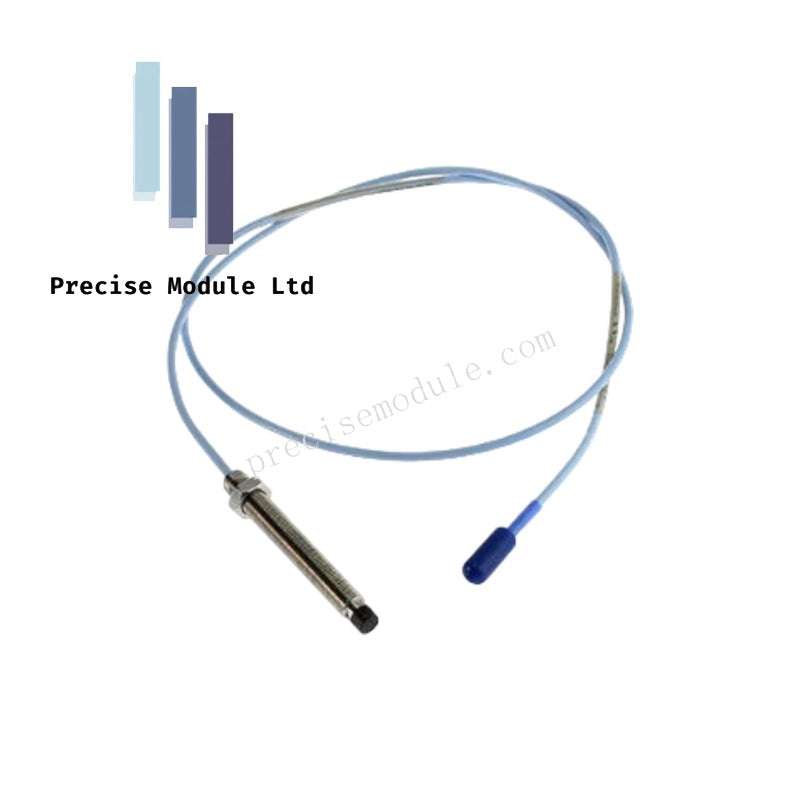

Bently Nevada 330140-XX-XX-10-02-05 Proximity Probe

Bently Nevada 330140-XX-XX-10-02-05 Proximity Probe

The Bently Nevada 330140-XX-XX-10-02-05, also cataloged as the 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for displacement sensing within eddy-current proximity transducer systems. This probe provides a continuous output voltage proportional to the distance between the probe tip and a conductive surface, facilitating the measurement of static position and dynamic vibration characteristics on fluid-film bearing machinery.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330140-XX-XX-10-02-05 probe is engineered to ensure consistent eddy-current probe scaling, a requirement for accurate rotor dynamics interpretation. When integrated into the 3300 XL system, it maintains linearity and thermal stability compliant with API 670 standards. The component supports full interchangeability, removing the requirement for bench calibration when replacing individual probes, extension cables, or Proximitor sensors. Proper installation ensures the transducer maintains its -10 VDC target midpoint, providing an optimal range for monitoring shaft centerline and vibration amplitude.

Frequently Asked Questions

Q: Are there specific installation constraints for the 5.0-meter probe configurations?

A: Yes, 5.0-meter probes are engineered exclusively for use with 5.0-meter Proximitor sensors. Mixing probe and sensor lengths outside of validated combinations will introduce significant output non-linearity.

Q: When should the FluidLoc cable option be utilized?

A: The FluidLoc cable (Option 12) is intended for environments where fluid migration through the cable jacket must be prevented; it is generally unnecessary for the 330105/06 series due to the inherent probe sleeve design.

Field Installation Guidelines

1. Mounting Geometry: Ensure the probe is installed in a rigid, non-vibrating bracket. The probe tip must be set with adequate clearance to prevent contact with the shaft at maximum expected excursion.

2. Cable Management: Protect the miniature coaxial cable from physical strain. Use dedicated conduit or cable trays to prevent damage from industrial fluids or accidental mechanical impact.

3. Connector Security: Utilize the ClickLoc mechanism to ensure a vibration-resistant connection. Verify that no contaminants are present at the interface to prevent impedance mismatches or signal degradation.

4. Electrical Verification: Measure the gap voltage between the probe tip and the target using a high-impedance digital multimeter. Confirm the reading aligns with the expected -10 VDC midpoint prior to operation.
