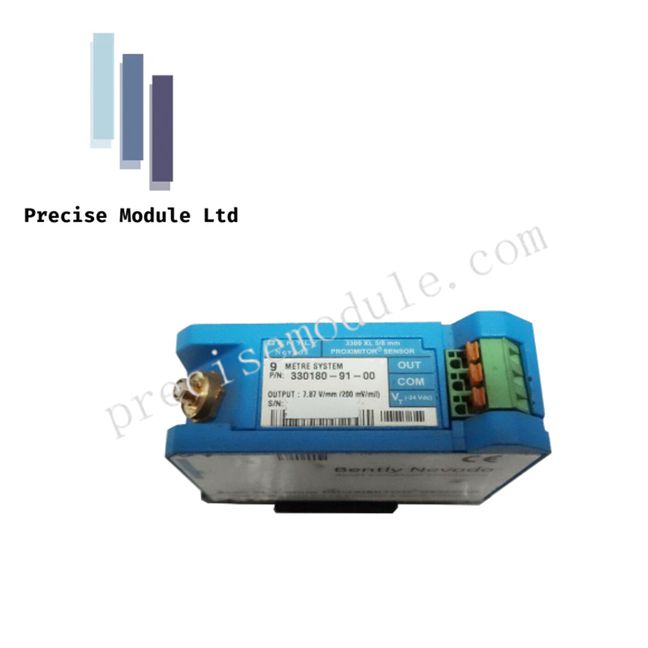

Bently Nevada 330180-91-00 3300 XL Proximitor Sensor Extension Cable

Bently Nevada 330180-91-00 3300 XL Proximitor Sensor Extension Cable

  • Manufacturer: Bently Nevada

  • Product No.: 330180-91-00

  • Condition：in Stock

  • Product Type: 3300 XL 5/8 mm Proximitor Sensor

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2000g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Product Description

Overview

The Bently Nevada 330180-91-00 is a precision 3300 XL Proximitor Sensor designed for high-accuracy machinery vibration and position monitoring. As part of the 3300 XL 8mm proximity system, it converts displacement into analog signals to provide real-time gap measurement between the probe tip and a conductive target. Built for extreme industrial environments, it delivers reliable performance in rotating machinery, compressors, turbines, and pumps.

Technical Specifications

Feature Specification
Model / Part Number 330180-91-00
Product Type 3300 XL 8mm Proximitor Sensor with Extension Cable
Total System Length 9.0 meters (29.5 feet), DIN mount configuration
Agency Approval Standard, no specific hazardous area certification required
Sensor Material A308 Aluminum
Input Type Non-contacting 3300-series proximity probe input
Operating Temperature -51°C to +100°C (-60°F to +212°F)
Storage Temperature -51°C to +105°C (-60°F to +221°F)
Output Analog voltage proportional to displacement
Linear Range 2.0 mm (80 mils)
Incremental Scale Factor 7.87 V/mm ±6.5%
Frequency Response 0 – 10 kHz (+0, -3 dB)
Power Supply -17.5 VDC to -26 VDC
Current Consumption Maximum 12 mA
Weight 0.23 kg (Module), Shipping 2 kg
Mounting DIN-rail compatible

Functional Highlights

  • Full Interchangeability: Works seamlessly with all 3300 XL probes and extension cables without bench recalibration.

  • Legacy Compatibility: Backward-compatible with 3300-series 5mm and 8mm sensors, allowing incremental system upgrades.

  • High-Density Installation: DIN-rail mount ensures space-saving installation with electrical isolation.

  • API 670 Compliant: Meets standards for linearity, temperature stability, and mechanical configuration.

  • Robust Terminals: Spring-loaded screwless terminals provide reliable connections resistant to vibration.

  • Precision Monitoring: Maintains measurement accuracy with strict total system electrical length compliance.

Usage Notes

The combined electrical length of the probe, extension cable, and sensor must total exactly 9.0 meters. Deviations from this length can produce measurement errors and non-linear output.

Applications

  • Rotating machinery vibration monitoring in turbines, compressors, and generators

  • Bearing clearance measurement and predictive maintenance systems

  • High-speed shafts and fluid-film bearings in power generation

  • Retrofit projects upgrading legacy 3300 systems to XL series

FAQ

Q: What is the maximum operating temperature?
A: The sensor operates reliably from -51°C to +100°C (-60°F to +212°F).

Q: Can this sensor be used with 3300 5mm probes?
A: Yes, the 330180-91-00 is backward compatible with standard 3300 5mm and 8mm probes.

Q: How long is the system cable?
A: The total system length is 9.0 meters (29.5 feet) including probe and extension cable.

Q: Does it require hazardous area certification?
A: No, this standard configuration does not include ATEX/IECEx approval.
