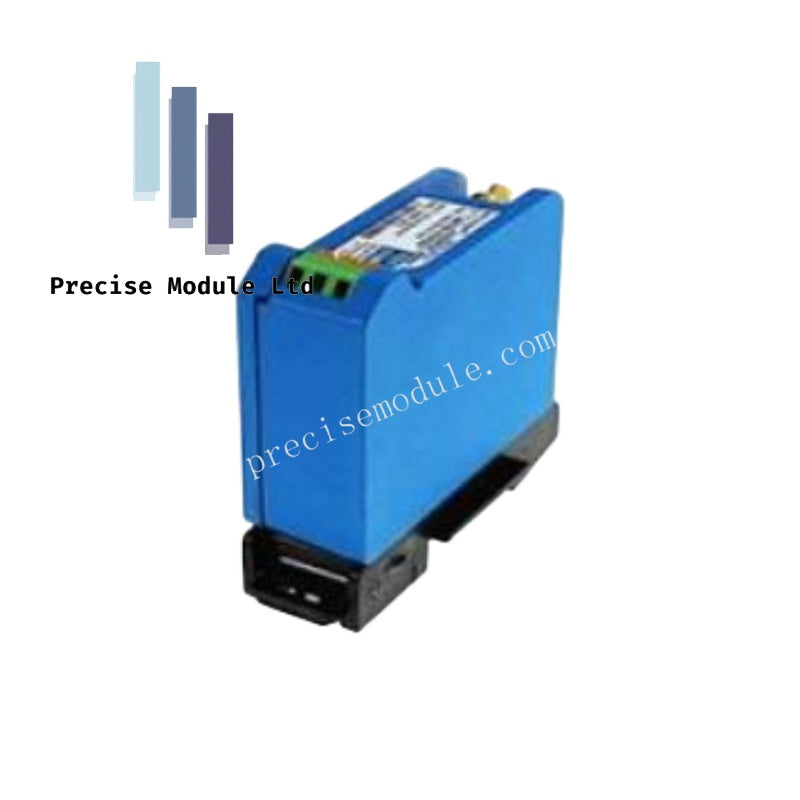

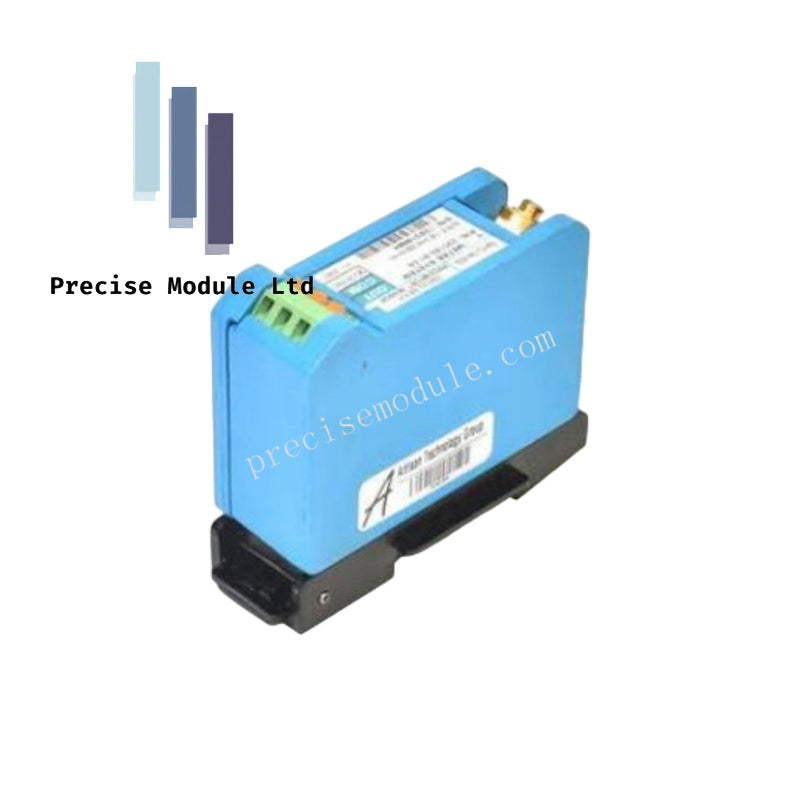

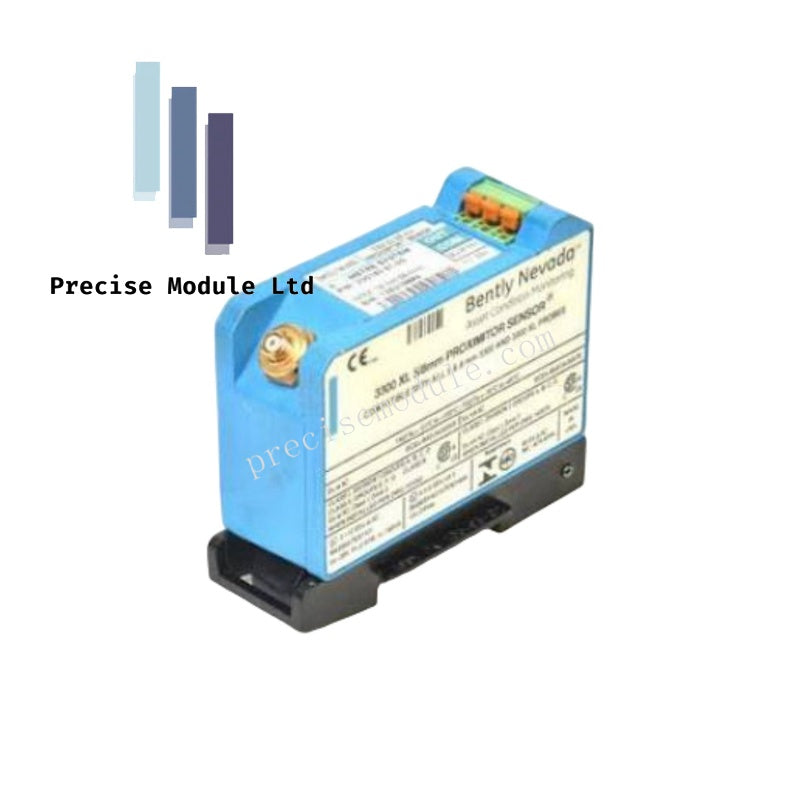

Bently Nevada 330180-91-00 Proximitor Sensor

Bently Nevada 330180-91-00 Proximitor Sensor

The Bently Nevada 330180-91-00, also cataloged as the 330180 Proximitor Sensor, operates as a dedicated hardware component for signal conditioning of eddy-current transducer inputs within vibration and position monitoring platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The Bently Nevada 330180-91-00 functions as the primary oscillator/demodulator for the 3300 XL transducer system. The unit is optimized for rotor dynamics by converting changes in gap distance into a linear voltage signal. For optimal measurement fidelity, gap voltage validation is performed by ensuring the target operates within the linear range, typically targeting -10 VDC at the median gap. The device utilizes advanced filtering to ensure cross-talk suppression between adjacent probes, which is essential for dense probe installations on fluid-film bearing machines. The Proximitor design supports full interchangeability, allowing field replacement without requiring individual system re-calibration.

Frequently Asked Questions

Q: Does the 330180-91-00 model support long-distance field wiring?

A: Yes, the system maintains frequency response from 0 to 10 kHz with up to 305 meters (1000 feet) of field wiring, provided the specified cable impedance and shielding are maintained.

Q: Is this sensor compatible with both 5 mm and 8 mm probe tips?

A: Yes, the 3300 XL Proximitor sensor is designed for interchangeability with 3300 XL 5 mm and 8 mm probes, as well as legacy 3300 series transducer components.

Field Installation Guidelines

• Gap Adjustment: Set the initial mechanical gap to 1.27 mm (50 mils) to ensure the transducer operates in the center of its linear range for both static and dynamic signal capture.
• Target Surface: Ensure the observed conductive surface has a minimum diameter of 15.2 mm (0.6 in) to prevent measurement error due to target edge effects.
• Shielding: Utilize high-quality coaxial cables and maintain shield integrity to avoid electromagnetic noise, particularly in environments with high-frequency drive interference.
• Mounting: Secure the Proximitor unit on a DIN-rail to ensure mechanical stability and proper grounding through the mounting bracket interface.
