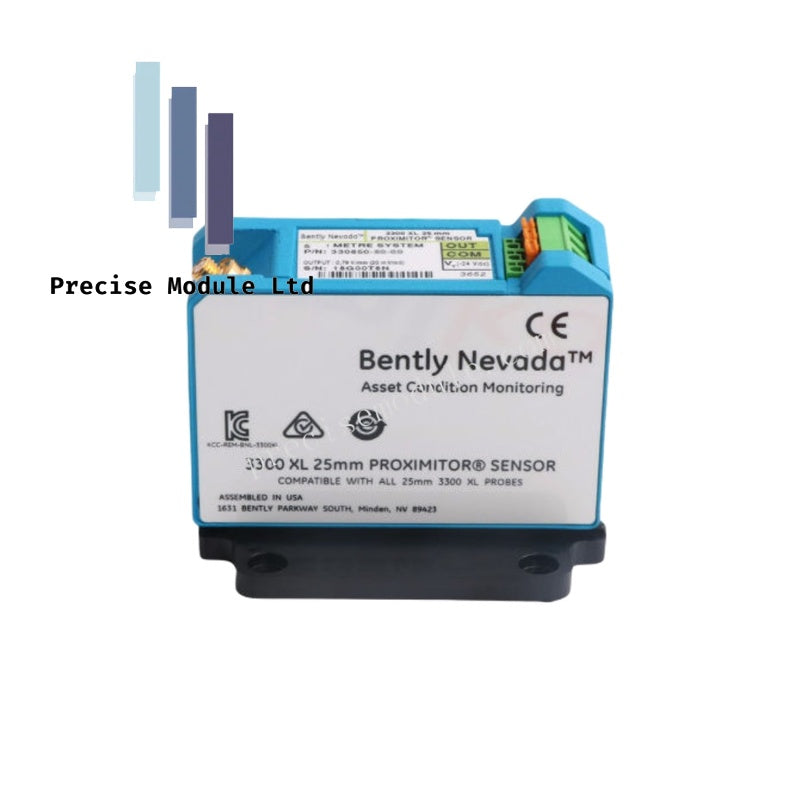

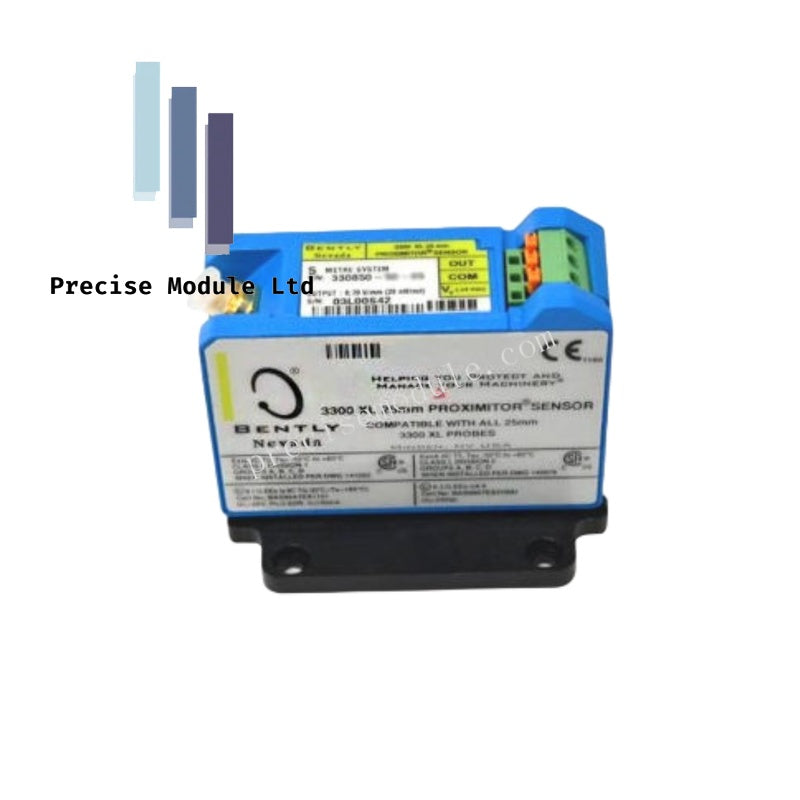

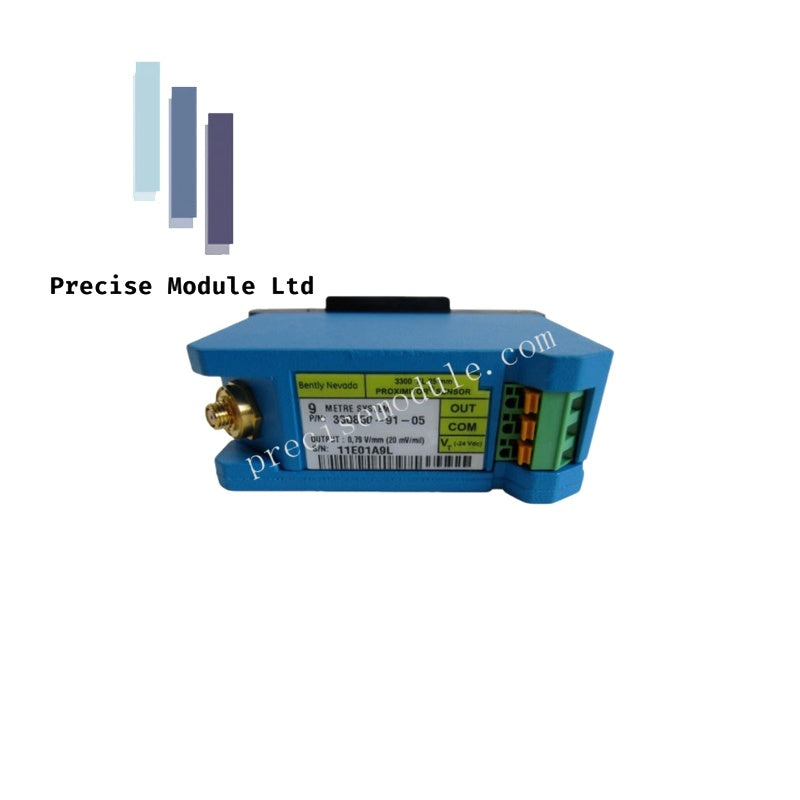

Bently Nevada 330850-90-05 3300 XL NSv Proximitor Sensor

Bently Nevada 330850-90-05 3300 XL NSv Proximitor Sensor

The Bently Nevada 330850-90-05, also cataloged as the 330850-90-05 Proximity Sensor, serves as the primary 3300 XL NSv Proximitor Sensor utilized to execute radial vibration and axial position measurements across fluid-filmed bearing machinery platforms.

Hardware Specifications

Eddy-Current Probe Scaling and Target Constraints

The sensor generates a high-frequency RF signal to execute eddy-current probe scaling for small physical targets, such as machine shafts smaller than 51 mm or axial faces smaller than 15 mm. The internal circuitry establishes a precise gap voltage validation, transforming the magnetic field variances into a linear voltage output proportional to distance. Designed for tight physical constraints, the sensor utilizes advanced cross-talk suppression algorithms to eliminate signal degradation caused by tight counterbore sideview or rearview restrictions, allowing clean capture of rapid rotor dynamics and high-speed Keyphasor transitions.

Frequently Asked Questions

Q: Can the 330850-90-05 sensor operate with standard 5 mm or 8 mm 3300 XL extension cables?

A: No. The 3300 XL NSv sensor must match exclusively with the specific 3300 NSv extension cable and probe architecture. Mixing components with standard 3300 XL series hardware disrupts the calibration and ruins the Average Scale Factor.

Q: What is the significance of the 9.0-meter system length option code?

A: The sensor tuning relies on the electrical length of the circuit. The combined length of the connected 3300 NSv probe and the extension cable must total exactly 9.0 meters to ensure the accurate conversion of mechanical movement to a linearized output.

Field Installation Guidelines

1. DIN-Rail and Panel Mounting: Secure the sensor chassis to the backplate using the integrated mounting brackets. Ensure electrical isolation from the mounting plate if specified by the plant loop diagrams to prevent ground loop currents.
2. Coaxial Connection Insulation: Insulate the coaxial connection points between the extension cable and the probe lead using clear fluoropolymer shrink tubing. This layer keeps out moisture, cutting oils, and conductive contaminants.
3. Thread Engagement and Clearance: Maintain minimum physical clearance around the probe tip relative to surrounding metal structural walls to prevent sideview interference from distorting the active eddy-current field.
