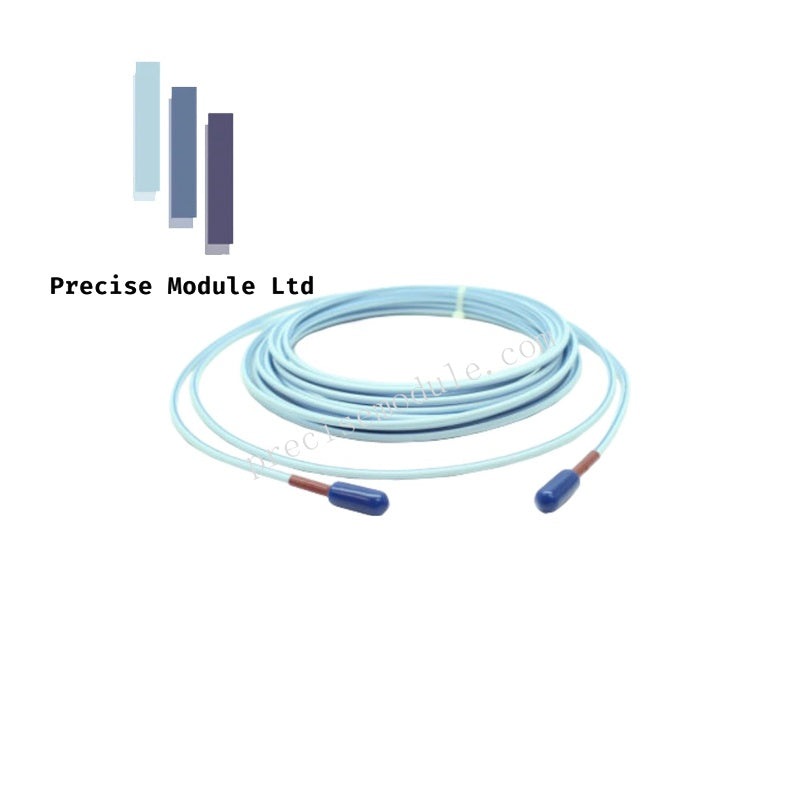

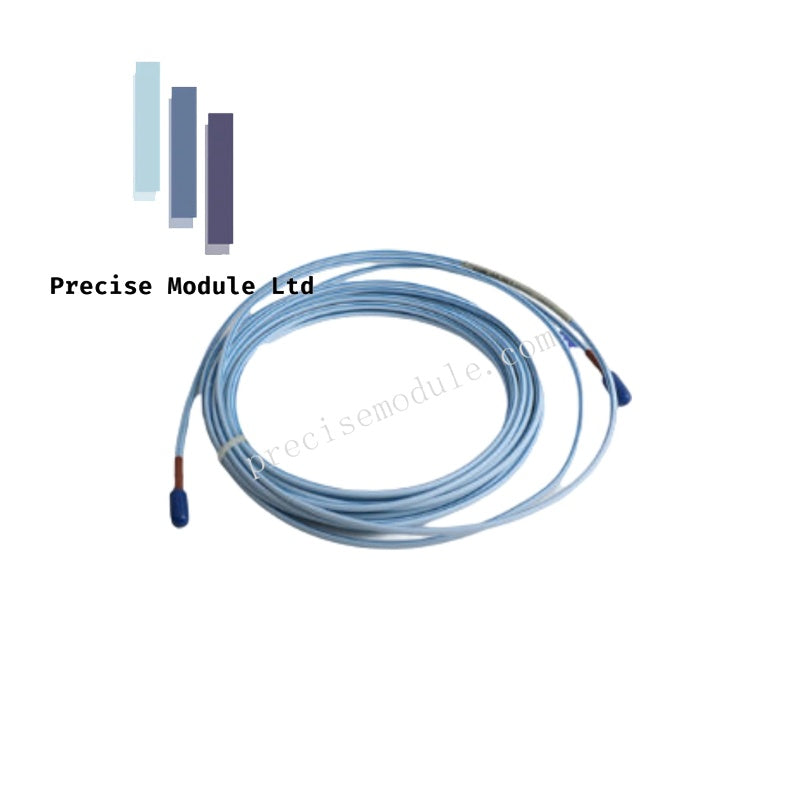

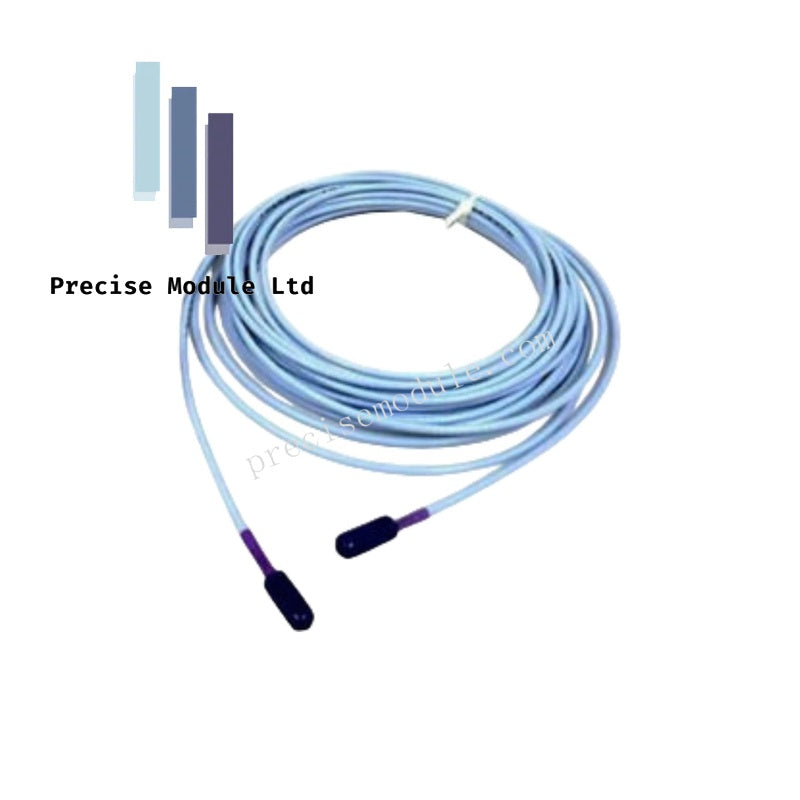

The Bently Nevada 330877-080-36-00, also cataloged as the 3300 XL 50 mm Extension Cable, operates as a dedicated hardware component for signal transmission between the proximity probe and the Proximitor sensor within the 3300 XL monitoring system. This assembly maintains the high-frequency integrity required for accurate gap measurement in rotating machinery.

Suffix Breakdown & Model Matrix

Hardware Specifications

Bently Nevada Mechanical Monitoring & TSI Characteristics

The 330877-080-36-00 extension cable is engineered to maintain system calibration when paired with 3300 XL 50 mm components. The cable maintains a characteristic impedance of 75 Ω, which is critical for ensuring that eddy-current probe scaling remains consistent throughout the signal path. The FluidLoc design provides a physical barrier within the insulation matrix, preventing oil migration from the machine housing to the terminal or junction box. When installing, technicians must verify that the total system length (probe plus extension cable) matches the calibrated configuration to avoid errors in gap voltage validation, as any significant variance will shift the probe linear range and potentially compromise rotor dynamics monitoring.

Frequently Asked Questions

Q: Can this cable be shortened in the field?

A: No. Shortening the 330877-080-36-00 cable will alter the system impedance and degrade the signal characteristics of the 3300 XL proximity system.

Q: What is the benefit of the FluidLoc cable construction?

A: The FluidLoc feature incorporates a specialized seal within the cable jacket to block the transport of oils or process fluids through the cable core, preventing damage to downstream monitoring modules.

Field Installation Guidelines

1. Connector Protection: Keep all coaxial connectors clean and dry during installation. Use thread-seal tape or protective caps to ensure environmental protection after the connection is made.
2. Bend Radius: Adhere to a minimum bend radius of 25 mm to prevent insulation stress or internal conductor fatigue.
3. Cable Routing: Avoid routing the cable alongside high-voltage power conduits to minimize electromagnetic interference. Ensure that the cable is secured with standoffs or non-metallic ties to prevent abrasion from machine vibration.
4. Connection Torque: Finger-tighten the coaxial connectors, then apply an additional 1/8 turn with pliers. Over-tightening can deform the connector mating surface and increase electrical resistance.
