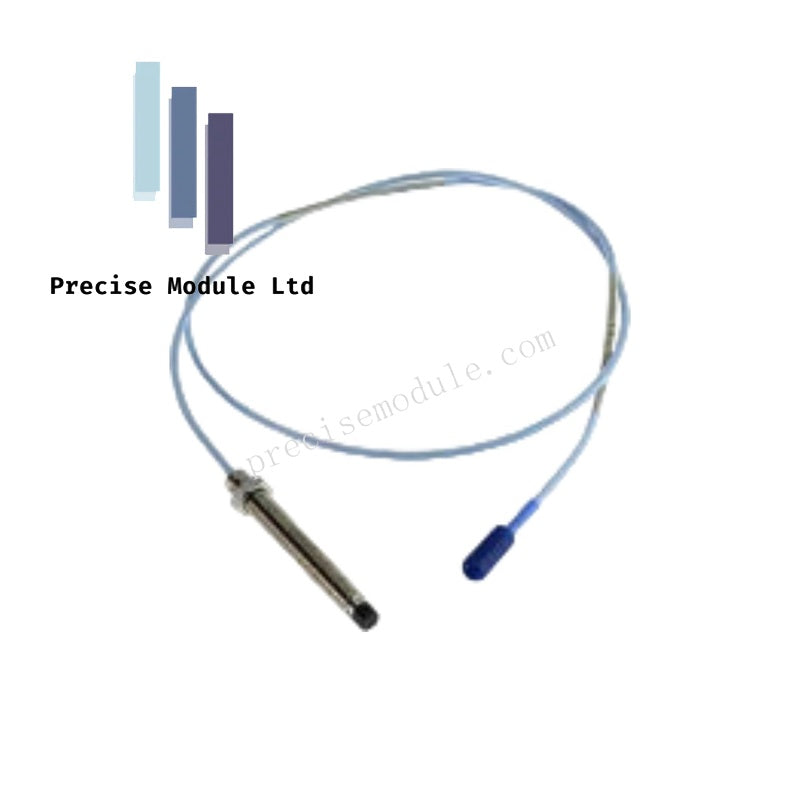

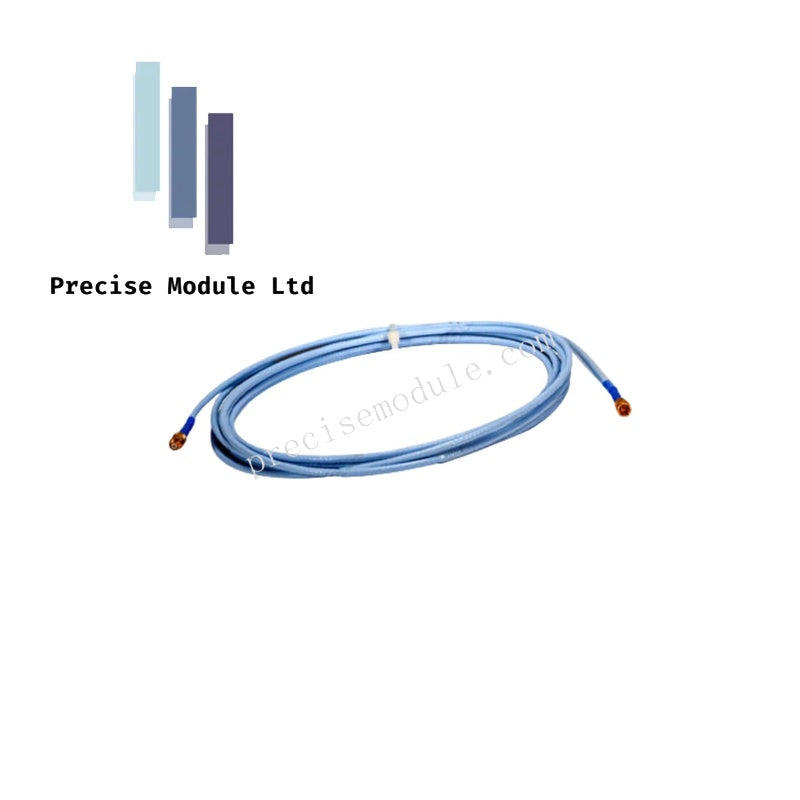

The Bently Nevada 330930-040-02-00, also cataloged as the 3300 NSv Extension Cable, operates as a dedicated hardware component for interconnecting the 3300 NSv probe and the 3300 XL NSv Proximitor sensor within compact rotating machinery monitoring systems.

Suffix Breakdown & Model Matrix

Hardware Specifications

Bently Nevada Mechanical Monitoring & TSI Characteristics

The 330930-040-02-00 extension cable is specifically optimized for applications requiring a reduced side-view footprint. This cable maintains the signal integrity necessary for eddy-current probe scaling in tight mechanical spaces where standard 5 mm or 8 mm systems are physically prohibited. It is designed to support the NSv system's capability to measure shafts smaller than 51 mm or flat targets smaller than 15 mm. Proper installation is required to maintain the specified gap voltage validation targets. Technicians must ensure that the stainless steel armor is properly supported to prevent mechanical fatigue and that the lack of FEP jacket is accounted for in chemically aggressive environments.

Frequently Asked Questions

Q: Is this extension cable interchangeable with standard 3300 XL extension cables?

A: No. The 330930 NSv cable is electrically and physically tuned specifically for the 3300 XL NSv Proximitor sensor and cannot be substituted for standard 3300 XL system cables.

Q: How should the stainless steel armor be treated during installation?

A: The stainless steel armor provides mechanical protection but should not be grounded at both ends to avoid ground loops. Ensure the armor is secured using appropriate clamps to prevent vibration-induced wear on the cable assembly.

Field Installation Guidelines

1. Connector Cleaning: Ensure both the probe-to-cable and cable-to-Proximitor connectors are free of oil and contaminants before mating. Use a lint-free cloth and, if necessary, an electrical contact cleaner that does not leave residue.
2. Cable Routing: Route the cable to prevent sharp kinks. Adhere to a minimum bend radius defined by the armor stiffness to avoid damage to the internal coaxial conductors.
3. Environmental Considerations: Since this version lacks an FEP jacket, verify the chemical compatibility of the exposed stainless steel armor with the installation environment, particularly in areas with corrosive vapors or fluids.
4. Connection Integrity: Hand-tighten the connectors until seated, followed by a slight tightening using a wrench to ensure a secure, low-impedance electrical connection.
