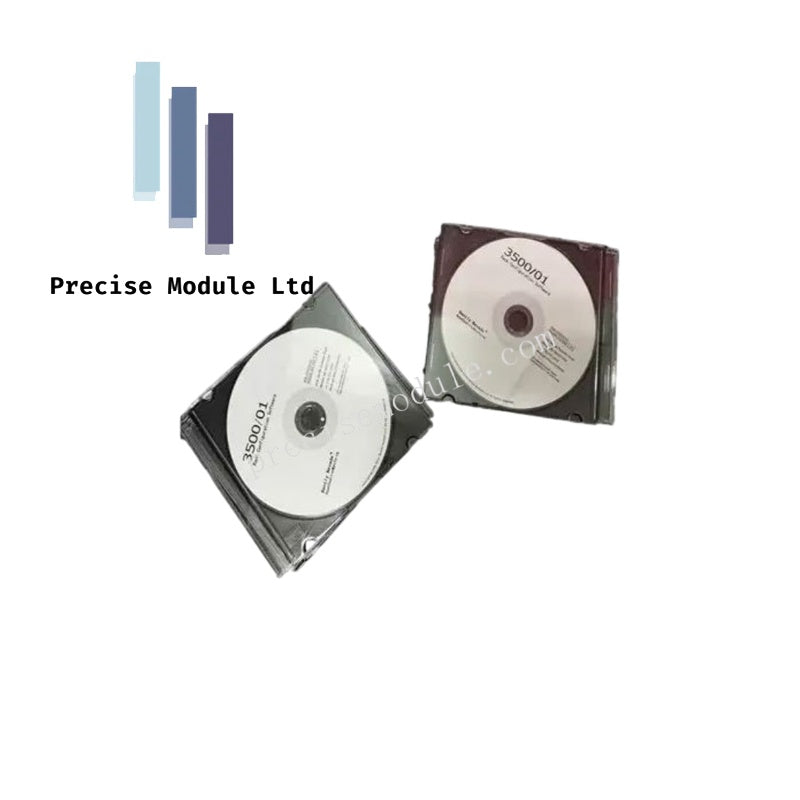

Bently Nevada 3500/01-01 Rack Configuration

Bently Nevada 3500/01-01 Rack Configuration

The Bently Nevada 3500/01-01 operates as the primary software interface and documentation suite required for the setup, programming, and maintenance of the 3500 Machinery Protection System.

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3500/01-01 software suite provides the deterministic logic environment necessary for configuring the 3500 series rack, ensuring compliance with API 670 standards. It facilitates the setup of monitoring parameters, alarm thresholds, and relay voting logic across the entire rack architecture. The software interacts directly with the 3500/22M Transient Data Interface (TDI) module to upload rack configurations, which then manage the real-time data processing for rotor dynamics, position, and overspeed monitoring. By ensuring correct cross-talk suppression and signal scaling parameters within the digital logic, this configuration tool guarantees that the mechanical protection system executes fail-safe states accurately during machine transients.

Frequently Asked Questions

Q: Is the 3500/01-01 software required to update module firmware within the 3500 rack?

A: Yes. The configuration software includes the necessary utilities for firmware flash compatibility, allowing users to update monitor modules, relay modules, and the TDI module to the latest revision levels.

Q: Can this software be used to configure systems across different physical rack sizes?

A: Yes. The 3500/01-01 software supports both 19-inch full-size racks and 12-inch mini-racks, providing a unified programming environment regardless of the physical chassis dimensions.

Field Installation Guidelines

• Ensure the host computer meets the minimum system requirements for the current version of the 3500 Rack Configuration software before installation.
• Establish a secure communication link between the configuration PC and the 3500/22M TDI module port prior to attempting any configuration uploads or data retrieval.
• Validate that all programmed alarm setpoints and relay logic match the specific mechanical protection requirements defined by the machine manufacturer.
• Backup all configuration files to a secure storage location after making any modifications to the rack setup to prevent data loss.
• Verify that the software settings align with the installed physical hardware modules to prevent configuration errors that could lead to system faults or inhibit protection functionality.
