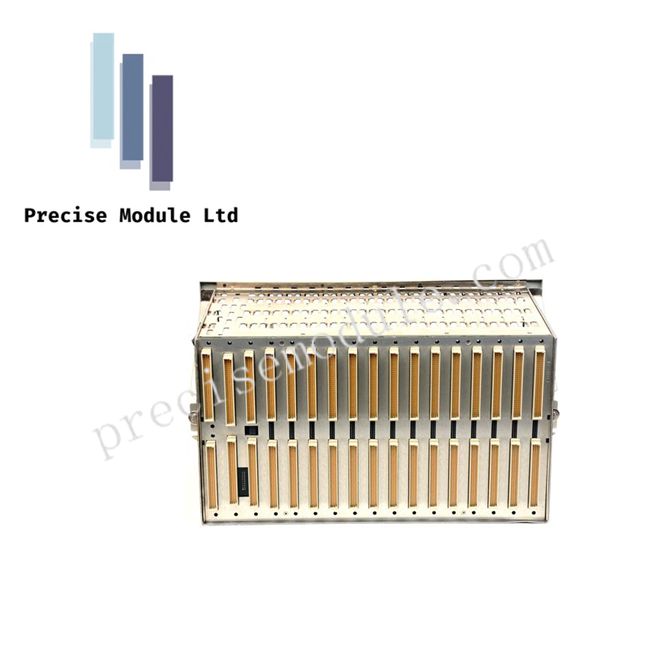

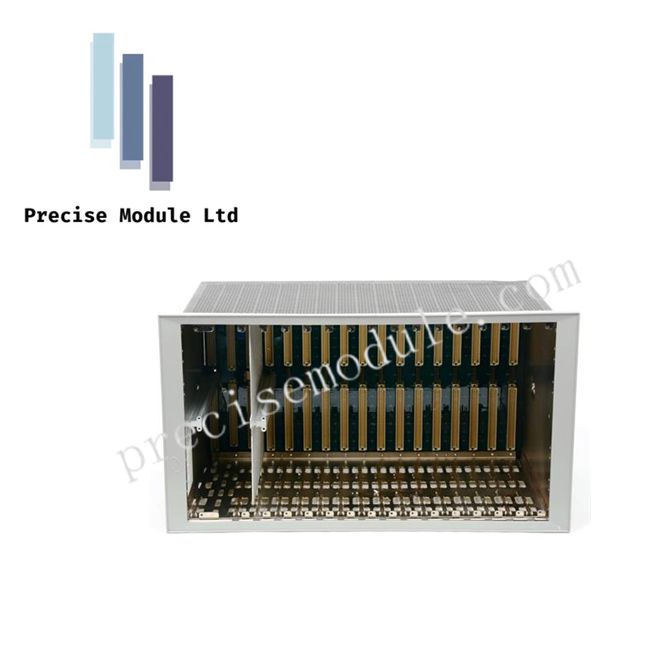

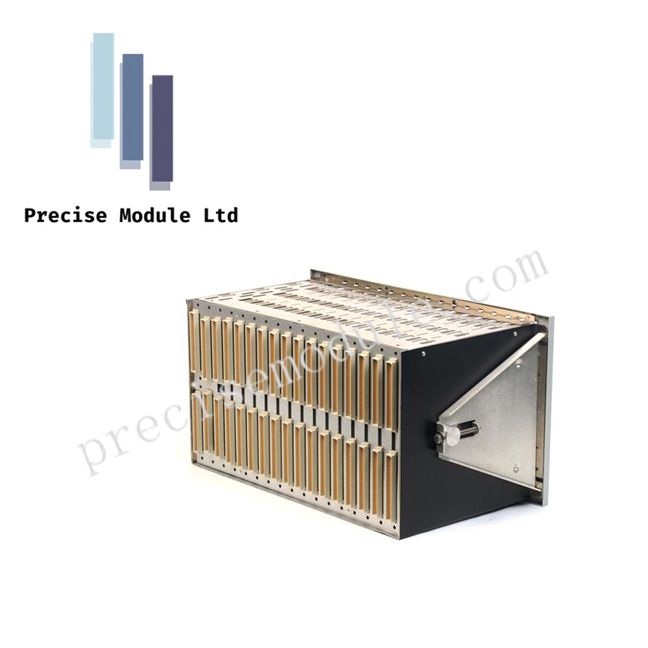

Bently Nevada 3500/05-01-01-00-00-00 Panel Mount System Rack

Product Description

The Bently Nevada 3500/05-01-01-00-00-00 serves as the central chassis for the 3500 Series Machinery Protection System, housing all monitor modules and rack power supplies. It provides a high-speed communication backplane, enabling seamless data exchange between vibration, speed, and temperature monitoring modules while distributing power efficiently.

Key Features

• Supports all 3500 series monitor modules and dual power supply configurations

• Available in two rack sizes:

• Full-Size 19-inch rack with 14 module slots

• Mini-Rack 12-inch rack with 7 module slots

• Mounting options:

• Panel Mount: Secures into panel cutouts, rear access for wiring

• Rack Mount: Fits 19-inch EIA rails, rear access for wiring

• Bulkhead Mount: Front access for installations where rear access is restricted (Mini-Rack not available)

• Hot-swappable modules to reduce maintenance downtime

• Built-in diagnostics for continuous monitoring of rack power and module health

• Compliant with API 670 machinery protection standards

Applications

• Integration into control room consoles for real-time machinery monitoring

• Centralized hub for 3500 series vibration, thrust, and temperature modules

• Redundant power supply support for continuous operation in critical facilities

Comparison with Similar Models

• Mini-Rack vs Full-Size Rack: Mini-Rack is compact with 7 module slots, suitable for localized installations

• Bulkhead Mount: Designed for installations with restricted rear access

• Full-size Panel Mount: Standard configuration for industrial control panels and consoles

Technical Specifications

Part Number Breakdown (3500/05-01-01-00-00-00)

FAQ

Can the rack operate if one power supply fails?
Yes, dual redundant power supplies allow continuous operation during a single source failure.

Are the modules accessible while the rack is powered?
Yes, most modules are hot-swappable depending on configuration.

What environments is the 3500/05 rack designed for?
It is engineered for harsh industrial conditions, resistant to electromagnetic interference and temperature extremes.

Which mounting format should I choose?
Panel Mount is ideal for control room consoles; Bulkhead Mount is suitable where rear access is restricted; Rack Mount fits standard 19-inch EIA rails.
