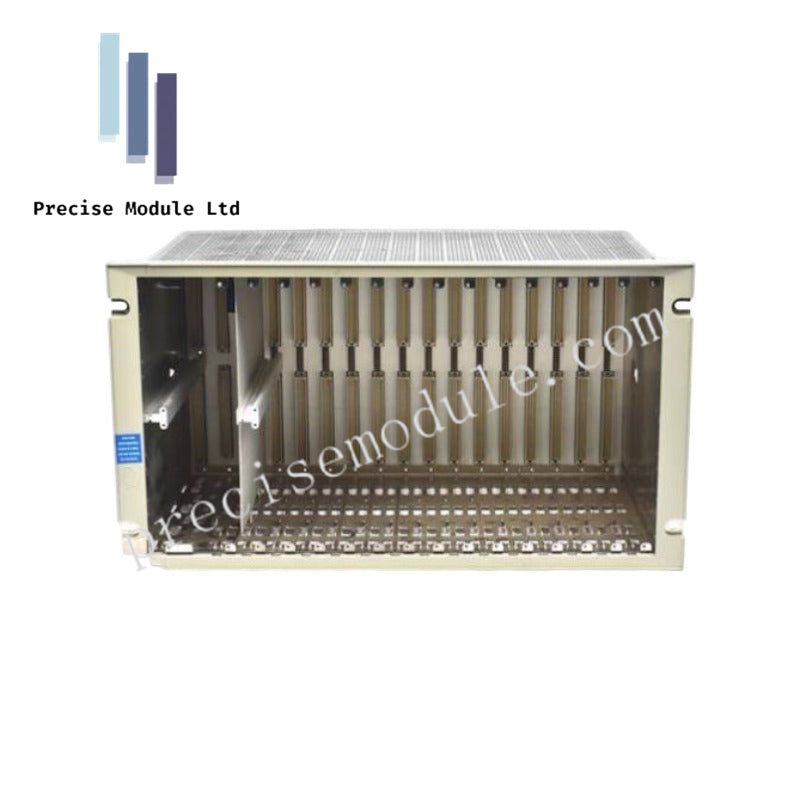

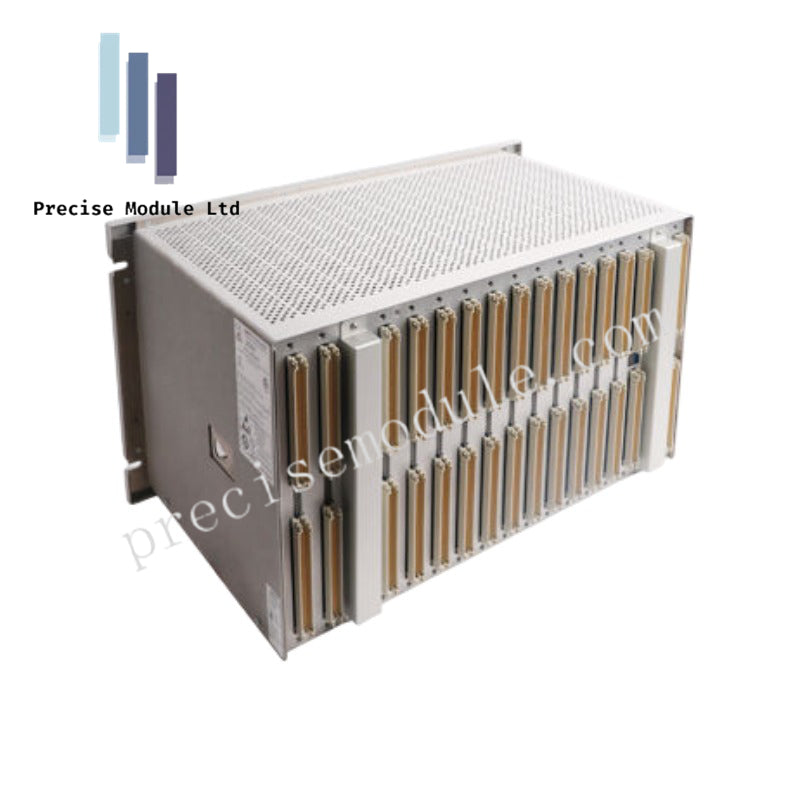

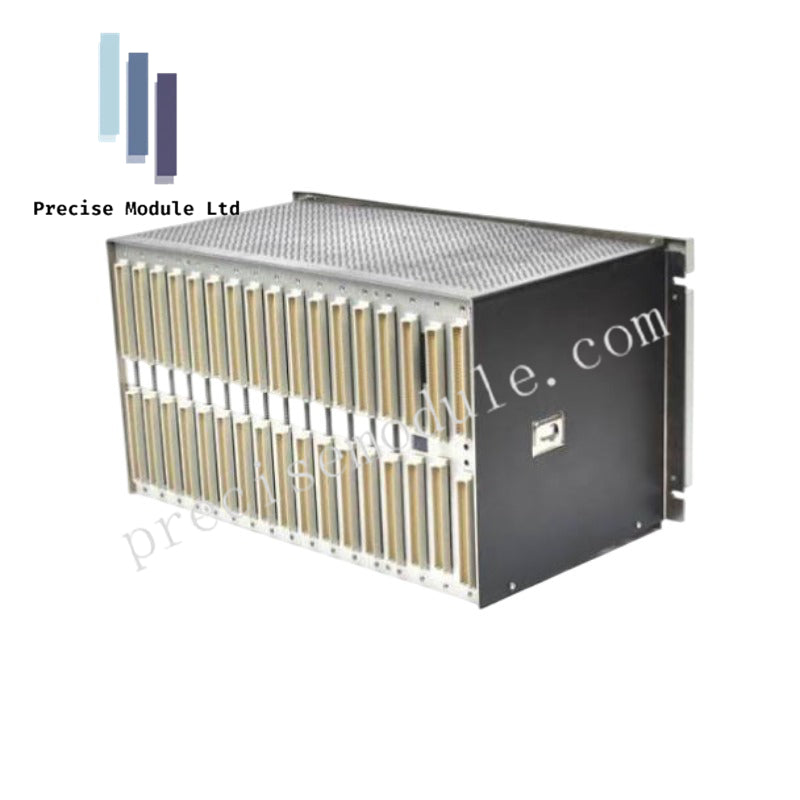

Bently Nevada 3500/05-01-02-05-00-01 System Rack

Bently Nevada 3500/05-01-02-05-00-01 System Rack

The Bently Nevada 3500/05-01-02-05-00-01, also cataloged as the 3500/05 System Rack, operates as a dedicated hardware component for continuous machinery monitoring and protection within 3500 Series platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring and TSI Integration

The Bently Nevada 3500/05 system rack provides the physical infrastructure required for high-density rotor dynamics monitoring. The backplane utilizes specific impedance-controlled paths to facilitate eddy-current probe scaling, which is critical for maintaining measurement accuracy in proximity-based sensing. During system commissioning, technicians must perform gap voltage validation (-10 VDC targets) to verify probe-to-target alignment. The internal backplane layout is optimized for cross-talk suppression, minimizing signal interference between high-speed dynamic channels and low-frequency DC monitoring signals, ensuring compliance with the API 670 standard for machinery protection.

Frequently Asked Questions

Q: Does the rack mount configuration require specific rail types in the cabinet?

A: The chassis is designed for mounting on standard 19-inch EIA rails. Ensure the rails are rated to support the weight of a fully populated rack (including modules and power supplies) and are properly grounded to the cabinet framework.

Q: Is it possible to reconfigure the Rack Mount 3500/05 to Panel Mount in the field?

A: No. The chassis mounting configuration is determined by the internal frame and flange design specific to the order code. Field conversion between rack mount and panel mount is not technically feasible.

Field Installation Guidelines

• Rail Compatibility: Mount the chassis directly to 19-inch EIA standard rails. Ensure the rack is aligned horizontally to allow for smooth insertion and extraction of modules.
• Module Placement: Position the Rack Interface Module (RIM) and redundant power supplies in the mandatory left-most slots to ensure correct bus initialization.
• Shielding and Grounding: Connect the rack grounding lug to a clean, low-impedance instrument earth. All transducer input cables must utilize high-quality shielded twisted-pair wire, with shields terminated according to the specific 3500 I/O module requirements to prevent ground loops.
• Environmental Integrity: Ensure the installation area remains within the specified ambient temperature range of -30 deg C to 70 deg C. Use blanking plates for all empty slots to maintain proper thermal dissipation and prevent debris ingress.
