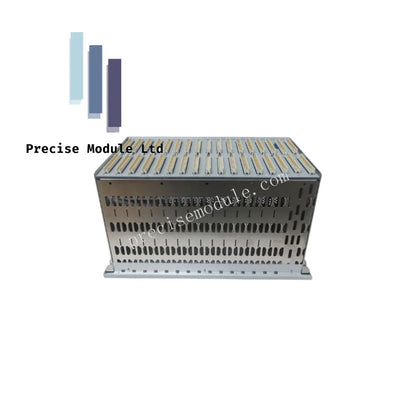

Bently Nevada 3500/05-02-05-00-00-00 System Rack

Bently Nevada 3500/05-02-05-00-00-00 System Rack

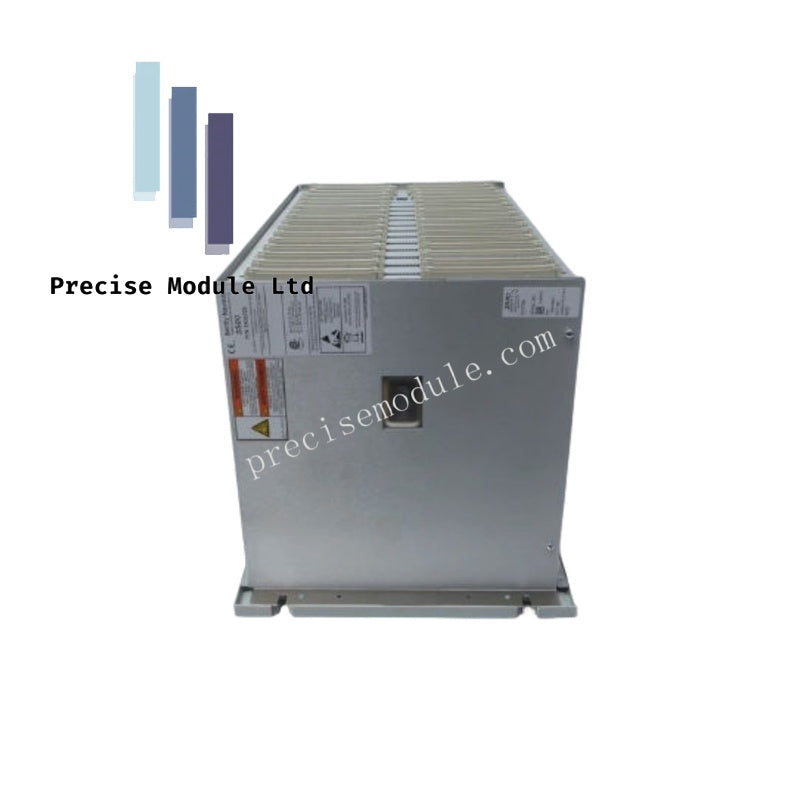

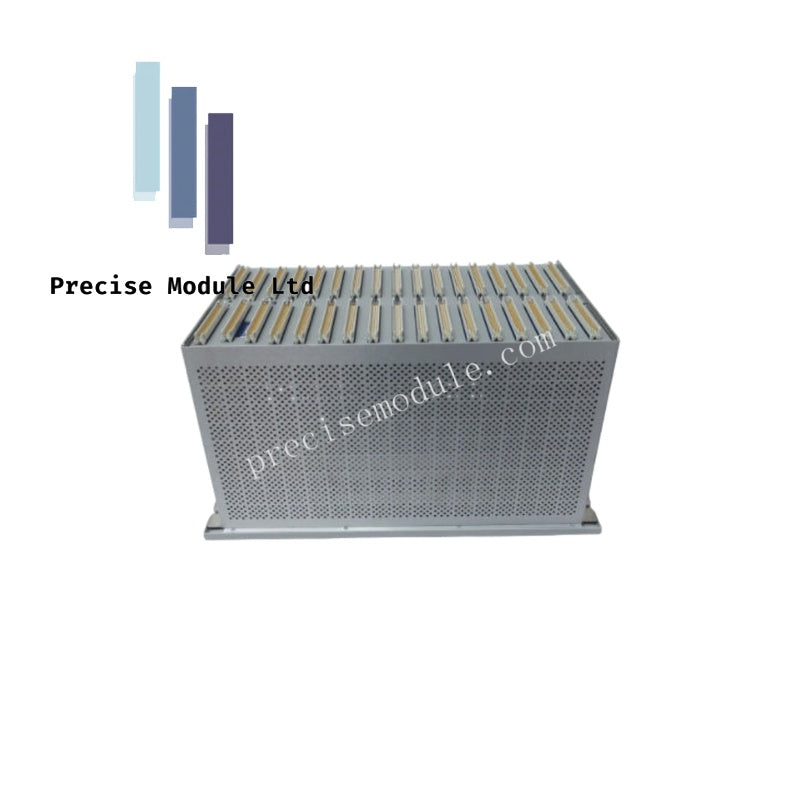

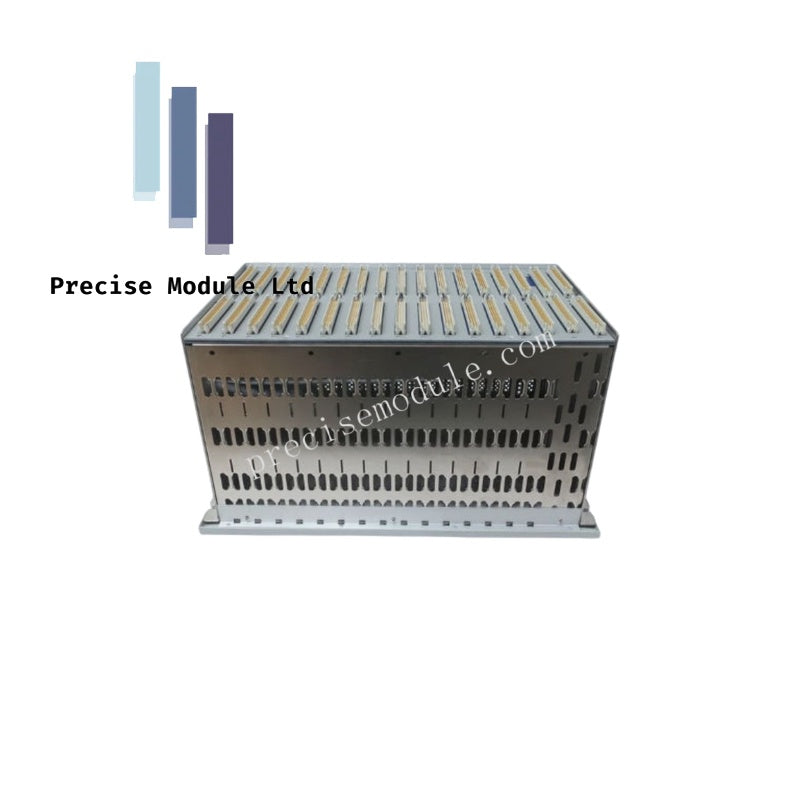

The Bently Nevada 3500/05-02-05-00-00-00, also cataloged as the 3500/05 Mini-Rack, operates as a dedicated hardware component for continuous machinery monitoring and protection within 3500 Series platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring and TSI Integration

The Bently Nevada 3500/05 Mini-Rack provides the physical infrastructure for rotor dynamics data acquisition in space-limited monitoring cabinets. The backplane is designed to maintain precise impedance levels, facilitating eddy-current probe scaling essential for accurate vibration signal processing. During commissioning, technicians must perform gap voltage validation (-10 VDC targets) to confirm proper probe-to-target alignment. The compact 7-slot backplane architecture incorporates advanced cross-talk suppression to maintain high signal-to-noise ratios, effectively isolating sensitive dynamic measurement channels from power distribution and communication bus noise.

Frequently Asked Questions

Q: Can this Mini-Rack be converted to a panel-mount configuration in the field?

A: No. The mounting configuration of the 3500/05 is determined by the chassis mechanical structure at the time of manufacture. Field conversion between rack mount and panel mount is not supported.

Q: What is the primary restriction for slot usage in the 7-slot Mini-Rack?

A: The power supplies and the Rack Interface Module (RIM/TDI) must be installed in the designated far-left rack positions. The remaining 7 slots are then available for any combination of monitor or relay modules.

Field Installation Guidelines

• Rail Compatibility: This rack is designed for installation on standard 19-inch EIA cabinet rails. Ensure the cabinet rails are properly grounded and rated to support the weight of the fully populated chassis.
• Rear Access Requirement: Since this is a rack-mount configuration, verify that there is adequate clearance behind the cabinet rails to access the rear of the rack for wiring connections and I/O module installation.
• Shielding and Grounding: Connect the rack grounding lug to a clean, low-impedance instrument earth. All transducer input cables must utilize high-quality shielded twisted-pair wire, with shields terminated according to the specific 3500 I/O module requirements to prevent ground loops.
• Environmental Integrity: Ensure the installation area remains within the specified ambient temperature range of -30 deg C to 70 deg C. Use blanking plates for all unoccupied slots to maintain proper thermal dissipation and prevent debris ingress into the backplane connectors.
