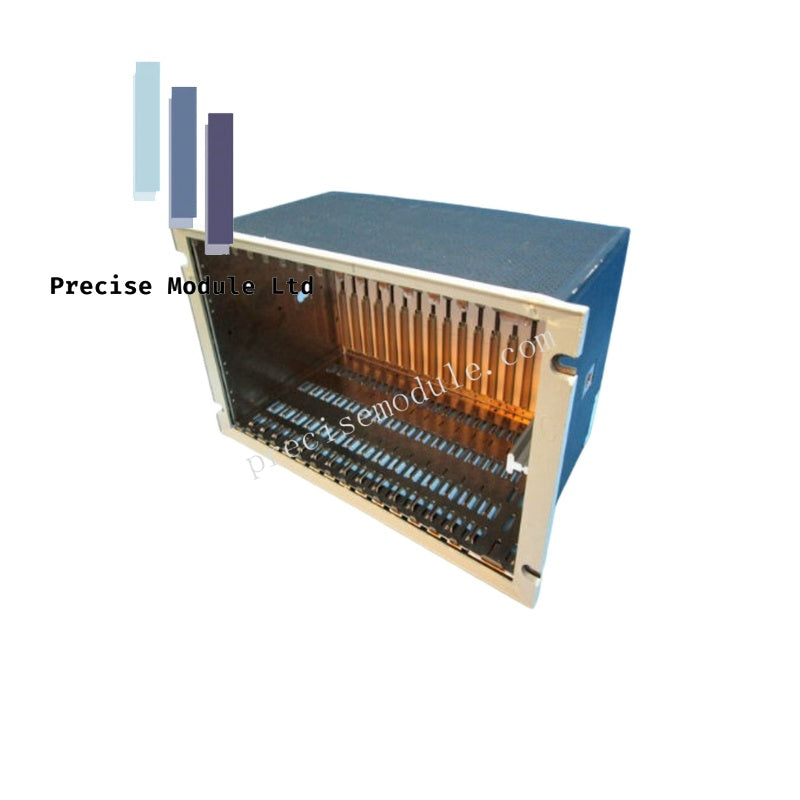

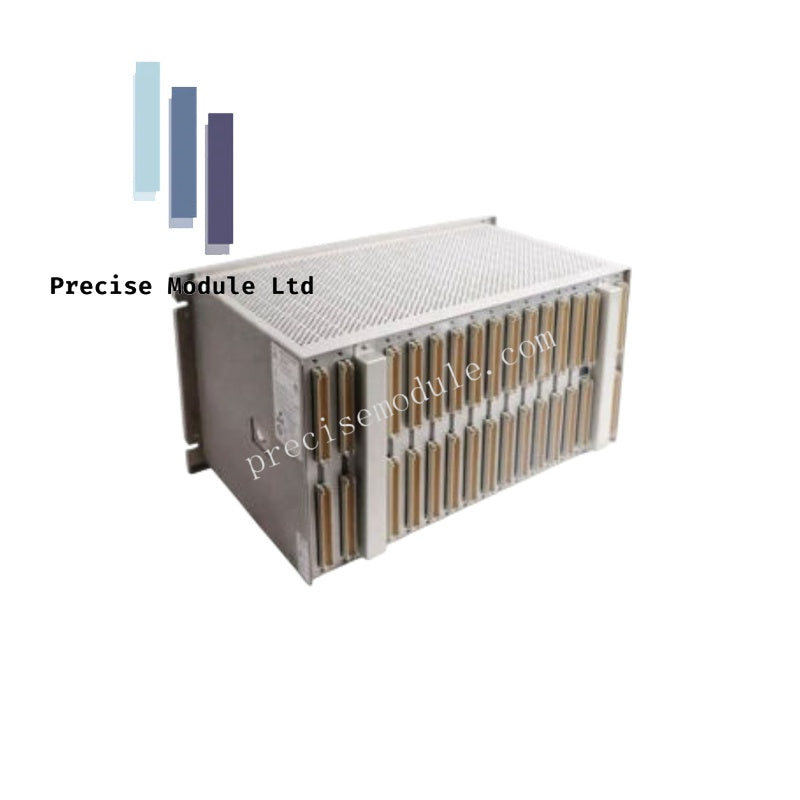

Bently Nevada 3500/05-02-05-00-00-01 12-inch Mini-Rack System Rack

Bently Nevada 3500/05-02-05-00-00-01 12-inch Mini-Rack System Rack

The Bently Nevada 3500/05-02-05-00-00-01, also cataloged as the 3500/05 12-inch Mini-Rack System Rack, operates as a dedicated hardware component for mounting monitor modules and power distribution within Bently Nevada 3500 Machinery Protection System platforms.

Hardware Specifications

Eddy-current Monitoring Rack Integration and System Communication

The 3500/05-02-05-00-00-01 Mini-Rack provides the mechanical mounting structure and module interconnection platform for Bently Nevada 3500 monitoring hardware. The rack supports installation of monitor modules, rack interface modules, and power supplies required for system operation.

The 12-inch Mini-Rack configuration provides seven available module slots for 3500 series modules. The power supply and rack interface module occupy the far-left rack positions, while the remaining rack positions are available for compatible monitoring modules.

The rack architecture allows installed 3500 modules to communicate within the same protection system assembly while distributing power to individual modules. The rack mount format is designed for installation on standard 19-inch EIA cabinet rails with rear access for wiring connections and I/O modules.

Frequently Asked Questions

Q: How many module slots are available on the 3500/05 Mini-Rack?
A: The 12-inch Mini-Rack provides seven available module slots for compatible 3500 series modules.

Q: Where must the power supply and rack interface module be installed?
A: The power supply and rack interface module must occupy the far-left rack positions.

Q: What cabinet standard is supported by this rack mounting configuration?
A: The rack mount version is designed for installation on standard 19-inch EIA cabinet rails.

Field Installation Guidelines

Install the 3500/05 Mini-Rack on compatible 19-inch EIA cabinet rails and verify mechanical fastening before installing monitoring modules. Maintain correct module positioning according to the rack layout requirements.

Install the power supply and rack interface module in the designated left-side positions. Confirm that all installed modules are fully seated and mechanically secured before system power application.

Route rack wiring and I/O connections separately from high-current power cables and switching circuits. Apply site grounding practices for cabinet bonding and signal cable shielding.

Verify module communication, power distribution, and rack configuration through the applicable 3500 system configuration procedure before commissioning.
