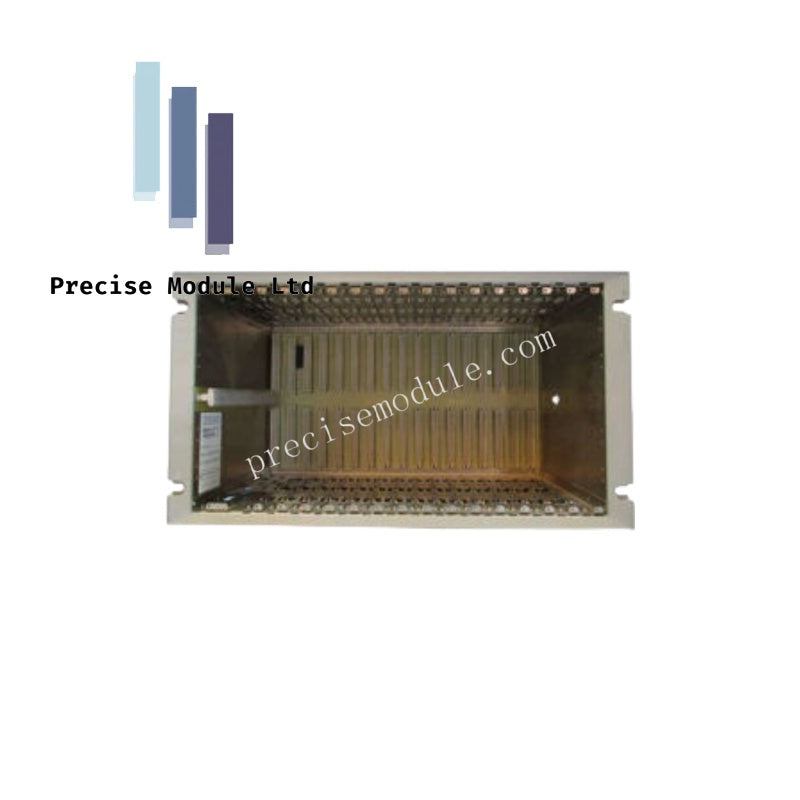

Bently Nevada 3500/05-02-05-00-00-01 System Rack

Bently Nevada 3500/05-02-05-00-00-01 System Rack

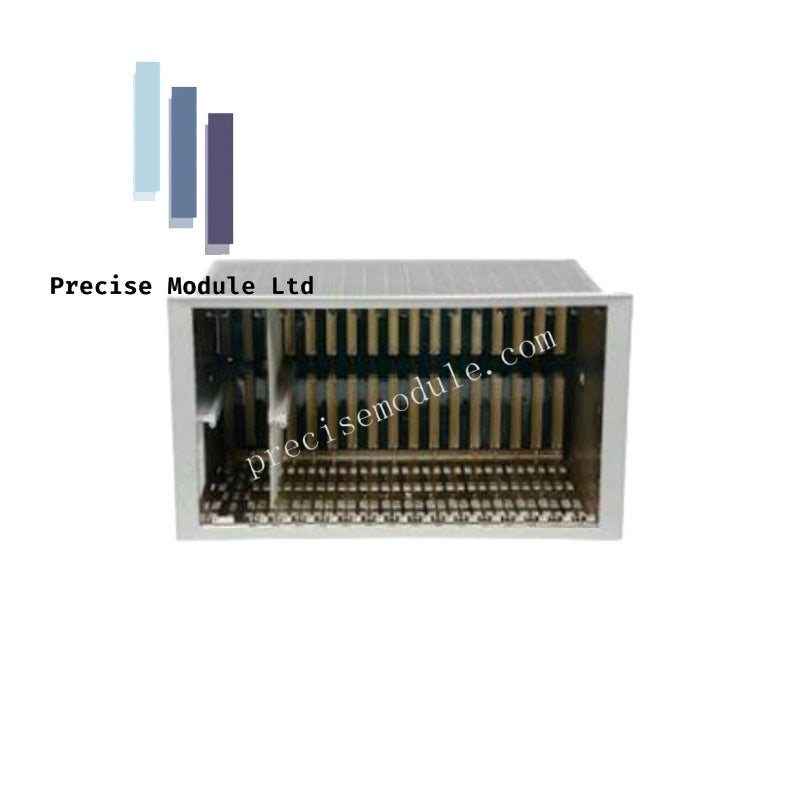

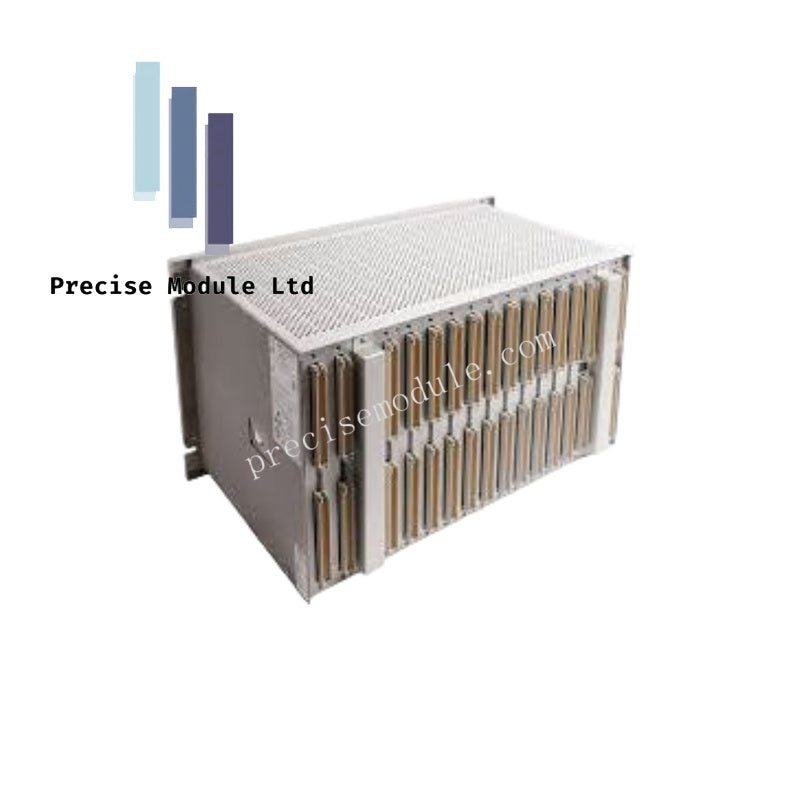

The Bently Nevada 3500/05-02-05-00-00-01, also cataloged as the 3500/05 System Rack, operates as a dedicated hardware component for continuous online machinery monitoring within the 3500 Machinery Protection System network.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring and Rotor Dynamics Compatibility

The 3500/05 rack serves as the chassis for rotor dynamics data acquisition and signal processing. It facilitates direct interfacing for eddy-current probe scaling by providing the backplane communication required for gap voltage validation against -10 VDC targets. The architecture supports internal signal routing for cross-talk suppression between high-density monitor channels, ensuring signal integrity for proximity and seismic sensors. Integration of the Transient Data Interface (TDI) module within this rack allows for high-speed waveform capture and synchronized sampling across multiple slots.

Frequently Asked Questions

Q: What are the constraints for module installation within the 7-slot mini-rack? A: The 3500/05 rack requires the 3500/15 Power Supply, 3500/22M Transient Data Interface (TDI), and specific I/O modules to be present. Users must ensure that total power draw does not exceed the capacity of the installed power supply modules.

Q: Is this hardware compatible with live module replacement? A: The 3500 system architecture supports hot-swapping of monitor modules during operation, provided the backplane power is maintained by the redundant or single power supply configuration.

Field Installation Guidelines

• Cabinet Mounting: Secure the 3500/05 rack into a standard 19-inch EIA cabinet using the provided mounting flanges. Ensure sufficient clearance for airflow and cable management.
• Grounding: Connect the rack chassis to a dedicated high-integrity instrument ground. The rack must maintain electrical continuity with the cabinet mounting rails to prevent ground loops.
• Wiring: Route signal cables and power supply lines through separate cable trays to mitigate electromagnetic interference. Utilize shielded twisted-pair cabling for all sensor inputs to maintain signal-to-noise ratios.
• I/O Termination: Verify all I/O module field wiring is properly terminated and documented. Confirm that intrinsic safety barriers or galvanic isolators are installed in the signal path when operating in hazardous environments.
