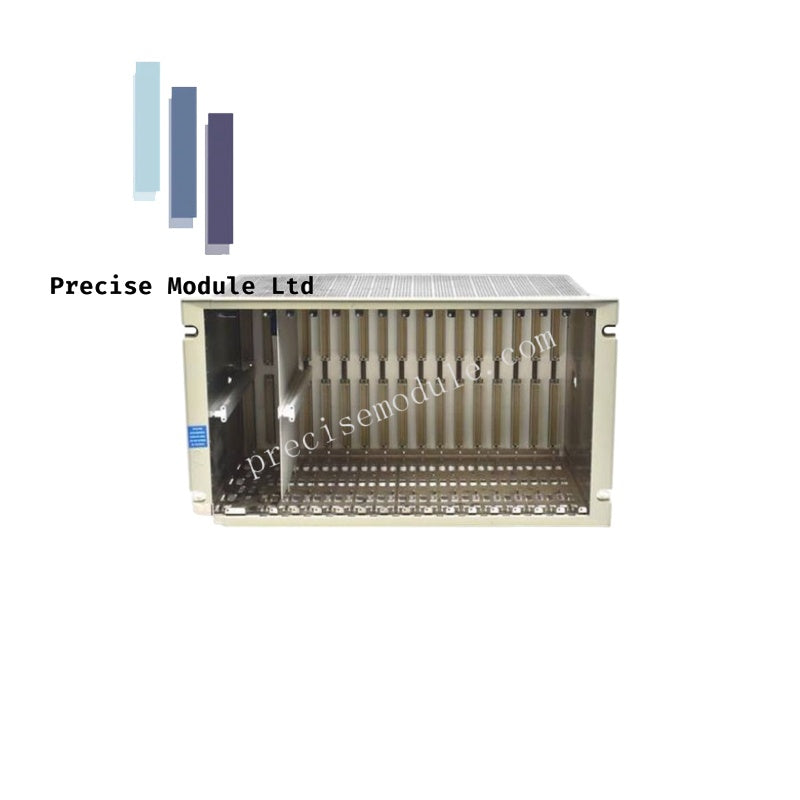

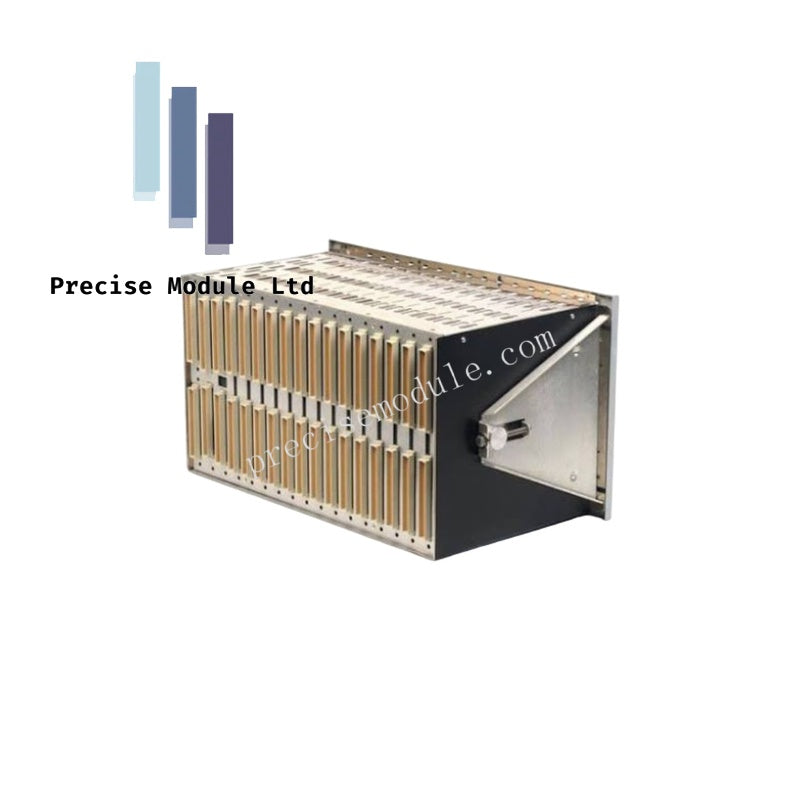

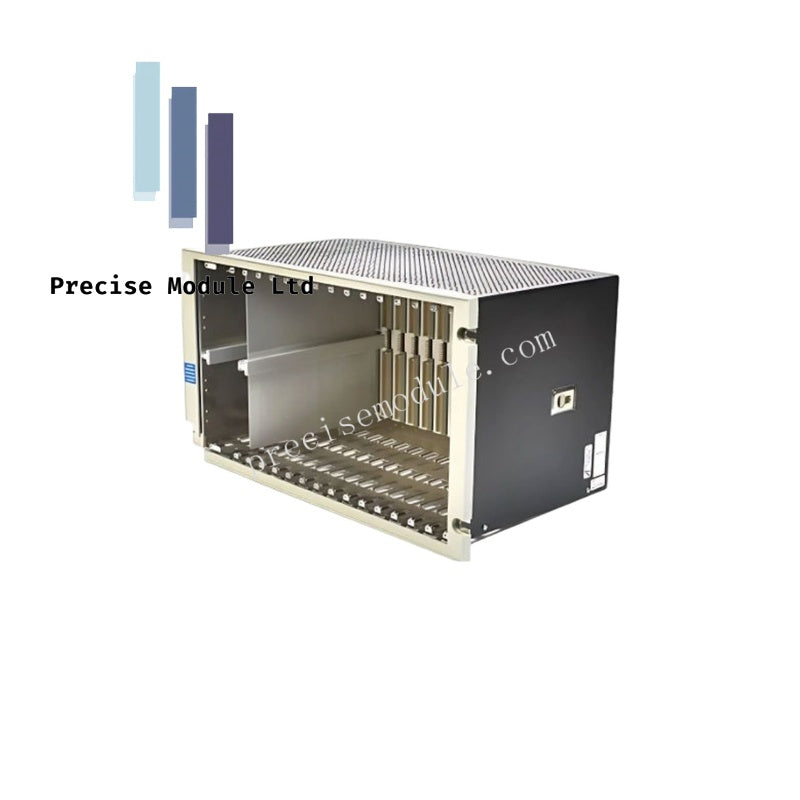

Bently Nevada 3500/05 System Rack

Bently Nevada 3500/05 System Rack

Configured for infrastructure support in Machinery Protection System networks, the Bently Nevada 3500/05 (3500/05 System Rack) provides direct physical/electrical execution for module housing and backplane signal distribution.

Hardware Specifications

Mechanical Monitoring and TSI Integration

The Bently Nevada 3500/05 chassis functions as the primary backplane interconnect for proximity transducer systems. Precise eddy-current probe scaling requires stable electrical references established through the rack backplane to ensure accurate gap voltage validation (-10 VDC targets). The rack architecture supports high-speed data transmission necessary for complex rotor dynamics analysis, ensuring that monitoring modules maintain signal integrity. Proper grounding and cross-talk suppression techniques within the rack layout are mandatory to prevent interference in high-sensitivity vibration measurement loops.

Frequently Asked Questions

Q: Does the 3500/05 Mini-Rack support hot-swapping of modules?

A: Yes, the 3500 system architecture is designed to support the removal and insertion of monitor modules under power without interrupting the operation of other modules in the rack.

Q: Are there specific slot requirements for the Rack Interface Module (RIM)?

A: Yes, the Power Supplies and the Rack Interface Module must occupy the dedicated slots on the far left of the rack to ensure correct backplane bus communication and power distribution.

Field Installation Guidelines

• Mounting Stability: Ensure the rack is securely fastened to the 19-inch EIA cabinet rails. Verify that the mounting surface is rigid to prevent mechanical resonance that could affect sensitive vibration readings.
• Grounding: Connect the rack chassis ground stud to a high-integrity instrument earth. Use low-impedance copper conductors to minimize potential differences across the system.
• Slot Configuration: Verify the placement of power supplies and the RIM in the left-most slots before installing signal processing modules. Ensure all unused slots are covered with appropriate blanking panels to maintain proper internal airflow and electromagnetic shielding.
• Wiring: Maintain physical separation between signal-level wiring (transducer inputs) and power distribution cabling to minimize induction noise.
