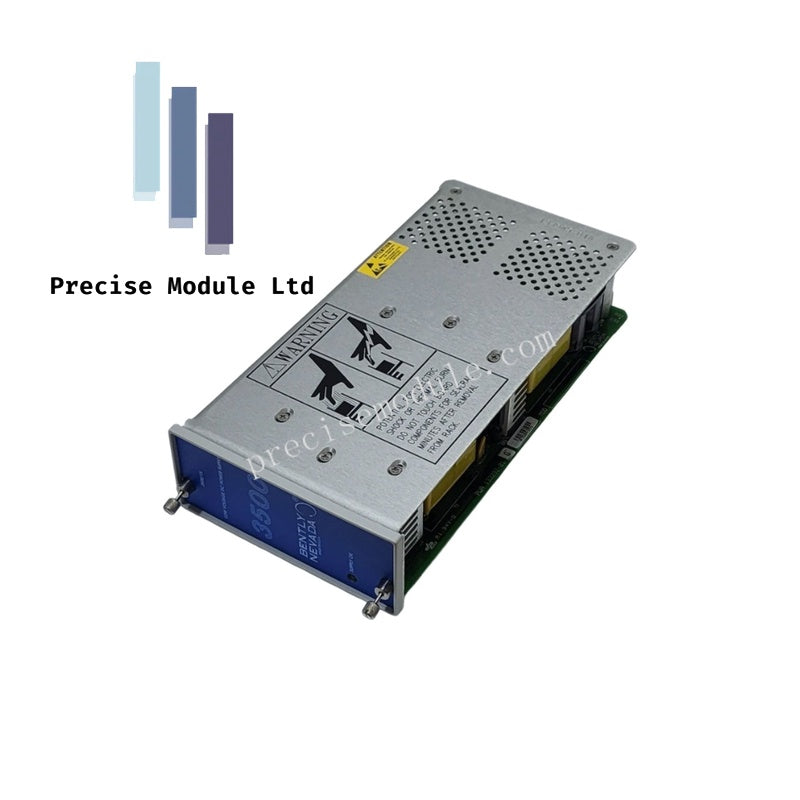

The Bently Nevada 3500/15 133292-01, also cataloged as the 3500/15 Legacy Low Voltage DC Power Supply Module, operates as a dedicated hardware component for power distribution and voltage conversion within 3500 Machinery Protection System platforms.

Hardware Specifications

Mechanical Monitoring and Rotor Dynamics Compatibility

The 3500/15 legacy module provides regulated DC power essential for maintaining stability in rotor dynamics monitoring. By ensuring a low-noise voltage supply, this module supports precise gap voltage validation (-10 VDC targets) for installed proximity sensors. It is engineered to minimize electrical ripple, which prevents interference with eddy-current probe scaling and maintains consistent signal-to-noise ratios. The module contributes to overall system cross-talk suppression by providing a clean, isolated power feed to the rack backplane, ensuring reliable waveform capture for rotating machinery.

Frequently Asked Questions

Q: Is the 133292-01 module compatible with standard 3500 rack power slots?

A: Yes, this is a half-height module designed to fit the designated power supply slots on the left side of the 3500 rack. It is fully compatible with the standard rack backplane architecture.

Q: Does this module support redundant power configurations?

A: Yes, it supports dual power supply setups. If two modules are installed, the lower slot functions as the primary supply and the upper slot as the backup. The system allows for hot-swapping the backup unit without interrupting rack operations.

Field Installation Guidelines

• Slot Configuration: This unit must be installed in the primary or backup power supply slots located on the left side of the 3500 instrument rack.
• Mechanical Integrity: Secure the module using the front panel fasteners to ensure proper contact with the rack's grounding mechanism, essential for mitigating electromagnetic interference.
• Vibration Compliance: Given the module's 5 g vibration resistance rating, ensure the 3500 rack is mounted in an area free from excessive continuous structural vibration that exceeds these limits.
• Environmental Control: Maintain the operating temperature between -30 deg C and +65 deg C. Ensure the installation area complies with the 5-95% non-condensing humidity specification to protect sensitive electronic components from moisture-related faults.
