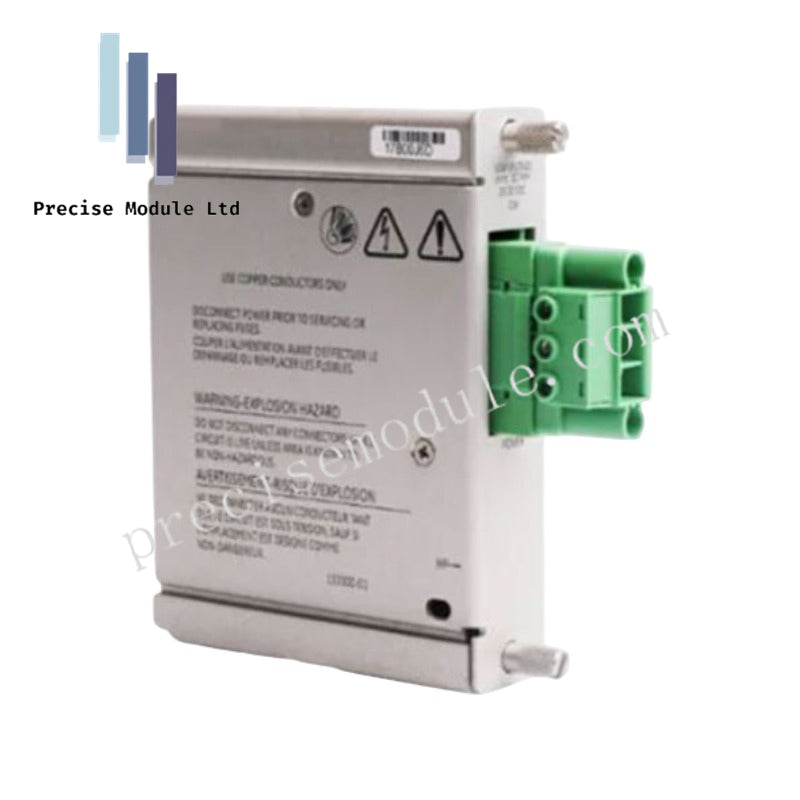

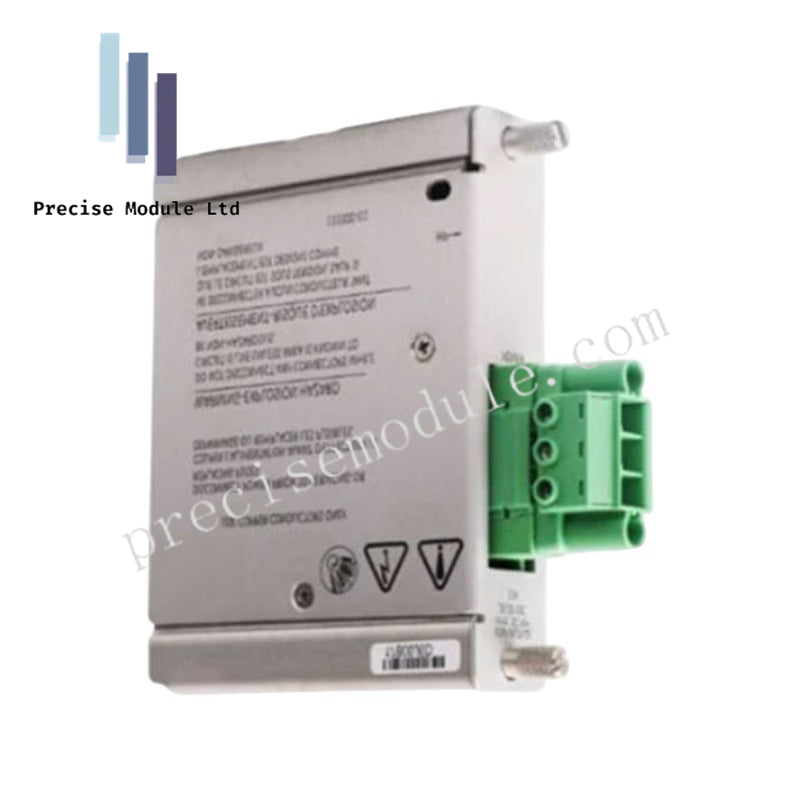

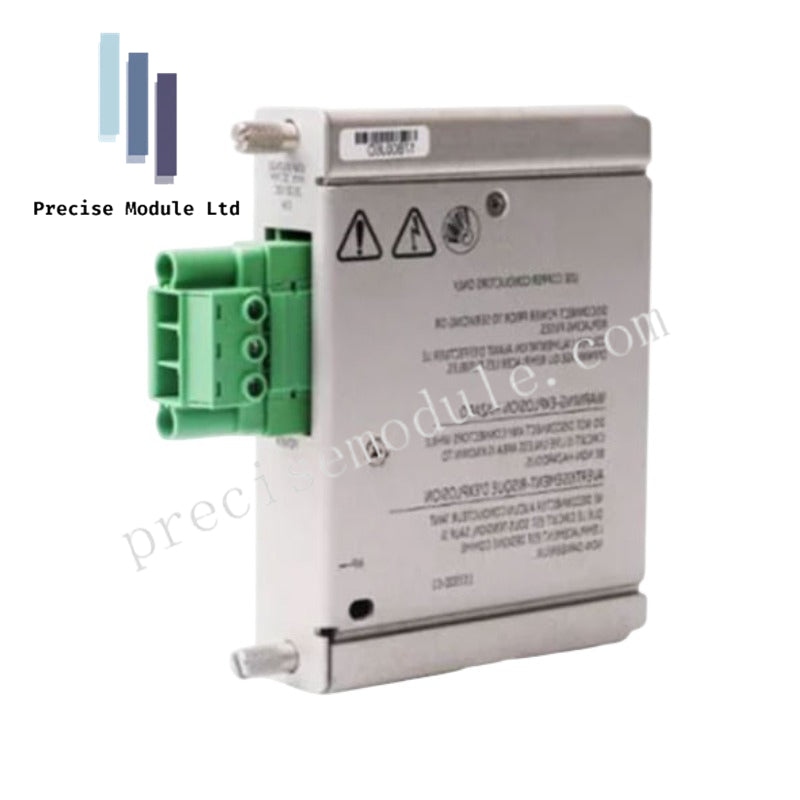

The Bently Nevada 3500/15 133300-01, also cataloged as the 3500/15 Low Voltage DC Power Input Module, operates as a dedicated hardware component for power regulation and input distribution within 3500 Machinery Protection System platforms.

Hardware Specifications

Mechanical Monitoring and Rotor Dynamics Compatibility

The 3500/15 input module serves as a critical interface for providing regulated DC power to the 3500 rack, directly influencing the stability of rotor dynamics data acquisition. It ensures that the conditioned voltage supplied to the backplane maintains strict adherence to gap voltage validation (-10 VDC targets) required for high-accuracy proximity transducer operation. By stabilizing the input voltage, this module reduces signal noise that could otherwise compromise eddy-current probe scaling, thereby ensuring that the monitoring system captures precise, reliable vibration data for rotating machinery analysis.

Frequently Asked Questions

Q: Is this module intended for use as a standalone power supply or an input module?

A: The 133300-01 is specifically an input module component designed for the 3500/15 power supply assembly. It must be paired with the appropriate power supply module to facilitate rack-wide power distribution.

Q: Can this module be installed in any slot within the 3500 rack?

A: No. Like all 3500/15 series power components, it must be installed in the designated power supply slots located on the far left side of the instrument rack.

Field Installation Guidelines

• Slot Positioning: Install the module exclusively in the designated left-hand power supply slots of the 3500 rack.
• Mechanical Installation: Slide the module into the backplane guide rails until it reaches the connector. Fasten the front panel screws securely to ensure electrical ground contact with the chassis.
• Operational Environment: Maintain an ambient operating temperature between -30 deg C and +65 deg C. Ensure the installation cabinet prevents condensation, keeping humidity levels within the specified 95% non-condensing limit.
• Maintenance: If the rack is configured for redundant power, the module may be replaced while the system is powered, provided the secondary power supply remains active to support the load.
