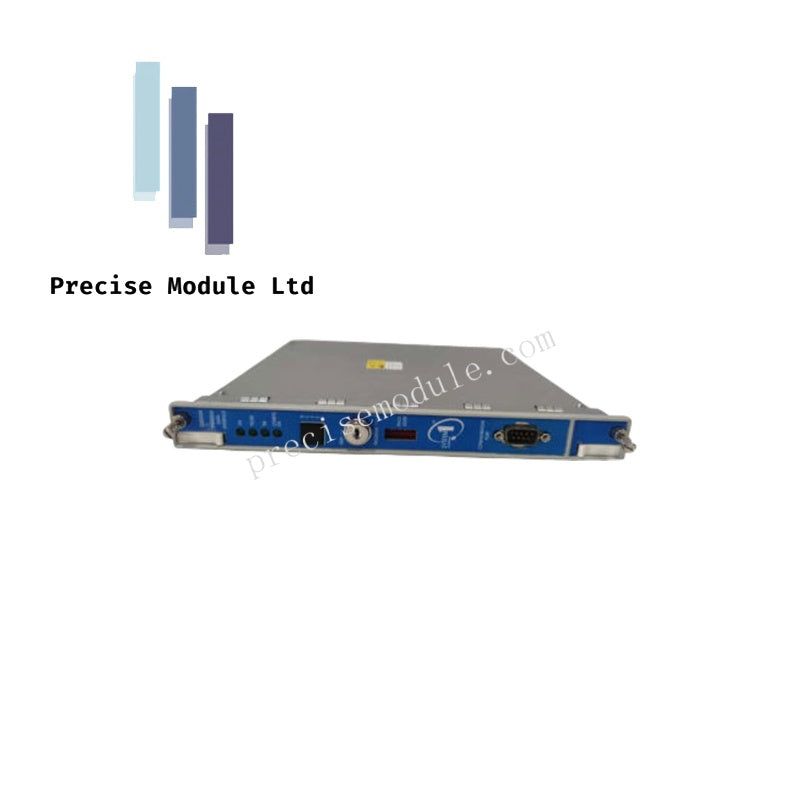

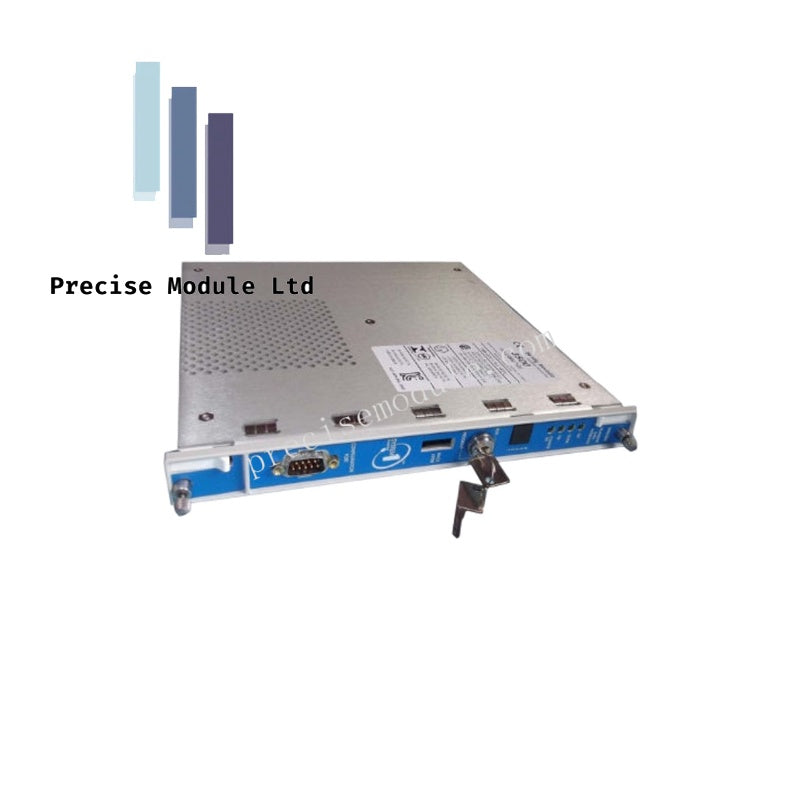

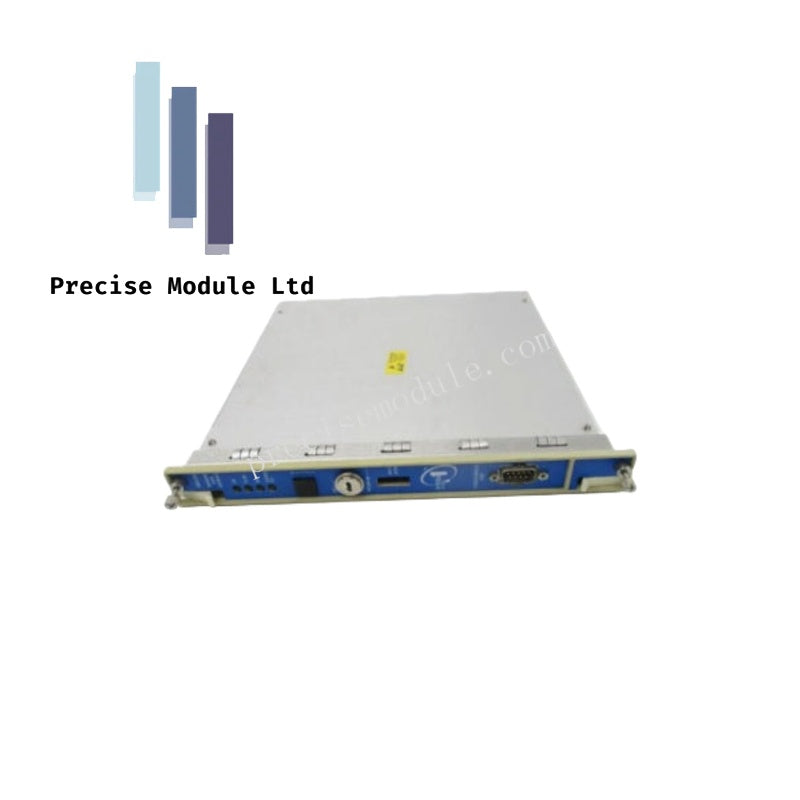

Configured for steady state and transient dynamic waveform data collection in 3500 Series Machinery Protection Systems, the Bently Nevada 3500/22M 138607-01 (3500/22M Transient Data Interface) provides direct physical/electrical execution.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Integration

The 3500/22M 138607-01 acts as the communication link to continuously collect static and transient dynamic parameters from downstream M series monitors. During eddy-current probe scaling verification, the module facilitates the collection of raw waveform telemetry essential for evaluating rotor dynamics behaviors such as shaft centerline motion and orbits. Grounded cross-talk suppression and digital isolation maintain the clarity of phase reference signals and gap voltage validation targets during high-amplitude machine transients, allowing high-resolution data capture without influencing the independent hardware shutdown loop.

Frequently Asked Questions

Q: Does a failure or removal of the 3500/22M 138607-01 impact the machinery protection functions of the rack?

A: No. The module resides outside the critical monitoring protection path. Its extraction or loss of power does not interrupt or degrade the automatic machinery shutdown loops driven by adjacent monitoring cards.

Q: What is required to activate high-resolution dynamic and transient data capture on this unit?

A: Static data capture is fully standard within the factory hardware configuration. Enabling continuous high-resolution transient and dynamic waveform data collection requires the application of an optional external Channel Enabling Disk activation file.

Q: What is the peak current rating for the front panel Trip Multiply input interface?

A: The Trip Multiply circuit requires a dry contact interface connected to system common, pulling a maximum current of less than 1 mAdc during continuous activation.

Field Installation Guidelines

1. The module must be installed solely in the designated slot directly adjacent to the 3500 power supplies. Ensure alignment slots are matched before applying physical pressure.
2. Tighten all rear chassis terminal fasteners and front faceplate panel screws to standard specification lines to maintain electrical chassis bonding.
3. Keep external communication Ethernet runs separated from high-voltage motor or actuator conduits to mitigate parasitic electromagnetic interference. All field transducer shields must maintain single-point termination grounding protocols to prevent internal signal disruption.
