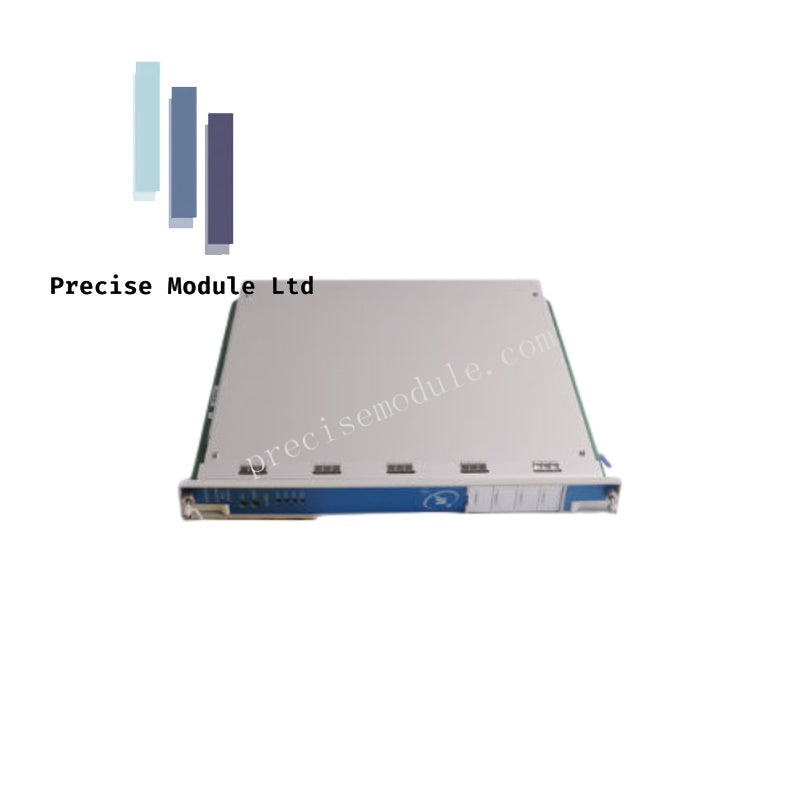

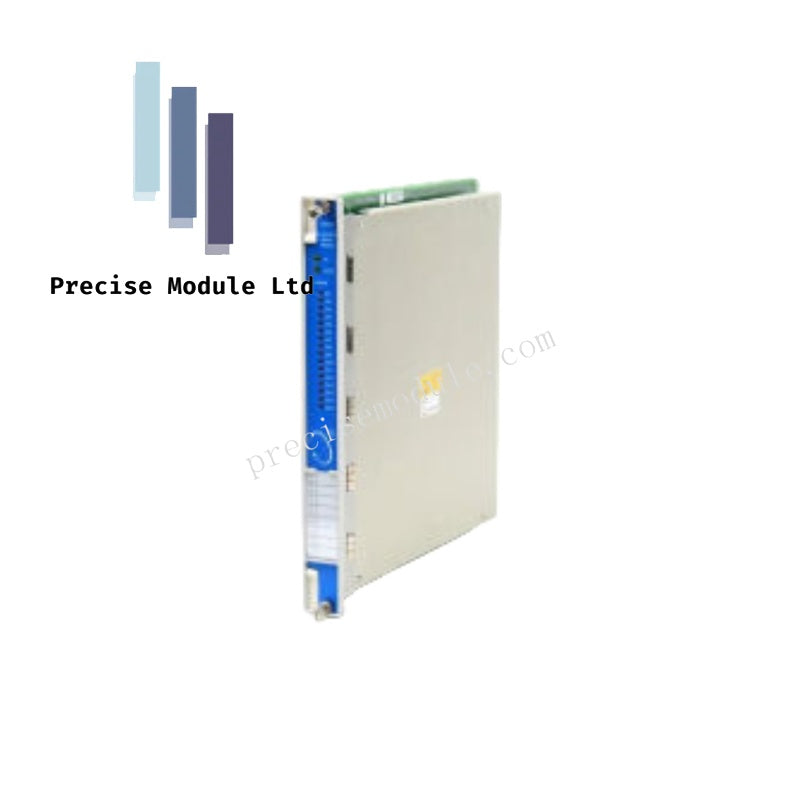

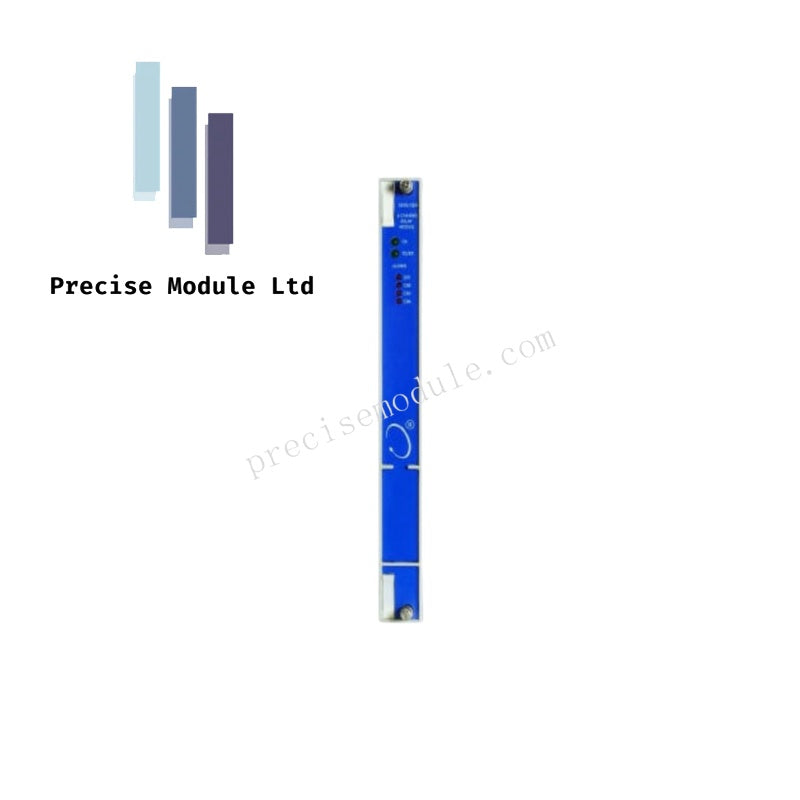

Bently Nevada 3500/32M 149986-02 4-Channel Relay Module

Bently Nevada 3500/32M 149986-02 4-Channel Relay Module

The Bently Nevada 3500/32M 149986-02, cataloged as the 4-Channel Relay Module, operates as a dedicated output component designed to provide discrete relay switching outputs for machinery alarm conditions and emergency shutdown actions within 3500 Machinery Protection System platforms.

Hardware Specifications

Rotor Dynamics and Transient Data Interface Scaling

Operating as part of the critical machinery protection path, this 4-channel relay module interfaces directly with monitor cards to execute programmed voting logic, alert notifications, and danger trip commands. Each SPDT relay features epoxy sealing and built-in arc suppression to maintain reliability in heavy industrial environments. The module responds to channel status changes across the rack backplane, safely switching external alarm horns, lights, or emergency shutdown circuits when vibration, thrust, or temperature parameters exceed configured thresholds.

Frequently Asked Questions

• Q: What type of relays are utilized on the Bently Nevada 3500/32M 149986-02 module?
  • A: The module incorporates single-pole, double-throw (SPDT) epoxy-sealed relays equipped with standard arc suppressors.
• Q: Does this relay module participate in the critical machine protection loop?
  • A: Yes, it acts directly on alarm and danger voting logic from monitor cards to execute vital plant safety interlocks and shutdown routines.

Field Installation Guidelines

• Slot Placement: Insert the 3500/32M 149986-02 module into the designated front-rack relay slot, ensuring complete alignment with its matching rear I/O termination module.
• Wiring and Termination: Terminate external control and trip circuit wiring securely to the rear I/O terminals, utilizing appropriate wire gauges to handle switched currents up to 2 A.
• System Verification: Test relay actuation logic and verify contact closure states via System 1 configuration software prior to placing the machinery train into active service.
