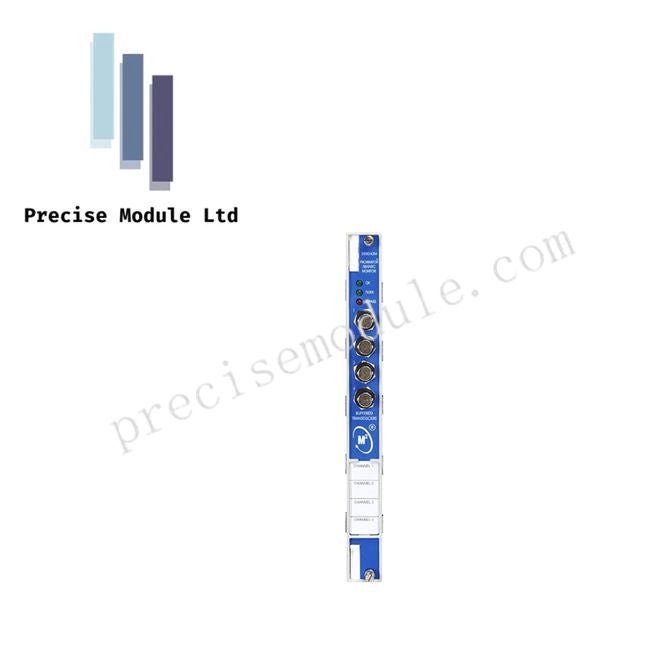

Bently Nevada 3500/40M 176449-01 Proximitor Monitor for Machinery Protection

Product Description

Overview
The Bently Nevada 3500/40M 176449-01 Proximitor Monitor is a robust and precise solution for continuous vibration and shaft position monitoring in industrial machinery. Engineered for reliability, it provides critical operational data across turbines, compressors, pumps, fans, and motors, supporting preventive maintenance and reducing unplanned downtime.

Technical Features

• Four-Channel Monitoring: Supports comprehensive vibration and displacement analysis.

• Proximity Transducer Compatibility: Works with Bently Nevada proximity sensors for accurate signal acquisition.

• Signal Conditioning: Prepares input signals to generate high-fidelity vibration and position measurements.

• Alarm Functions: User-programmable alarm thresholds for safeguarding critical equipment.

• Data Output: Delivers essential machine health information to operators and maintenance systems.

Functional Capabilities

• Radial Vibration Detection: Identifies shaft misalignment, imbalance, and bearing deterioration.

• Eccentricity Measurement: Detects rotor defects and shaft misalignment via precise eccentricity readings.

• REBAM (Relative Eccentricity Bearing Analysis Method): Patented bearing assessment technology for early wear detection.

• Thrust Position Monitoring: Monitors axial bearing load to prevent misalignment and wear.

• Differential Expansion Monitoring: Detects thermal distortions and potential casing issues.

Applications

• Turbines: Real-time monitoring ensures safe and efficient turbine operation.

• Compressors: Early detection of vibration issues reduces downtime and improves reliability.

• Pumps: Monitors vibration and position to prevent cavitation and bearing wear.

• Fans: Detects imbalance or blade damage, maintaining proper airflow.

• Motors: Monitors shaft alignment and bearing conditions to extend asset life.

Benefits

• Proactive machinery protection reduces risk of catastrophic failures.

• Continuous monitoring enables predictive maintenance and operational optimization.

• Early detection lowers maintenance costs and unplanned downtime.

• Enhances workplace safety by reducing machinery-related incidents.

Technical Specifications

• Channels: 4

• Compatible Probes: Bently Nevada proximity transducers

• Alarm Types: User-programmable thresholds

• Measurement Types: Radial vibration, shaft eccentricity, thrust position, differential expansion

• Signal Conditioning: Integrated

• Operating Environment: Industrial temperature and vibration resilient

FAQ
Q: Can this monitor work with all Bently Nevada 3300 Series probes?
A: Yes, it is fully compatible with Bently Nevada 3300 Series proximity transducers.

Q: Is this suitable for high-temperature machinery environments?
A: Yes, it is designed for industrial conditions including elevated temperature and vibration.
