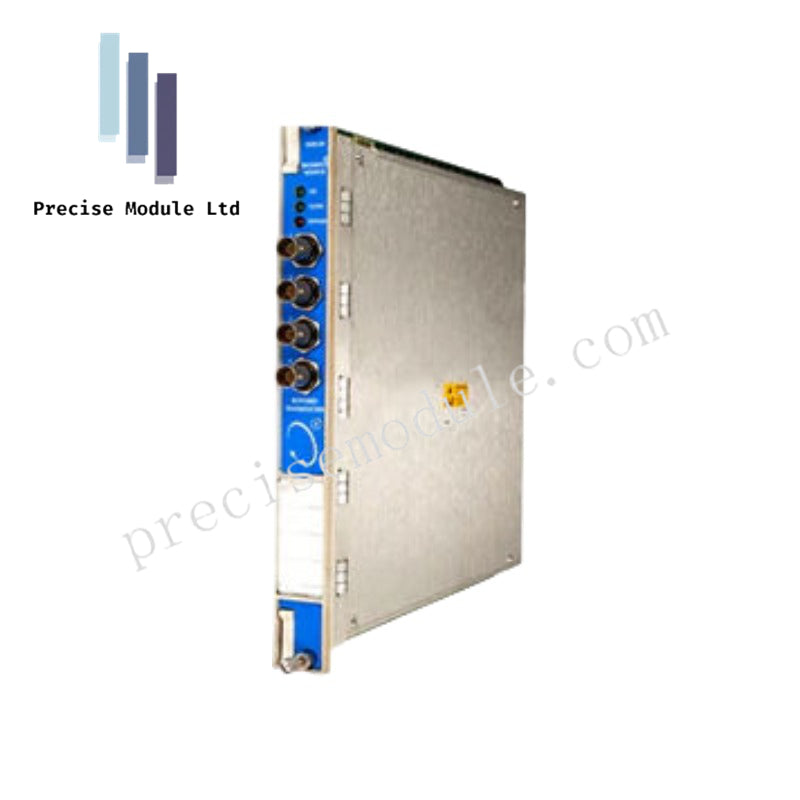

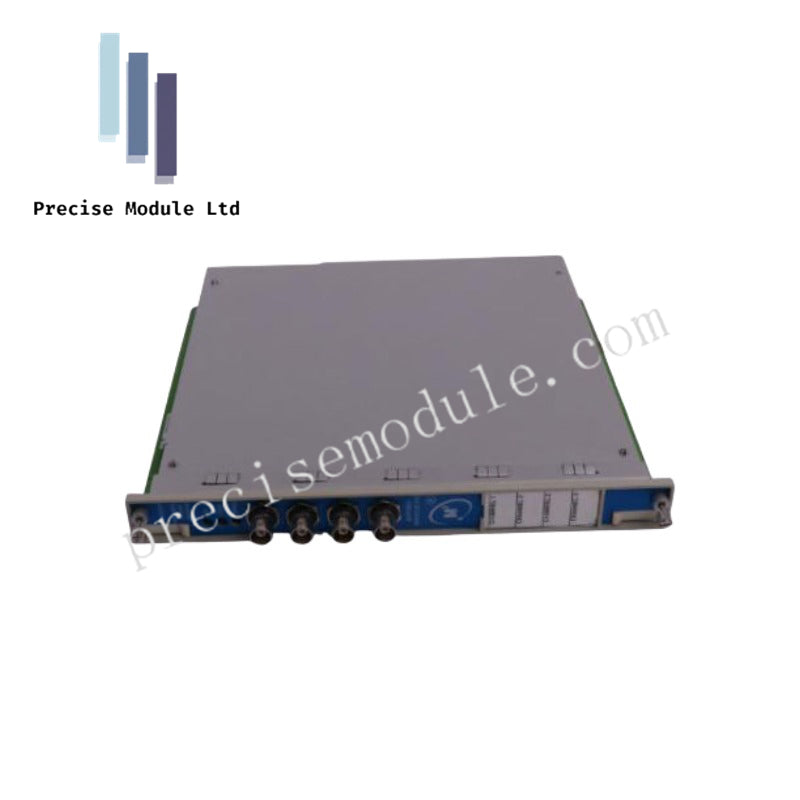

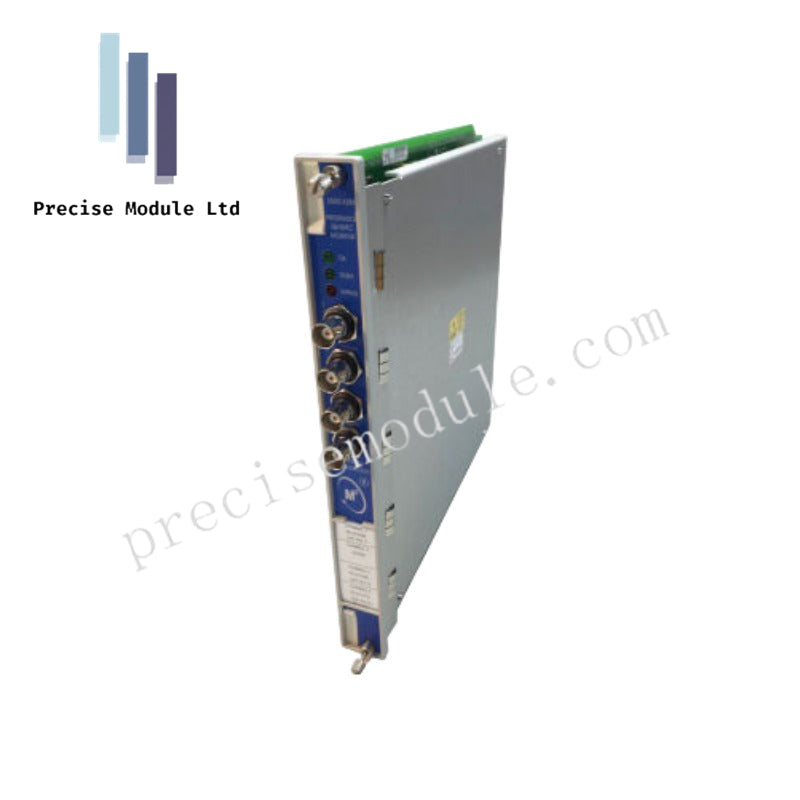

Bently Nevada 3500/42M 176449-02 Proximity/Seismic Monitor Module

Bently Nevada 3500/42M 176449-02 Proximity/Seismic Monitor Module

The Bently Nevada 3500/42M 176449-02, also cataloged as the 3500/42M Proximity/Seismic Monitor Module, operates as a dedicated hardware component for multi-channel machinery protection and rotor dynamics signal conditioning within industrial turbine supervisory instrument networks.

Hardware Specifications

Rotor Dynamics and Eddy-Current Probe Scaling

Configured for continuous machinery health assessment, the Bently Nevada 3500/42M 176449-02 acquires raw inputs from up to four proximity and seismic transducers. The internal signal processor executes strict eddy-current probe scaling to convert analog electrical values into precise physical displacement and vibration metrics. System integrity loops perform continuous gap voltage validation targeting standard negative voltage baselines to confirm probe positioning accuracy. Integrated digital filtering networks suppress cross-talk across adjacent channels, maintaining data fidelity for high-speed rotating elements.

Frequently Asked Questions

Q: What core function does the 3500/42M module execute for machinery protection?

A: It protects machinery by continuously comparing monitored parameters against configured alarm setpoints to drive alarms and communicate essential machine information to operations and maintenance personnel.

Q: What parameters can be programmed on each channel using the configuration software?

A: Users can program individual channels utilizing the 3500 Rack Configuration Software to monitor radial vibration, acceleration, eccentricity, REBAM, differential expansion, circular acceptance region, thrust position, shaft absolute, and velocity.

Field Installation Guidelines

Mounting and Grounding: Insert the module securely into designated slots within a standard 3500 series rack framework. Fasten all captive screws firmly to ensure backplane bus alignment and continuous chassis grounding connection.

Signal Wiring: Route all input signal lines using twisted-pair shielded cables, separating them physically from high-power distribution lines and drive outputs to minimize electromagnetic interference.
