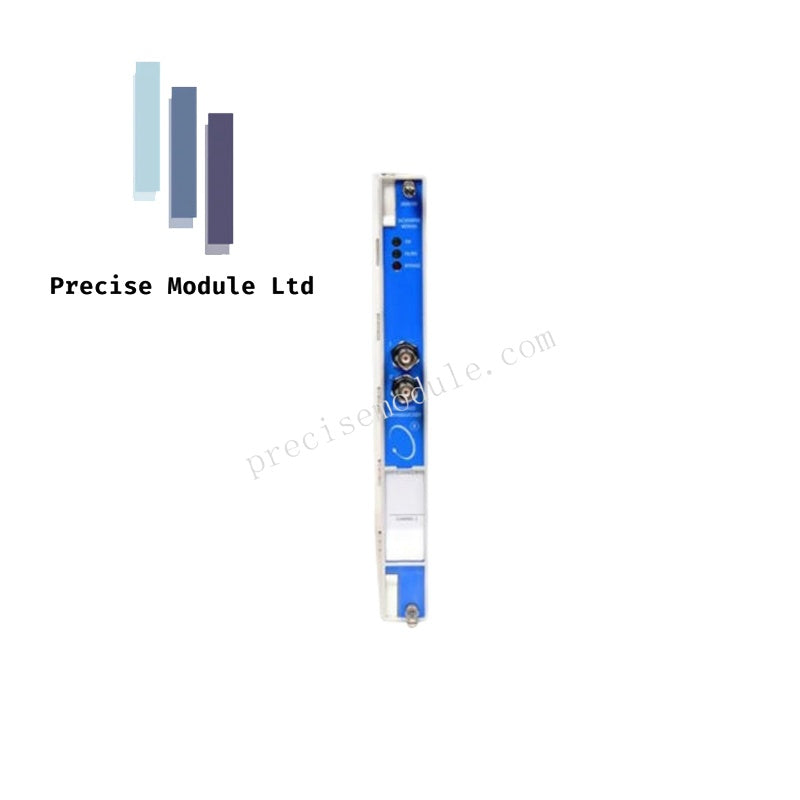

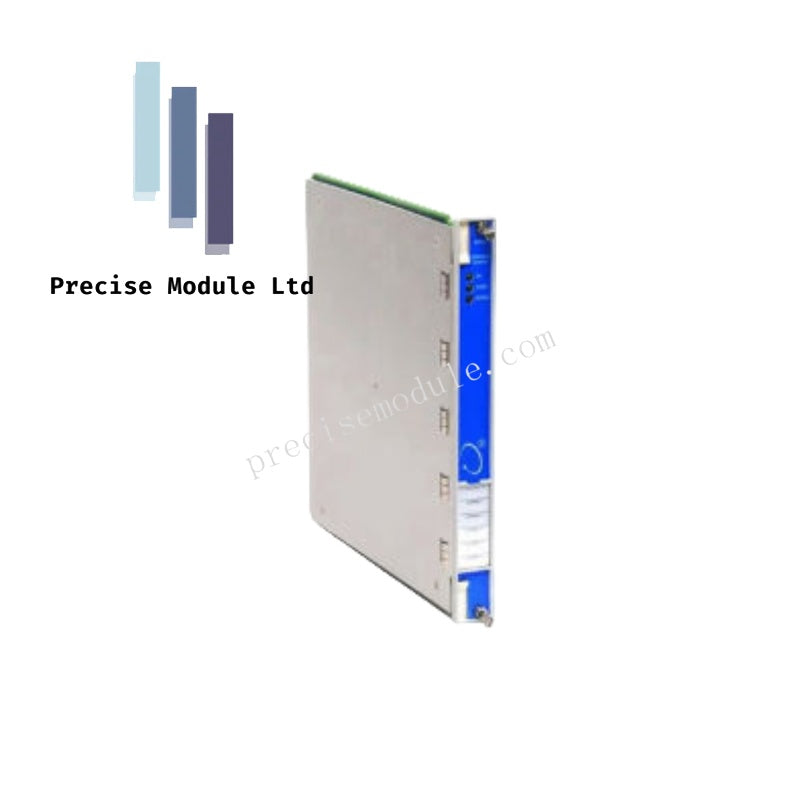

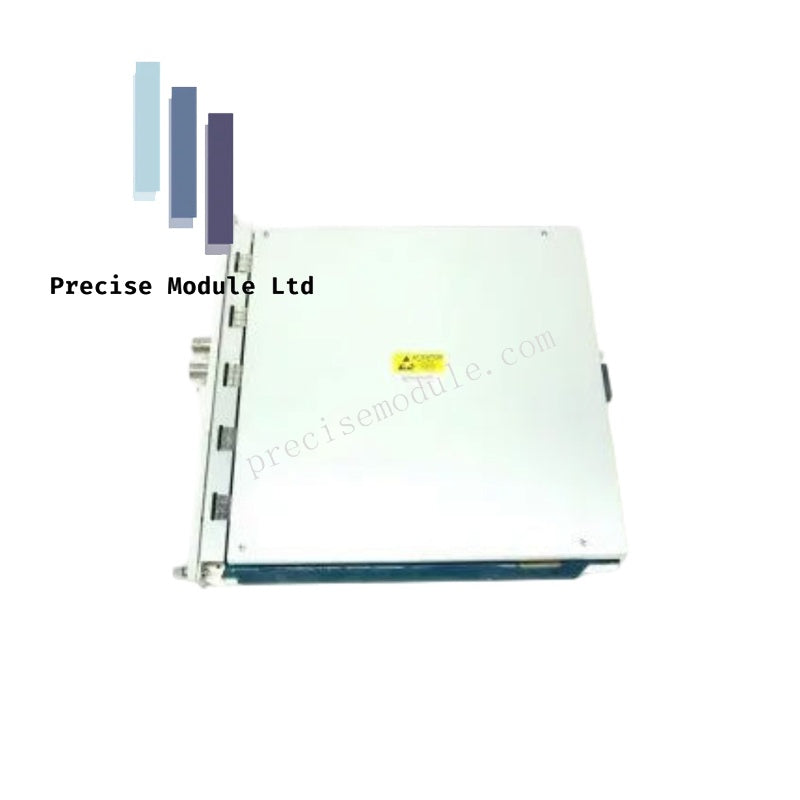

The Bently Nevada 3500/50M 286566-02, also cataloged as the 3500/50M Tachometer Module, operates as a dedicated hardware component for rotor speed, acceleration, and rotation direction monitoring within the 3500 Rack monitoring system.

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3500/50M module interfaces directly with proximity probes or magnetic pickups to process high-speed pulse trains, converting raw transducer signals into rotative speed and acceleration data. The module maintains strict signal conditioning parameters to ensure rotor dynamics measurements remain precise across varying machine states. Integrated Alarm Drive Logic allows for the configuration of specific speed bands, zero-speed notification, and reverse rotation alerts, which are essential for preventing mechanical damage to fluid-film bearing machines. The module provides a standardized 4-20 mA output that scales with configured speed ranges, ensuring compatibility with external process control instrumentation while suppressing electromagnetic interference within the 3500 rack backplane.

Frequently Asked Questions

Q: Does the 3500/50M module require specific rack firmware versions for configuration?

A: Yes. Ensure the 3500 Rack Configuration software and the TDI module firmware are compatible with the specific 3500/50M revision to allow for the correct setup of acceleration and reverse rotation alarm parameters.

Q: Can this module monitor inputs from different types of speed sensors simultaneously?

A: The module is designed to accept inputs from either proximity probes or magnetic pickups. Configuration is performed via the 3500 Rack Configuration software to match the specific signal characteristics of the installed transducer.

Field Installation Guidelines

• Ensure the module is fully seated in the rack slot to guarantee a stable connection with the rack backplane for power and data communication.
• Verify that the signal input wiring uses shielded twisted-pair cables to prevent the induction of noise into the speed measurement path.
• Check that the recorder output (4-20 mA) load impedance is within the specified voltage compliance range (0 to +12 VDC) to maintain signal accuracy.
• Configure all speed band and acceleration alarm setpoints according to the machine manufacturer's specified operational limits to ensure effective protection.
• Perform a signal validity check during commissioning to confirm that the transducer pulse input correctly correlates with actual shaft rotation.
