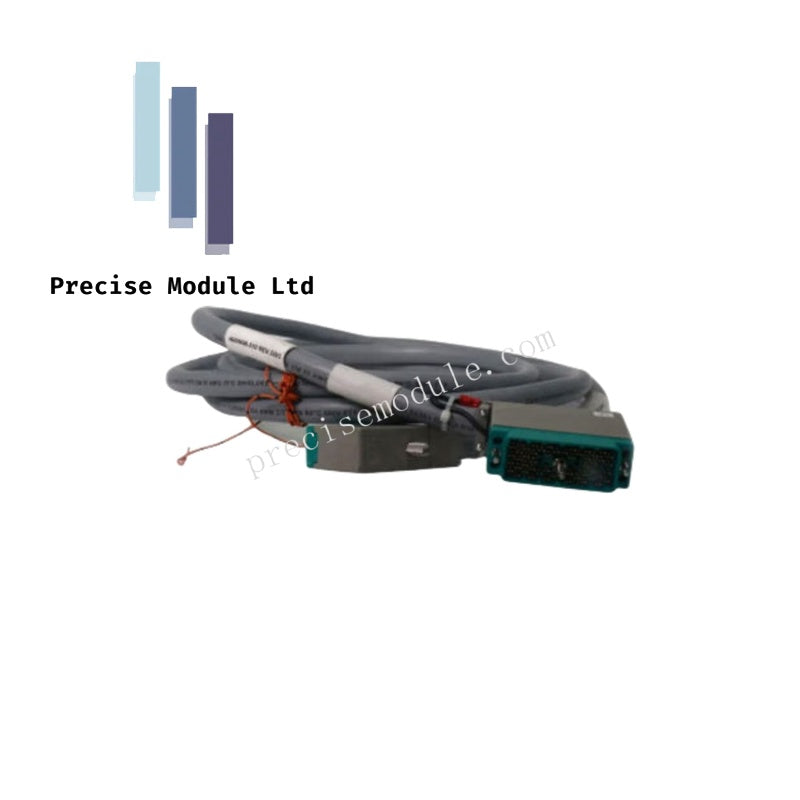

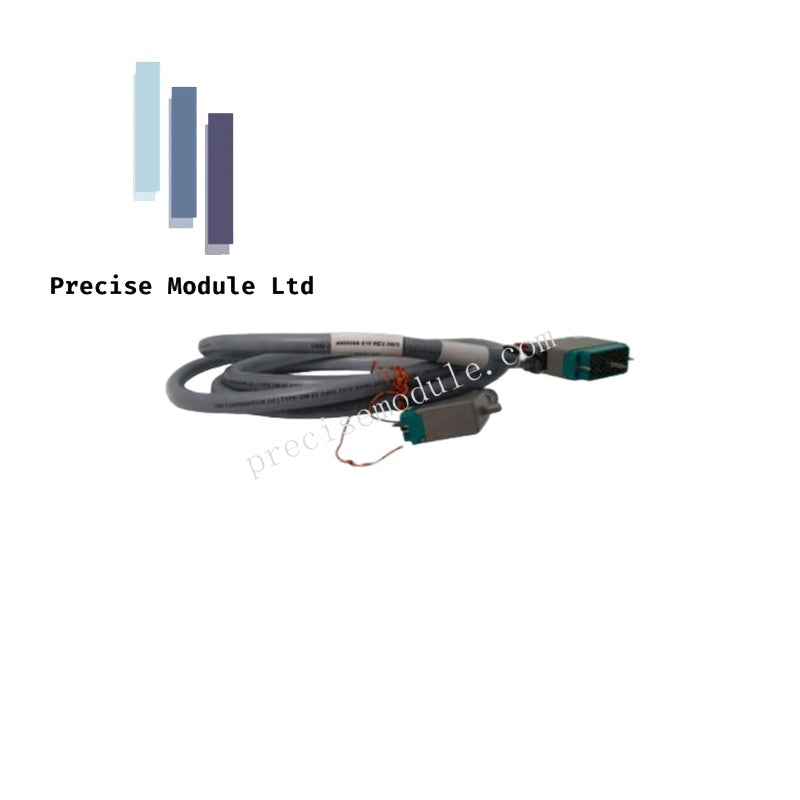

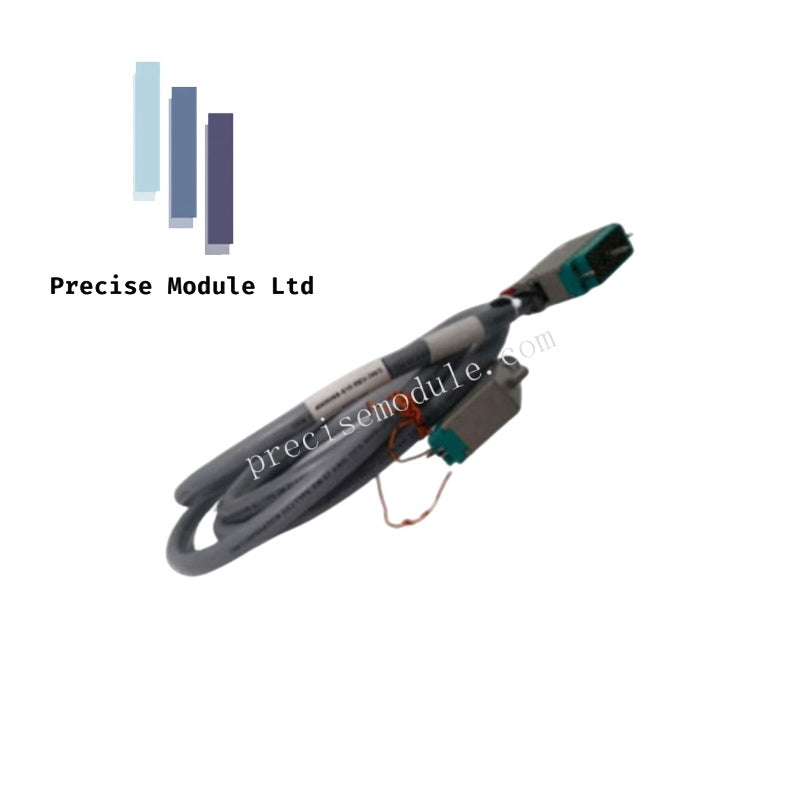

Bently Nevada 4000212-006 I/O Communication Bus Cable

Bently Nevada 4000212-006 I/O Communication Bus Cable

Configured for communication signal transfer in the Bently Nevada 3500 Series Machinery Protection System, the Bently Nevada 4000212-006 (4000212 I/O Communication Bus Cable) provides direct physical/electrical execution.

Hardware Specifications

Cross-Talk Suppression and Machinery Monitoring Network Communication

The Bently Nevada 4000212-006 is a passive system interconnect cable designed for communication between compatible Bently Nevada 3500 Series rack components. The cable transfers monitoring data, configuration information, and diagnostic communication signals between connected modules.

The cable assembly supports machinery protection system architectures requiring module-to-module communication continuity. Proper cable routing practices and secure connector engagement maintain communication signal integrity in industrial control cabinets.

The interconnect design is applied for rack communication paths between monitoring modules, I/O modules, and system controllers within condition monitoring installations.

Frequently Asked Questions

Q: Does the 4000212-006 require an external power source?
A: No. The cable is a passive communication component and does not consume electrical power.

Q: Which Bently Nevada system is compatible with the 4000212-006?
A: The cable is compatible with Bently Nevada 3500 Series Machinery Protection System rack communication and I/O module connections.

Q: What type of signals are transmitted through this cable?
A: The cable transfers communication data, configuration information, and diagnostic signals between compatible system components.

Field Installation Guidelines

Install the cable between designated 3500 Series rack components according to the system interconnection diagram. Confirm that connectors are fully inserted and mechanically secured before energizing the monitoring system.

Route the cable separately from high-voltage power conductors and high-current equipment wiring to minimize electromagnetic interference. Avoid excessive bending, pulling force, or mechanical stress on the cable assembly.

During commissioning, verify communication status between connected modules and confirm correct data exchange through the 3500 Series system controller interface.
