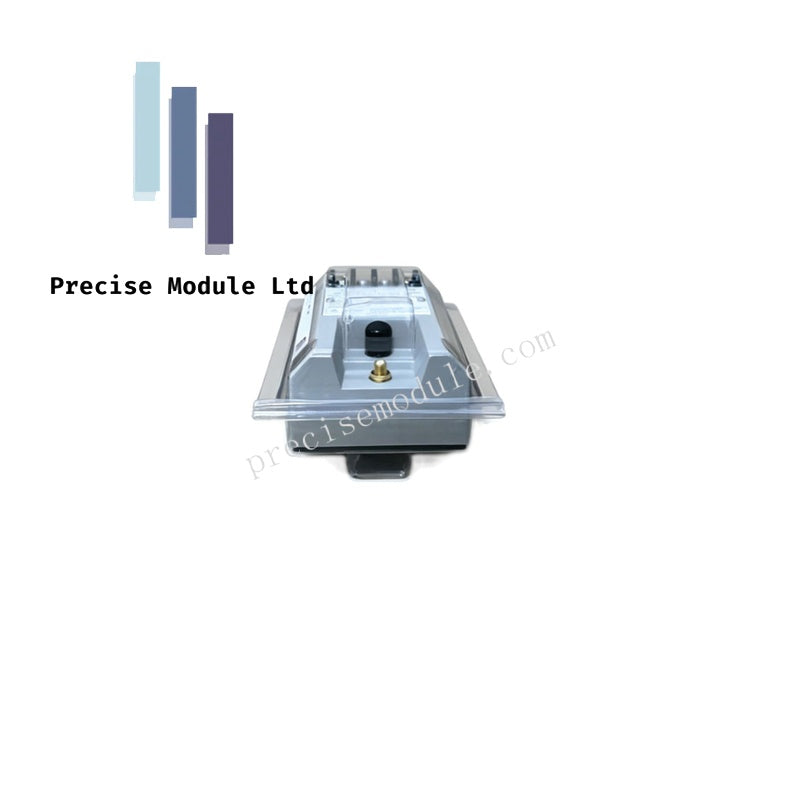

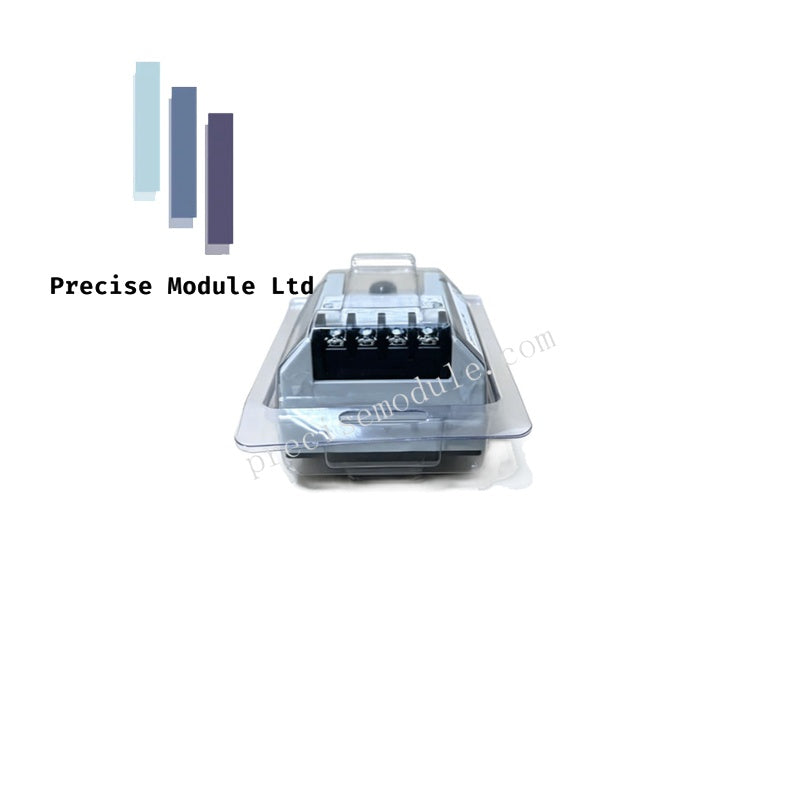

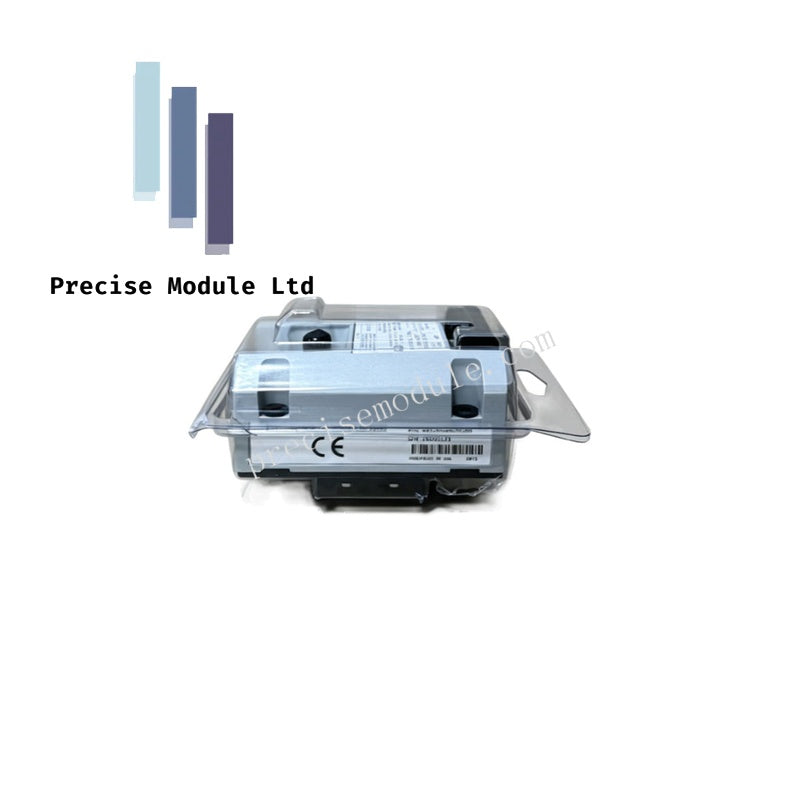

Bently Nevada 991-50-XX-01-00 991 Series Thrust Transmitter

Bently Nevada 991-50-XX-01-00 991 Series Thrust Transmitter

The Bently Nevada 991-50-XX-01-00, also cataloged as the 991 Thrust Transmitter, operates as a dedicated hardware component for axial displacement monitoring within industrial machinery control systems. Configured for proximity probe interfacing, the device transforms raw radio-frequency eddy-current signals from a 3300 NSv sensor into a linear 4-20 mA loop-powered output representing dynamic shaft position.

Hardware Specifications

Machinery Monitoring & Eddy-Current Probe Scaling

The Bently Nevada 991-50-XX-01-00 integrates the functionality of a traditional proximity sensor and transmitter into a singular potted enclosure. Internal drive circuits energize the connected 3300 NSv eddy-current probe, establishing an electromagnetic field near the target shaft surface. As the shaft shifts axially, the change in gap voltage is conditioned directly into a calibrated 4-20 mA current loop. For diagnostic validation, the raw gap voltage (-10 VDC target range) is accessible via the coaxial connector and the PROX OUT terminal. The integrated Not OK / Signal Defeat circuit monitors the integrity of this physical cable connection, clamping the loop output to prevent false high-signal trips or alarms in the event of an eddy-current probe breakdown or a disconnected extension line.

Frequently Asked Questions

Q: How can the loop output of the 991-50-XX-01-00 be verified without physically moving the machine shaft?

A: The transmitter features a dedicated Test Input pin. By applying a variable external DC voltage source to this terminal, personnel can simulate gap changes to verify zero, span, and overall loop-signal precision across the 4-20 mA spectrum.

Q: What is the purpose of the PROX OUT and COM terminals on this unit?

A: These non-isolated terminals provide an analog, unfiltered voltage signal directly from the proximity probe circuit. This allows diagnostic instruments, such as oscilloscopes or data collectors, to capture dynamic motion data and baseline gap voltage without disturbing the primary 4-20 mA industrial control loop.

Field Installation Guidelines

1. Mounting Configurations: Secure the transmitter utilizing standard DIN-rail clips or direct bulkhead mounting screws. The potted construction allows deployment in high-humidity zones up to 100% condensing, but protection from direct liquid spray is required.
2. System Length Calibration: The transmitter must match the selected system length option (5 m or 7 m). Altering or trimming the length of the 3300 NSv extension cable will invalidate the factory eddy-current calibration and introduce measurement linearity errors.
3. Potentiometer Adjustments: Zero and span adjustments must be executed via the non-interacting potentiometers located beneath the transmitter label. Use a non-conductive tuning tool to prevent electrical shorts or signal fluctuations during field calibration.
4. Shield Isolation: Maintain shield continuity through the probe-to-extension connection using insulation sleeves. Ground the overall cable shield exclusively at a single point inside the receiver control panel to suppress common-mode electromagnetic noise.
