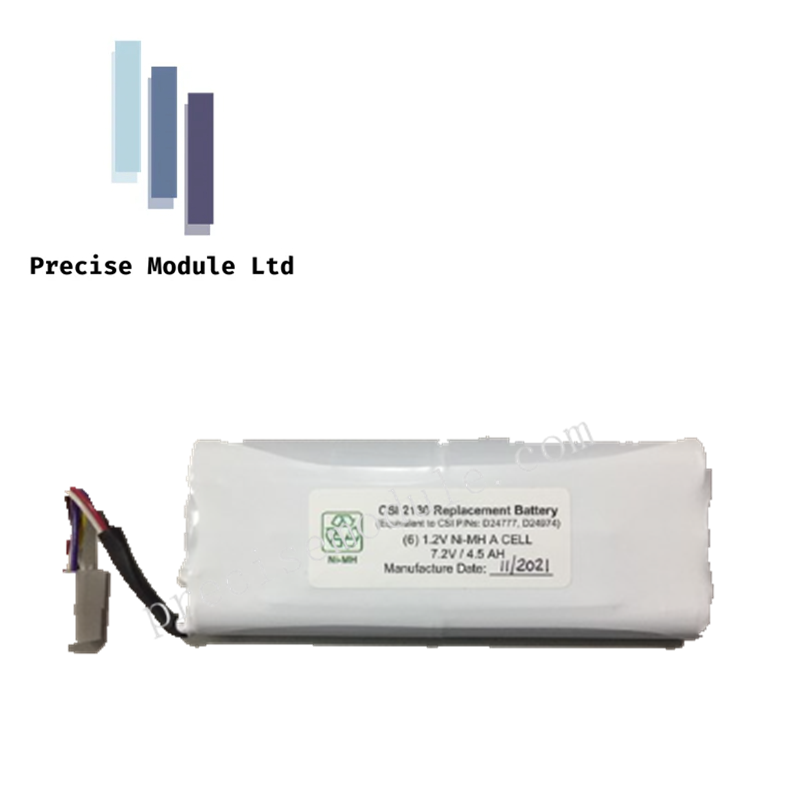

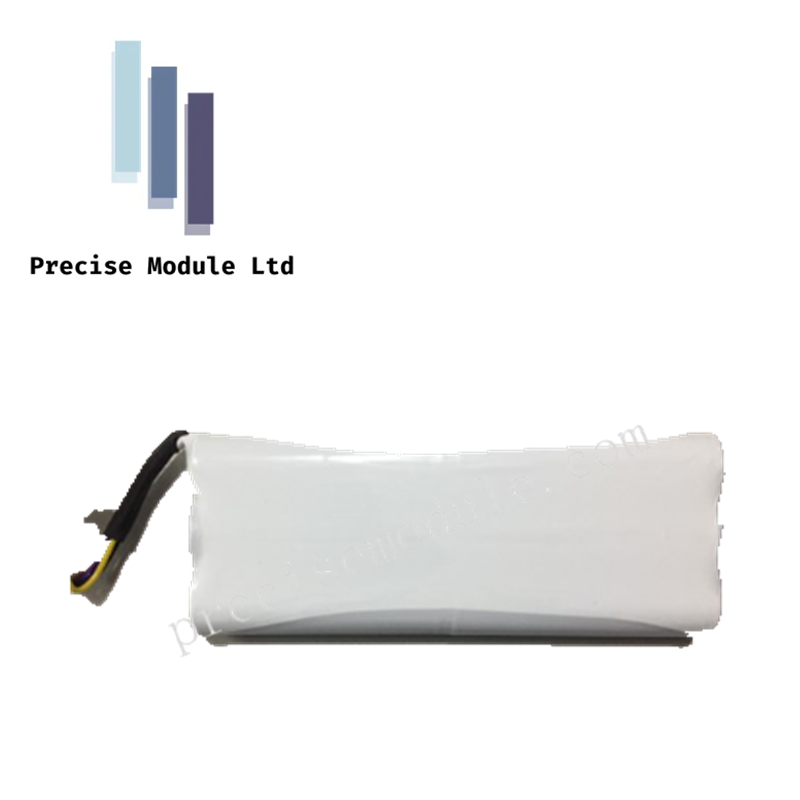

CSI D24777 Explosion-Proof Battery

echnical Overview

The CSI D24777 is a high-performance, explosion-proof power module engineered specifically for the Emerson CSI 2130 Machinery Health Analyzer. This rechargeable battery pack is a critical component for field technicians, providing the intrinsically safe energy required to perform vibration and motor diagnostics in hazardous industrial zones. Designed by Emerson to meet the rigorous safety standards of the petrochemical, mining, and power industries, the D24777 ensures that portable diagnostic equipment remains operational without posing an ignition risk in volatile atmospheres.

Constructed with a ruggedized outer shell, the CSI D24777 is built to endure the mechanical stresses of industrial environments, including high-impact resistance and stability across a wide thermal gradient. Its seamless integration into the CSI 2130 housing maintains the analyzer's ergonomic balance while providing reliable, long-term power delivery for extended route-based inspections.

Detailed Technical Specifications

• Safety Rating: Fully ATEX and IECEx certified for use in explosive atmospheres and hazardous locations.

• Energy Output: Standard voltage ranging between 7.2V and 14.4V, optimized for high-drain diagnostic electronics.

• Chemistry: Advanced rechargeable cells designed for high cycle life and minimal self-discharge.

• Operational Endurance: High-capacity architecture supports several hours of continuous data collection on a single charge.

• Charging Interface: Optimized for use with authorized Emerson CSI dedicated charging stations.

• Environmental Resilience: Hardened against rapid temperature fluctuations and industrial-grade mechanical vibration.

• Physical Profile: 203 mm x 260 mm x 48 mm.

• Mass: Ultra-lightweight 240g (0.24 kg) design for improved handheld portability.

• Manufacturing Origin: USA.

Application and Field Maintenance

The CSI D24777 is the mandatory power solution for CSI 2130 analyzers deployed in Zone 0, 1, or 2 environments. To maintain the intrinsic safety rating of the analyzer system, only genuine D24777 modules should be utilized. The battery features a secure locking mechanism to ensure consistent electrical contact even during heavy field use. It is recommended to use the official Emerson charger to maximize the battery's lifespan and ensure the thermal safety protocols are followed during the recharge cycle.
