Emerson 5X00070G04 | Ovation DCS Analog Input Module

Product Description

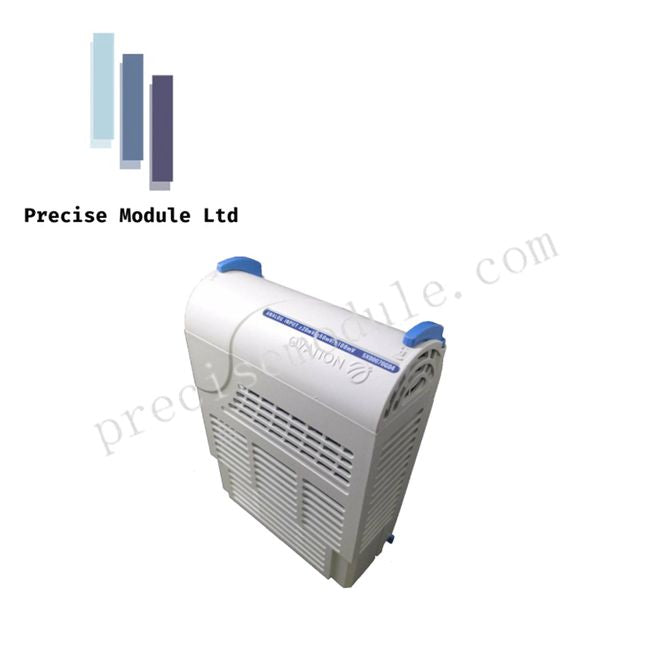

The Emerson Ovation 5X00070G04 is a precision Analog Input Module engineered for integration with the Emerson Ovation Distributed Control System (DCS). Designed for high-density I/O applications, this module collects real-time analog signals from field devices such as sensors, transmitters, and process instrumentation, enabling accurate monitoring and control in power generation, water treatment, and industrial automation environments.

This module belongs to the "G04" revision of the 5X00070 series, featuring advanced diagnostics, hot-swappable capabilities, and robust galvanic isolation to ensure reliable operation even in electrically noisy environments.

Key Features

• High-Density Analog Inputs: Supports 16 channels in a single module for compact rack installation.

• Signal Compatibility: Accepts both voltage (0–10 V) and current (4–20 mA) signals.

• Precision Measurement: 16-bit resolution delivers accurate data for critical control loops.

• Galvanic Isolation: Protects the DCS controller from field-side voltage spikes and noise.

• Intelligent Diagnostics: Channel-level monitoring with LED indicators for fault detection and point quality assessment.

• Hot-Swappable Design: Can be replaced without powering down the I/O rack, minimizing downtime.

• Sequence of Events (SOE): Captures channel state changes with millisecond-level timestamping for troubleshooting and event analysis.

Technical Specifications

Applications

The 5X00070G04 is optimized for process control systems requiring precise analog measurements. It is suitable for power plants, water treatment facilities, and industrial plants where multiple sensors or transmitters feed data to a central Ovation DCS controller. Its hot-swappable and high-density design ensures minimal downtime and efficient use of rack space.

FAQ

Q: How many analog channels does the module support?
A: The 5X00070G04 supports 16 independent input channels.

Q: What types of signals can it accept?
A: Voltage (0–10 V) and current (4–20 mA) signals from field devices.

Q: Can the module be replaced without shutting down the system?
A: Yes, it is fully hot-swappable.

Q: How precise are the readings?
A: The module features 16-bit resolution for highly accurate data acquisition.

Q: Does it protect the DCS from electrical surges?
A: Yes, galvanic and optical isolation ensure protection from field-side voltage spikes.
