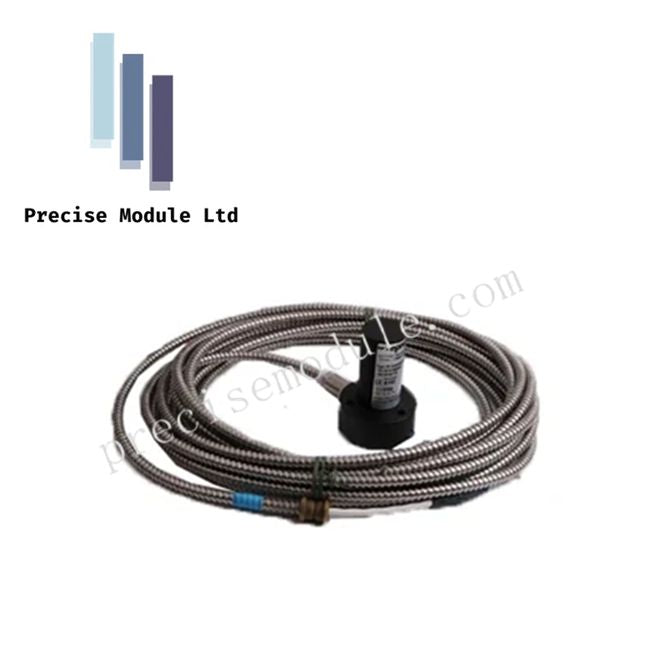

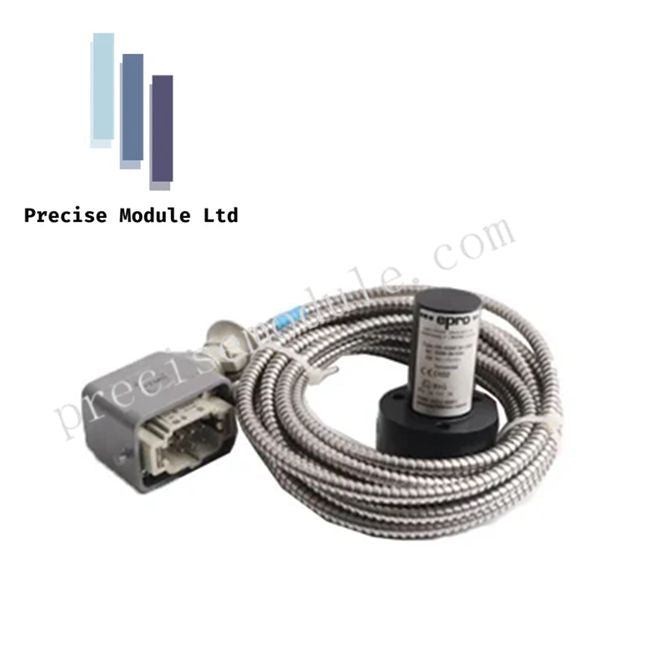

Emerson EZ1900-040 | 4M Extension Cable | Eddy Current Sensor

Emerson EZ1900-040 | 4M Extension Cable | Eddy Current Sensor

  • Manufacturer: Ovation

  • Product No.: EZ1900-040

  • Condition：in Stock

  • Product Type: 1C31116G04

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 800g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Product Description

Overview

The Emerson AMS EZ1900-040 is a high-quality extension cable designed to expand the connectivity of EZ1000 series eddy current sensors. Measuring 4 meters, it allows precise signal transmission from the sensor probe to the converter while maintaining calibration accuracy. Engineered for industrial machinery, this cable ensures consistent performance in turbines, pumps, compressors, and other rotating equipment.

Constructed with a durable FEP jacket and fully shielded with a copper braid, the EZ1900-040 protects sensitive analog signals from electromagnetic and radio frequency interference. Its threaded coaxial connectors with gold plating provide secure, vibration-resistant connections for long-term reliability.

Key Features

Industrial-Grade Construction

  • Cable jacket made from fluoropolymer (FEP) for chemical, oil, and moisture resistance.

  • Optional mechanical armor for protection against crushing, abrasion, and sharp edges during installation.

High-Fidelity Signal Transmission

  • Optimized for low capacitance to preserve eddy current sensor accuracy.

  • Braided shield prevents signal degradation from EMI and RFI.

Precision Connectors

  • Gold-plated miniature coaxial connectors ensure low contact resistance and corrosion resistance.

  • Locking mechanism resists vibration in rotating machinery environments.

System Compatibility

  • Works with EZ1000 series sensors and most standard 8mm eddy current probes.

  • Maintains proper calibration and measurement accuracy over its full 4-meter length.

Installation Flexibility

  • Direct plug-and-play connection to sensor and monitoring systems.

  • Supports standard system lengths for API 670 compliant vibration monitoring setups.

Technical Specifications

Feature Specification
Model Number EZ1900-040
Cable Length 4.0 Meters (approx. 13.1 ft)
System Length with Probe 5.0 Meters (with 1.0 m probe)
Cable Jacket Material Fluoropolymer (FEP/PFA)
Connector Type Threaded miniature coaxial, gold-plated
Operating Temperature -35°C to +150°C (-31°F to +302°F)
Voltage Rating 300V AC
Insulation Resistance >100 MΩ at 500V DC
Shielding Full copper braid
Bending Radius Minimum 25.4 mm (1.0 in)
Weight ~450 g

Applications

  • Extending EZ1000 eddy current sensor connections in turbines, compressors, and pumps.

  • Preserving signal integrity for accurate shaft displacement and vibration monitoring.

  • Ensuring API 670 compliant system lengths for industrial machinery protection.

FAQ

Q: What is the maximum recommended total cable length?
A: Maximum 10 meters to maintain measurement accuracy.

Q: Can multiple extension cables be used together?
A: Yes, but the total length must not exceed 10 meters.

Q: Is the EZ1900-040 compatible with other sensor brands?
A: Compatible with most 8mm eddy current sensors using standard connectors.

Q: Does the cable require special maintenance?
A: Regular visual inspections and connector cleaning are recommended.

Q: Are custom cable lengths available?
A: Yes, lengths from 1 to 20 meters can be manufactured on request.
