Emerson EZ1900-080 | 8M Extension Cable | Eddy Current Sensor

Product Description

Overview

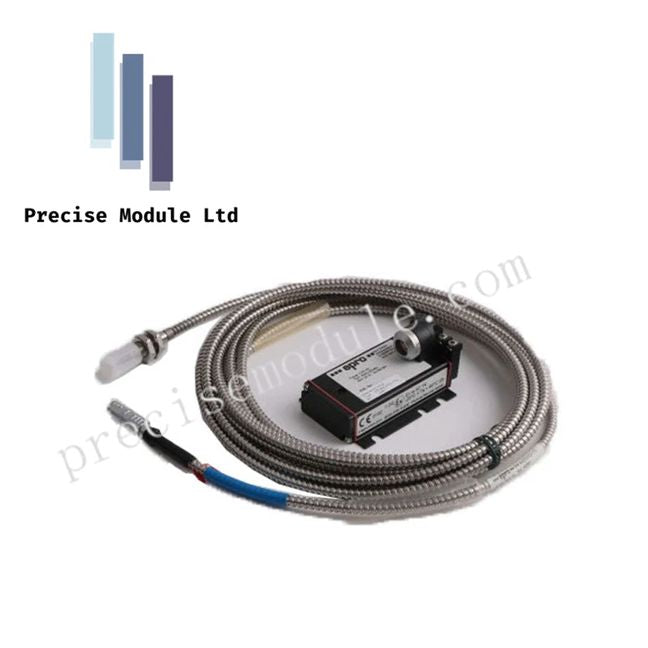

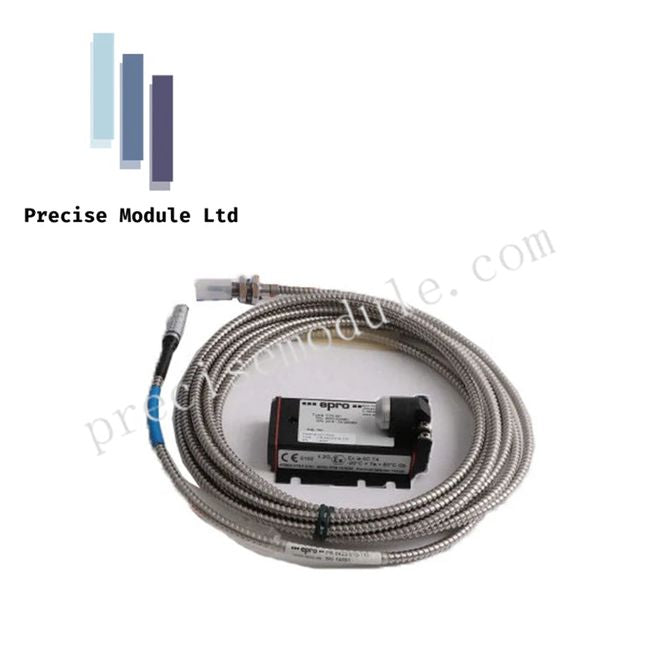

The Emerson AMS EZ1900-080 is a premium extension cable engineered for the EZ1000 series eddy current sensors and converters. With a length of 8 meters, it extends the connection between the displacement probe and the converter, enabling precise monitoring in large or complex machinery layouts. Built to withstand industrial heat, oil, and contaminants, this cable ensures stable signal transmission across long distances while integrating seamlessly with other EZ1000 system components.

Ideal for large steam turbines, compressors, and other high-capacity rotating equipment, the EZ1900-080 supports reliable API 670-compliant vibration and displacement monitoring.

Key Features

Extended Reach with High Signal Integrity

• Optimized electrical characteristics maintain low capacitance and impedance, ensuring accurate high-frequency signal transmission over 8 meters.

• Compatible with field-calibrated EZ1000 converters to maintain linear measurement performance over the extended distance.

Durable Construction for Harsh Environments

• Cable jacket made from high-grade FEP/PFA fluoropolymer for operation up to 150°C (302°F).

• Resistant to industrial oils, lubricants, and corrosive gases.

EMI/RFI Shielding

• High-density braided shield protects sensitive analog displacement signals from electromagnetic and radio frequency interference in industrial environments.

Precision Connection Hardware

• Miniature coaxial connectors with gold plating provide low-resistance, corrosion-resistant connections.

• Threaded locking mechanism ensures vibration-resistant, secure attachment.

System Compatibility

• Works with EZ1000 series sensors and converters.

• When combined with a 1-meter probe, creates a total system length of approximately 9 meters, ideal for large machinery installations.

Technical Specifications

Application Notes

When installing the EZ1900-080, configure the EZ1000 converter for the total system length of ~9 meters. Using the cable with a converter set for a shorter system length may cause measurement errors or "Not OK" status. In high-traffic or maintenance-prone areas, stainless steel flexible armor is recommended to protect the cable from mechanical damage.

FAQ

Q: Can this cable be used with a 0.5-meter probe?
A: Yes, creating a total system length of approximately 8.5 meters.

Q: Is the EZ1900-080 compatible with other EZ1000 components?
A: Yes, it integrates seamlessly with all EZ1000 series sensors and converters.

Q: Can multiple EZ1900 extension cables be combined?
A: Yes, but total system length should not exceed 10 meters to maintain signal accuracy.

Q: What maintenance is required?
A: Regular inspection for kinks, sharp bends, and connector cleanliness is recommended.

Q: Are armored versions available?
A: Some sub-models allow optional stainless steel flexible armor for enhanced mechanical protection.
