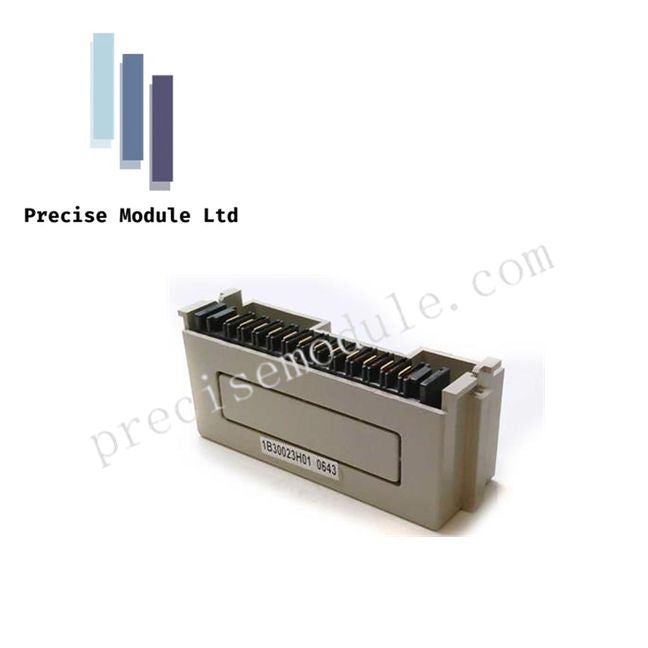

Emerson Ovation 1B30023H01 I/O Bus Terminator Module Hart End Line

Product Description

Overview

The Emerson Ovation 1B30023H01 is a precision-engineered I/O Bus Terminator Module, also known as a Hart End Line Module, designed for use in Ovation and Westinghouse Distributed Control Systems (DCS). It ensures electrical stability at the end of I/O branches, preventing signal reflections that can compromise communication integrity between controllers and I/O modules. This compact, rugged module is built to operate reliably in demanding industrial and process environments.

Key Features

• Signal Integrity Protection: Actively terminates I/O bus lines to eliminate reflections and maintain stable communication.

• Stable Reference Voltage: Delivers consistent 5 VDC reference for reliable module operation.

• Energy Dissipation: Absorbs excess energy and protects connected I/O devices from voltage spikes.

• LED Status Indicators: Provides visual feedback for power and bus activity to support fast diagnostics.

• Compact, Rugged Design: Durable enclosure suitable for harsh industrial conditions and crowded cabinet installations.

• Plug-and-Play Integration: Compatible with Ovation architecture without additional configuration.

• Certified Safety: CE, UL, CSA, ATEX, and IECEx approvals for global industrial compliance.

Technical Specifications

Applications

The 1B30023H01 is ideal for critical I/O termination in:

• Power generation facilities

• Large-scale process plants

• Water and wastewater treatment systems

• High-speed DCS communication networks

FAQ

Q: Why is an I/O bus terminator required?
A: It prevents signal reflections at cable ends, ensuring accurate and stable communication between the controller and field devices.

Q: Can this module handle harsh environmental conditions?
A: Yes, it operates from -25°C to 75°C, is vibration-resistant, and built from flame-retardant materials suitable for industrial settings.

Q: How is the module monitored for faults?
A: LED indicators provide real-time feedback for power and bus status, simplifying field diagnostics.

Q: Is configuration required for installation?
A: No, it is designed for plug-and-play integration into existing Ovation and Westinghouse DCS architectures.
