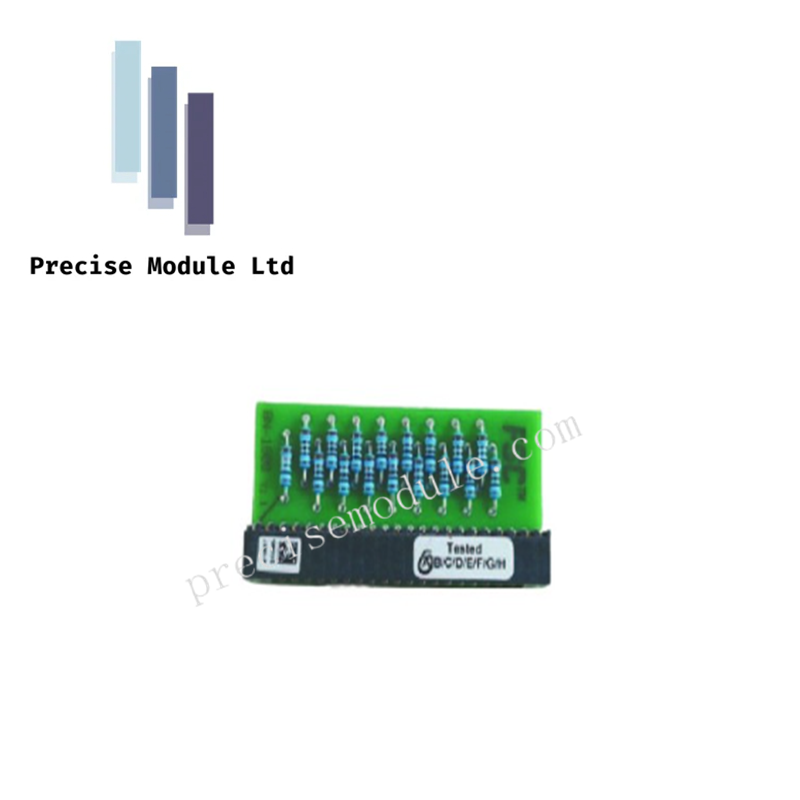

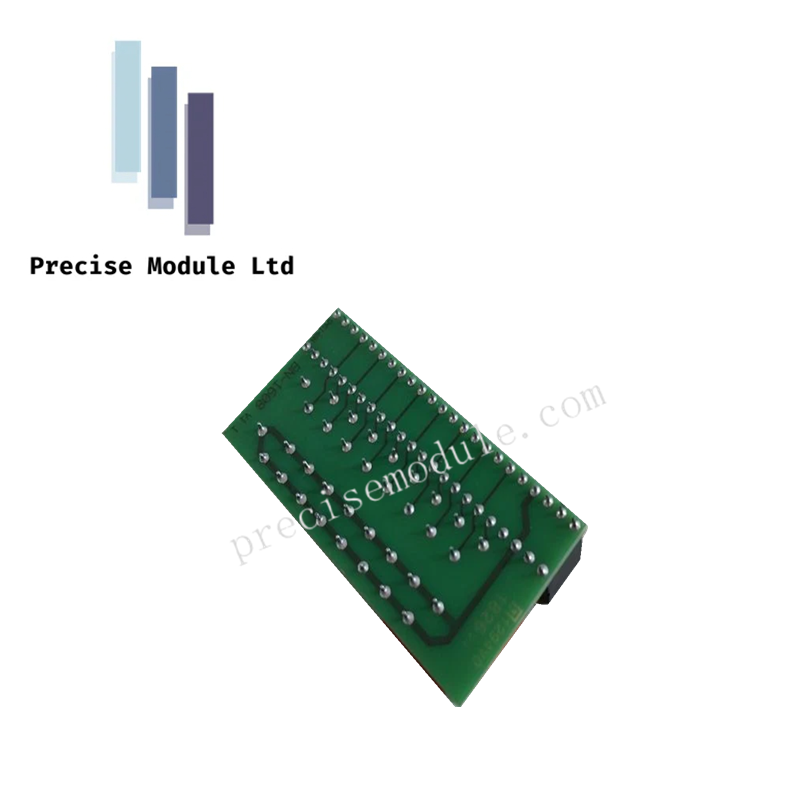

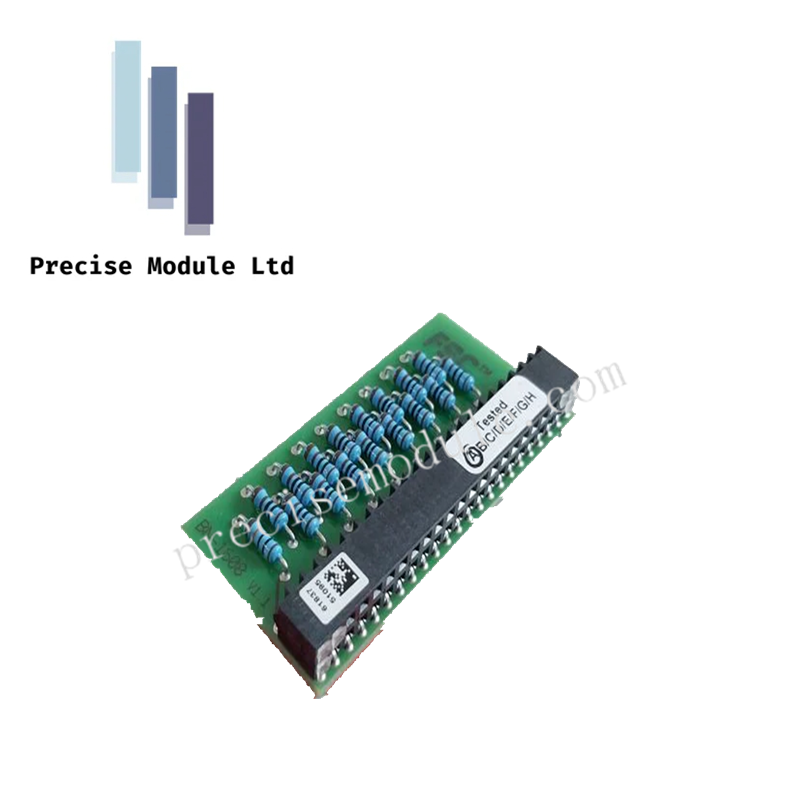

Honeywell FC-BN-1608 Safe Namur Sensor Converter

The Honeywell FC-BN-1608, also cataloged as the FC-BN-1608 Safe Namur sensor converter, serves as the primary converter module used to execute low‑current NAMUR signal acquisition across Honeywell safety‑rated platforms.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel Isolation

Although the FC‑BN‑1608 processes NAMUR low‑current signals rather than 4‑20 mA loops, its integration within Honeywell safety architectures maintains channel‑to‑channel isolation through uniform input resistance and low‑current detection thresholds. The converter’s isolation behavior prevents cross‑talk between adjacent NAMUR channels, ensuring deterministic state transitions for safety logic solvers and preventing false trips caused by noise or wiring interference.

Frequently Asked Questions

Q: Can the converter be replaced while the safety controller is powered? A: Mechanical replacement is possible, but NAMUR channels will immediately drop out. Safety systems typically require a safe‑state condition before removal.

Q: Does the module introduce load to upstream NAMUR sensors? A: The fixed 1 kΩ input resistance defines the sensor loading. No additional dynamic load is imposed beyond the specified resistance.

Q: How does the converter handle over‑current conditions? A: Currents approaching the 20 mA limit may cause thermal dissipation up to 0.6 W. The safety controller will typically flag abnormal current levels through its diagnostic routines.

Field Installation Guidelines

Route NAMUR wiring separately from high‑voltage conductors to minimize induced noise. Maintain consistent polarity and verify sensor current levels using a calibrated milliamp source. Ensure shielded cable grounding at a single point to avoid circulating currents. Avoid overtightening terminal screws to prevent conductor deformation. Confirm each channel’s continuity and threshold behavior before commissioning.
