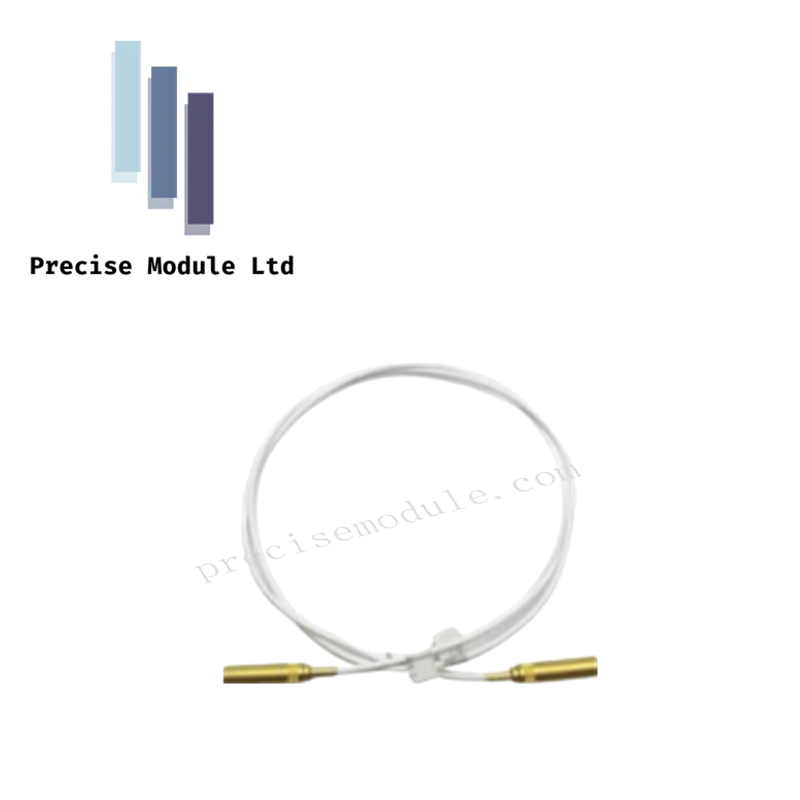

Foxboro P0912CE Nodebus A Extension Cable

Product Overview

The P0912CE (P0912CE) is a high-performance Nodebus A expansion cable engineered for the Foxboro I/A Series and EcoStruxure Foxboro DCS architectures. This 5-meter interconnect serves as a critical link for extending communication distances between control nodes and field-mounted hardware without compromising signal integrity. Constructed with industrial-grade materials, the cable is designed to withstand the physical and electrical rigors of plant environments, ensuring a deterministic and stable data flow across the Nodebus backbone.

Technical Specifications

• Component Function Nodebus A Extension Cable

• Reference Number P0912CE

• Total Length 5 Meters (Approx. 16.4 ft)

• Conductor Material High-conductivity electrolytic copper

• Core Cross-Section 2.5 mm² (Optimized for low-impedance signal transmission)

• Insulation Jacket Thermoplastic Elastomer (TPE) – Abrasion and chemical resistant

• Connector Architecture Standardized Nodebus A compatible interfaces

• Ingress Protection IP67 Rated (Fully dust-tight and resistant to temporary water immersion)

• Thermal Performance -40°C to +85°C (Extended Industrial Range)

• Flexibility High-flex design suitable for cable tray routing and tight cabinet bends

Operational Advantages

The P0912CE (P0912CE) is essential for maintaining the high-availability requirements of Foxboro control systems:

• Distance Flexibility Allows for the strategic placement of control hardware by extending the reach of standard Nodebus segments.

• Environmental Shielding The TPE jacket and IP67 connectors make it suitable for deployment in areas where moisture, oils, and temperature fluctuations are prevalent.

• Plug-and-Play Integration Features precision-engineered connectors that ensure a secure, vibration-proof seating to prevent intermittent communication faults.

• Signal Stability The 2.5 mm² conductor gauge is specifically selected to minimize voltage drops and EMI susceptibility over the 5-meter run.
