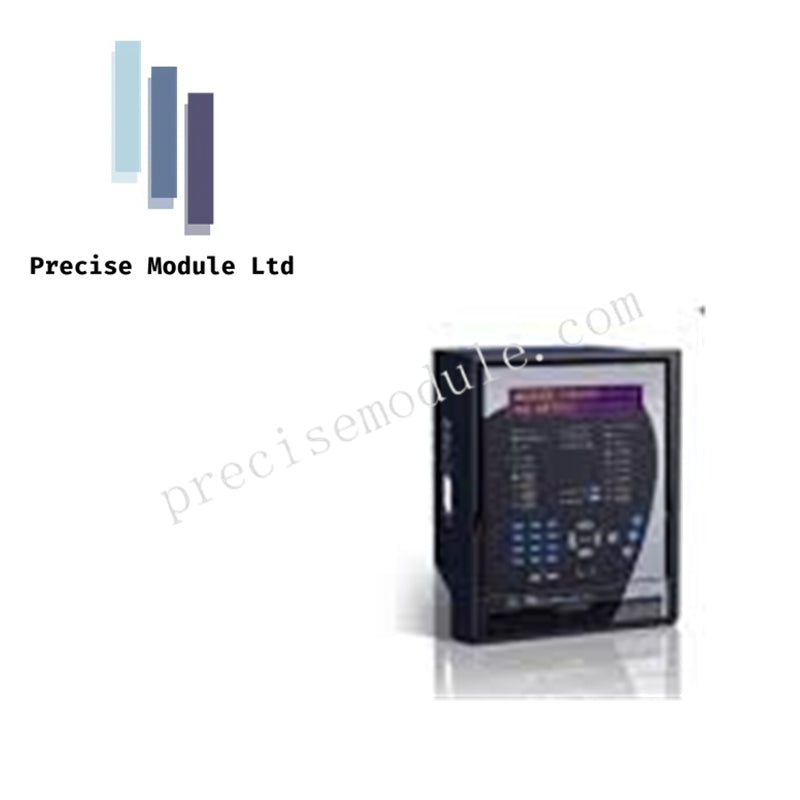

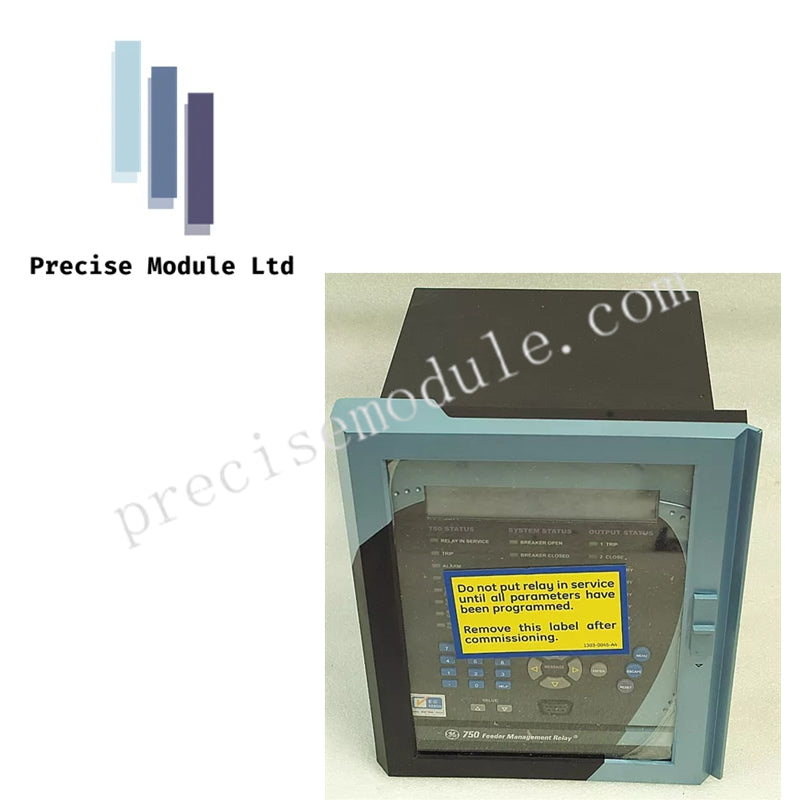

GE 750-P1-G1-S1-HI-A20-R | Multilin Feeder Management Relay | Advanced Protection & Control

Overview

The GE 750-P1-G1-S1-HI-A20-R is a top-of-the-line Feeder Management Relay from the GE Multilin SR750 series, designed to provide advanced protection, control, and monitoring for medium-to-high voltage feeder systems. This relay integrates multiple protection functions, making it suitable for industrial environments where reliability and robust system management are paramount. Whether used in electrical distribution systems or protection schemes for complex feeder circuits, this relay ensures operational efficiency and safety.

Key Features

1. Comprehensive Protection Functions
   The 750-P1-G1-S1-HI-A20-R provides a wide array of protection functions based on ANSI/IEEE standards, including:

   These protection features ensure comprehensive feeder system safety and response in case of faults, enhancing reliability and reducing downtime.

• 50P/50N: Instantaneous Overcurrent (Phase/Neutral)

• 51P/51N: Time Overcurrent (Phase/Neutral)

• 67P/67N: Directional Overcurrent

• 27/59: Under/Overvoltage

• 81U/O: Under/Over Frequency

• 46: Phase Reversal / Unbalance

• 25: Synchrocheck (Voltage/Phase Angle/Frequency Matching)

• 79: Programmable Autoreclose (up to 4 shots)

2. Advanced Monitoring and Metering
   Beyond protection, the 750-P1-G1-S1-HI-A20-R also acts as a power quality meter, tracking essential parameters like RMS currents, voltages, power factor, and frequency. Additionally, the relay features an event recorder and oscillography capabilities that allow for waveform capture during faults, helping engineers analyze and diagnose issues in detail.

3. FlexLogic™ for Custom Control
   The FlexLogic™ configuration tool allows engineers to design custom control logic using Boolean operators, eliminating the need for external auxiliary relays. This feature is ideal for advanced automation tasks, such as interlocking or load shedding, making the system more versatile and reducing the need for additional equipment.

4. A20 Enhanced User Interface
   The A20 option provides an upgraded user interface with an enhanced display and expanded analog I/O. This is particularly valuable for systems requiring the integration of non-electrical process variables such as temperature or pressure into the feeder management system, offering greater flexibility for complex industrial environments.

5. Harsh Environment Protection
   Designed for use in challenging environments, the R option includes a conformal coating that protects the unit’s internal circuit boards from moisture, dust, and chemicals. This ensures the relay’s performance in environments like chemical plants or coastal substations, where the risk of corrosion is high.

Technical Specifications

Applications

The GE 750-P1-G1-S1-HI-A20-R Feeder Management Relay is ideal for a variety of industrial applications, particularly in electrical distribution systems where high voltage and fault protection are critical. Some of its key applications include:

• Feeder Protection: Safeguarding feeder circuits in medium- to high-voltage distribution systems.

• Substation Automation: Integrated control and monitoring of feeder systems within electrical substations.

• Power Distribution Networks: Enhancing grid reliability by offering fault detection, protection, and automated control.

• Industrial Facilities: Managing complex electrical systems in heavy industrial operations, including chemical plants, manufacturing facilities, and power plants.

FAQ

Q: What is the benefit of the FlexLogic™ configuration tool?
A: The FlexLogic™ tool allows users to create custom control logic for tasks such as interlocking or automated load shedding, without the need for additional external relays. This simplifies system design and reduces the cost and complexity of adding external components.

Q: Can the 750-P1-G1-S1-HI-A20-R be used in harsh environments?
A: Yes, the R option provides conformal coating on the internal circuit boards, making the relay resistant to moisture, chemicals, and dust. This makes it suitable for environments such as chemical plants, coastal substations, and other harsh industrial settings.

Q: How does the 750-P1-G1-S1-HI-A20-R monitor power quality?
A: The relay tracks various parameters like RMS currents, voltages, power factor, Watts, and Vars, providing a comprehensive view of power quality. It also includes event recording and oscillography, which are useful for troubleshooting and fault analysis.

Q: What communication protocols are supported by this relay?
A: The 750-P1-G1-S1-HI-A20-R supports multiple communication protocols, including RS232, RS485, and Ethernet (Modbus RTU/TCP/IP), allowing easy integration with other equipment and remote monitoring systems.
