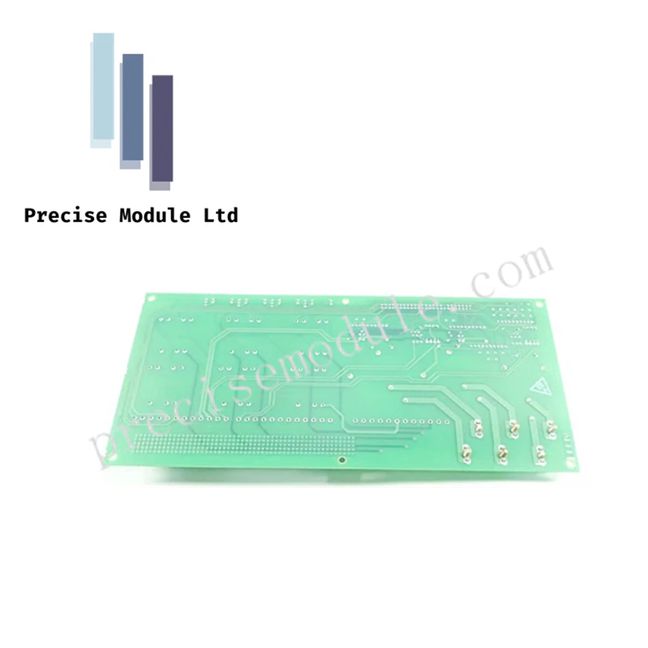

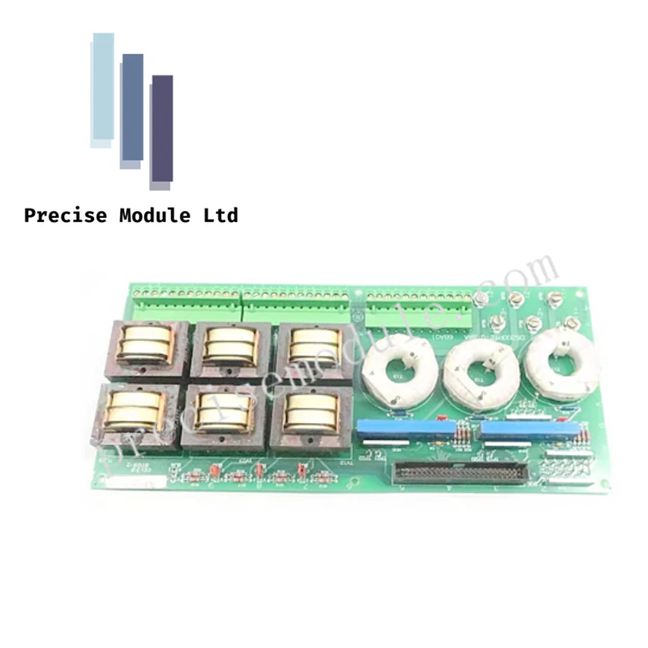

GE DS200PTCTG1BAA Mark V PT/CT Signal Conditioner Board

Product Description

Overview
The DS200PTCTG1BAA is a specialized PT/CT signal conditioning interface board designed for the GE Mark V Speedtronic turbine control system. It provides high-reliability signal termination and routing for turbine monitoring and control, ensuring precise data distribution to the system’s triple-redundant (TMR) processors. This BAA revision includes hardware enhancements for improved noise immunity and durability in industrial environments.

Key Features and Benefits

• Signal Conditioning: Amplifies, filters, and linearizes PT/CT inputs for accurate measurement.

• TMR Compatibility: Supports triple-modular-redundant architectures, allowing fault-tolerant signal distribution across R, S, and T cores.

• High-Density Connectivity: Multi-pin headers and screw terminals enable simultaneous routing of numerous signals.

• Noise Immunity: On-board resistors and capacitors, plus dedicated shield terminations, protect against EMI/RFI in turbine halls.

• Diagnostics and Maintenance: Test points and optional LEDs allow quick verification of signal integrity and hardware health.

• Industrial Durability: Operates reliably under thermal cycling and mechanical vibration typical of turbine installations.

• Electrical Protection: Galvanic isolation and surge protection guard sensitive downstream equipment.

Technical Specifications

Applications
The DS200PTCTG1BAA is ideal for gas and steam turbine monitoring and control. It interfaces directly with field devices such as PTs and CTs, enabling reliable operation of speed, temperature, and pressure control loops.

FAQ
Q: Can this board be used in other GE Speedtronic systems?
A: The board is optimized for Mark V architecture and may not be fully compatible with other generations.

Q: How is calibration performed?
A: Calibration is completed through on-board potentiometers or digital configuration settings to ensure precise measurement.

Q: Is this board compatible with TMR setups?
A: Yes, it fully supports triple-redundant processing, maintaining turbine safety in case of a single-core failure.
