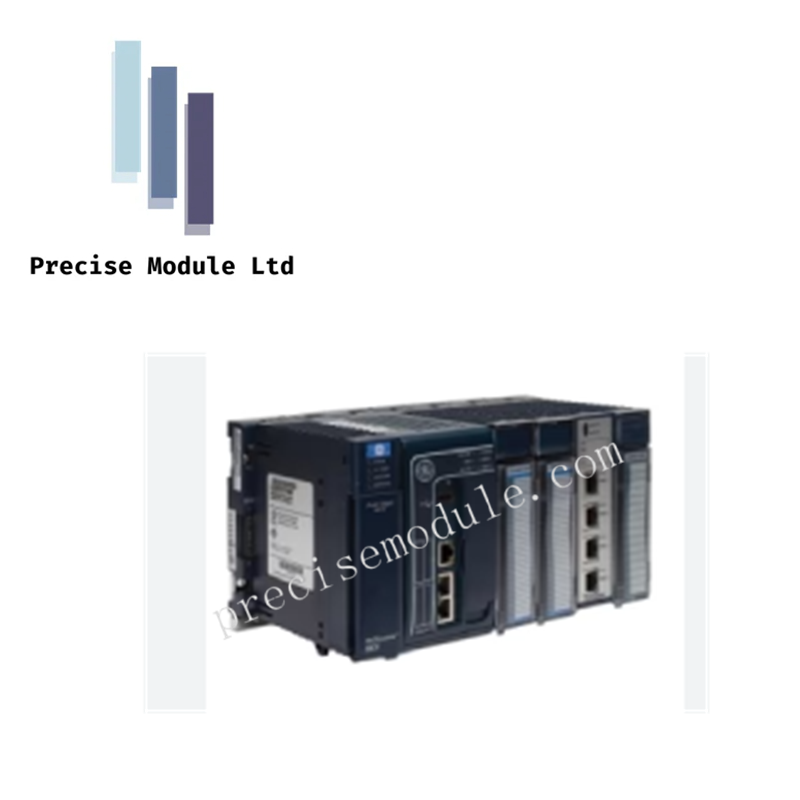

GE Fanuc IC697CPU780 CPU Module

Technical Overview

The IC697CPU780 serves as a core processing engine for the GE Fanuc Series 90-70 PLC ecosystem, now supported under Emerson Automation. This single-slot CPU is engineered for high-availability industrial environments, providing the computational logic required for complex process control, including redundant and hot-standby configurations. Utilizing an Intel 80386DX microprocessor, the IC697CPU780 delivers a deterministic execution environment with a Boolean processing speed of 0.4 microseconds. Its high-density I/O mapping and expandable memory architecture make it a foundational component for large-scale manufacturing, power generation, and water treatment facilities that demand 24/7 operational continuity.

Detailed Technical Specifications

The following hardware parameters define the processing and interfacing boundaries of the IC697CPU780:

• Manufacturer: GE Fanuc (Emerson Automation Solutions)

• Model Number: IC697CPU780

• Processor Architecture: Intel 80386DX (Clocked at 16 MHz)

• Logic Execution Speed: 0.4 µs per Boolean function

• Base Memory: 512 KB (Supports user program and register data; expandable via daughterboards)

• Digital I/O Capacity: Manages up to 12,000 discrete inputs and outputs (any combination)

• Analog I/O Capacity: Supports up to 8,000 analog signals

• Communication Interfaces:

• Integrated RS-485 port for SNP/SNP-X protocols

• High-speed Parallel and Serial interfaces for peripheral expansion

• System Redundancy: Supports Genius I/O and GBC-based hot-standby architectures

• Operational Temperature: Rated for -40°C to +85°C (-40°F to +185°F)

• Physical Dimensions: 3.5 cm x 13 cm x 13.5 cm

• Unit Weight: 1.00 lbs (approx. 0.45 kg)

Advanced Control and Memory Expansion

The IC697CPU780 is designed to scale with growing industrial demands. While it comes with 512 KB of onboard CMOS RAM, the module's architecture allows for significant memory expansion to handle large data arrays and complex PID loops. Its compatibility with the Series 90-70 VME-based backplane ensures high-speed backplane communication, while its firmware supports advanced programming features such as floating-point math and interrupt-driven logic. In mission-critical applications, this CPU is often paired with a redundancy controller to ensure that if a primary processor fault occurs, control is transferred to a secondary unit without disrupting the process.
