GE Fanuc IC697PWR722 24VDC Power Supply Module Series 90-70

Product Description

Overview

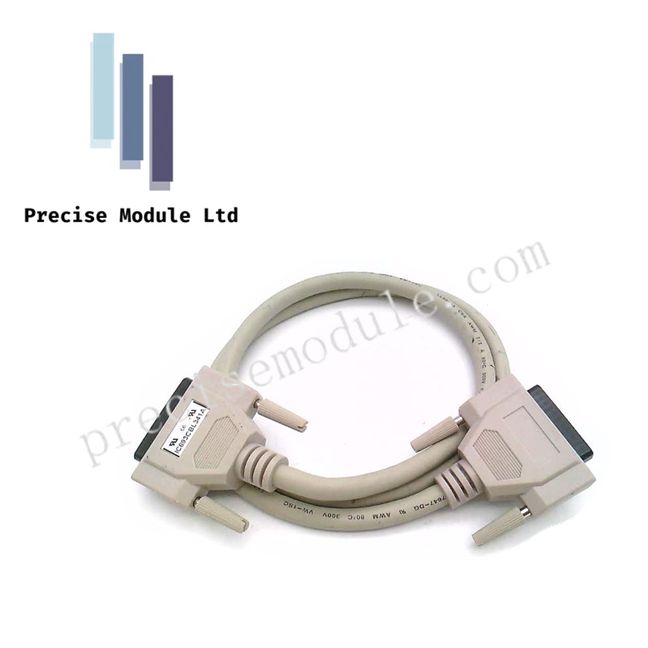

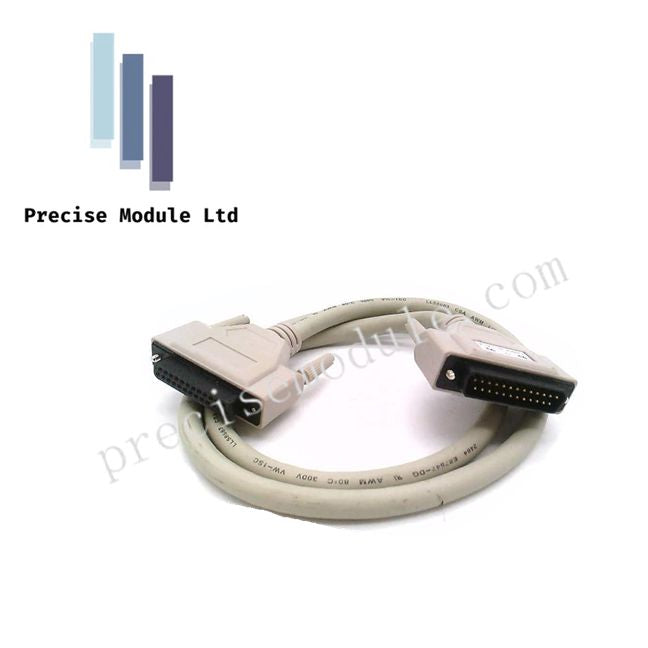

The IC693CBL341 is a high-performance, shielded I/O expansion cable for GE Fanuc Series 90-30 and PACSystems RX3i controllers. It enables reliable communication between the CPU rack and expansion bases, extending the system’s physical reach within cabinets or across multiple racks. This cable is essential for high-speed, low-latency data transfer in demanding industrial control environments.

Technical Specifications

• Model: IC693CBL341

• Cable Type: Shielded I/O Expansion

• Length: 10 feet (3 meters)

• Connectors: 25-pin D-sub Male-to-Male

• Wire Gauge: 28 AWG

• Compatibility: GE Series 90-30, PACSystems RX3i

• Max Multi-Rack Support: Up to 7 expansion bases per CPU

• Jacket: Industrial-grade, resistant to oil, moisture, and mild chemicals

• Signal Integrity: Twisted-pair wiring with EMI/RFI shielding

Key Features

• Heavy-duty shielding prevents electromagnetic interference

• Supports high-speed parallel bus communication

• Industrial-grade jacket ensures mechanical durability

• Secure thumbscrew connectors prevent vibration-induced faults

• Plug-and-play installation; automatic detection by PLC hardware

Applications

Designed for extending I/O racks, connecting remote expansion bases, and enabling high-speed CPU-to-I/O communication in factory automation, process control, and machine monitoring.

FAQ

Q: Can multiple IC693CBL341 cables be daisy-chained?
A: Yes, but total cable length must not exceed 50 feet (15 meters) without isolation hardware.

Q: Does it require software configuration?
A: No, the PLC automatically detects connected expansion racks.

SEO Title

GE IC693CBL341 Shielded I/O Expansion Cable Series 90-30 RX3i

SEO Meta Description

GE IC693CBL341 shielded I/O expansion cable enables high-speed, reliable rack-to-rack communication for Series 90-30 and RX3i PLC systems. Order now for robust connectivity.

Product Type

I/O Expansion Cable

Tags

Series 90-30, RX3i, I/O Expansion, Shielded Cable

Shopify Product Title: IC697PWR722

GE Fanuc Series 90-70 IC697PWR722 | 24VDC Power Supply Module

Product Description

Overview

The IC697PWR722 is a regulated 24VDC power supply designed for GE Fanuc Series 90-70 programmable controllers. It delivers stable power for both single-rack and dual-rack configurations, with built-in protections that ensure safe and reliable operation in industrial environments.

Technical Specifications

• Model: IC697PWR722

• Series: GE Fanuc Series 90-70

• Input Voltage: 21–32 VDC, Nominal 24 VDC

• Input Power: 156 W at full load

• Output Power: 90 W maximum

• Output Voltages: +5V, +12V, -12V regulated

• Overvoltage Protection: 6–7 V

• Inrush Energy: 22 J at 32 VDC

• Operating Temperature: 0–60°C

• Shock Resistance: 15 G for 11 ms

• Weight: 3.0 lbs

Key Features

• Provides stable regulated DC output for reliable PLC operation

• Supports single and dual-rack configurations

• Short-circuit and overvoltage protection for enhanced safety

• Compact, industrial-grade design suitable for harsh environments

• Efficient power conversion minimizes heat output

Applications

Ideal for powering Series 90-70 PLC systems in machine control, process automation, and distributed industrial I/O applications.

FAQ

Q: Can this module support dual-rack setups?
A: Yes, it can power both single and dual-rack Series 90-70 configurations.

Q: Is additional cooling required?
A: Standard convection cooling is sufficient for operation between 0–60°C.
