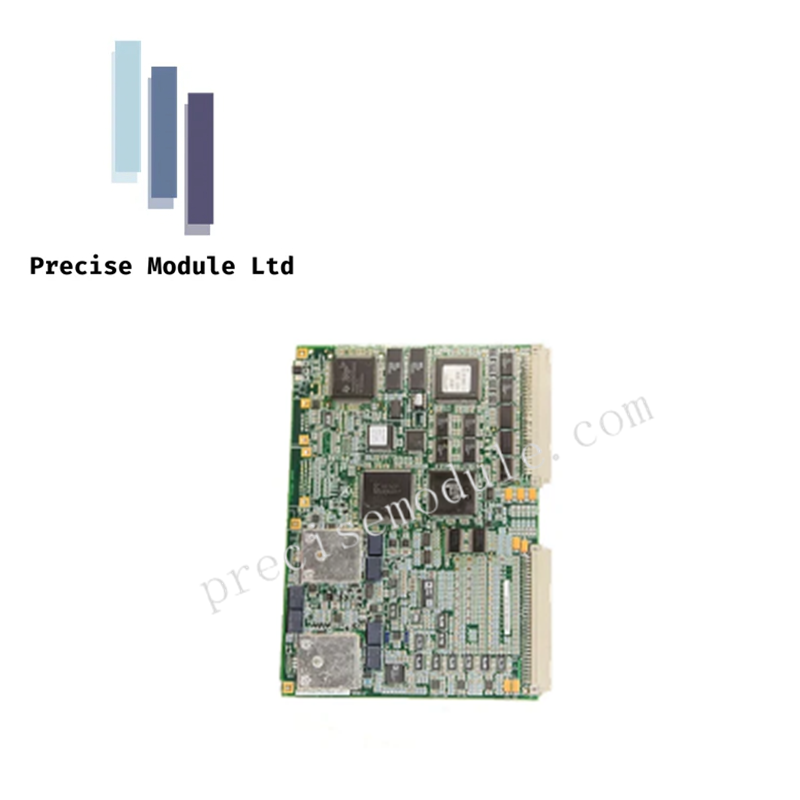

GE Fanuc IS200VAICH1DAA VAIC Analog Input/Output Board

Technical Overview

The IS200VAICH1DAA is a high-density Analog Input/Output (VAIC) module engineered for the General Electric Mark VI Speedtronic control system. This VME-based board acts as a critical interface for process instrumentation, facilitating the precise monitoring and control of industrial actuators and sensors. A defining feature of the IS200VAICH1DAA is its enhanced output drive capability; it supports higher load resistances for 20 mA circuits, delivering up to 18 V directly at the terminal board's screw terminals. Designed for mission-critical reliability, the VAIC board supports both Simplex and Triple Modular Redundant (TMR) architectures, ensuring continuous turbine operation even in the event of a single-channel fault.

Detailed Technical Specifications

The following specifications detail the electrical and architectural properties of the IS200VAICH1DAA (Revision H1DAA):

• Manufacturer: GE Industrial Systems (General Electric Company USA)

• Module Type: Analog Input/Output Board (VAIC)

• Control System: Mark VI Speedtronic

• VME Rack Occupancy: Single Slot

• Analog Input Capacity: 20 Differential or Single-ended inputs

• Analog Output Capacity: 4 High-resolution output channels

• Output Signal Ranges: Configurable for 4-20 mA or 0-200 mA (High-current drive)

• Terminal Voltage Output: Up to 18 V available for 20 mA drive circuits

• Onboard Intelligence: Integrated D/A monitoring and current scaling verification

• Diagnostic Suite: 5 distinct hardware checks for real-time fault detection

• TMR Support: Fully compatible with Triple Modular Redundant voting logic

• Compatible Terminal Boards: TBAIH1C or any revision of the STAI series

Advanced Diagnostics and Signal Integrity

The IS200VAICH1DAA is equipped with a sophisticated diagnostic engine that performs continuous background checks on all I/O health. It monitors the Digital-to-Analog (D/A) converters and verifies that the output current matches the commanded value from the VME processor. This "loopback" verification prevents erroneous control signals from reaching field devices. In a TMR configuration, the board works in tandem with two other VAIC modules, where the Mark VI system performs hardware voting to select the median value, providing an elite layer of fault tolerance for critical process loops.
