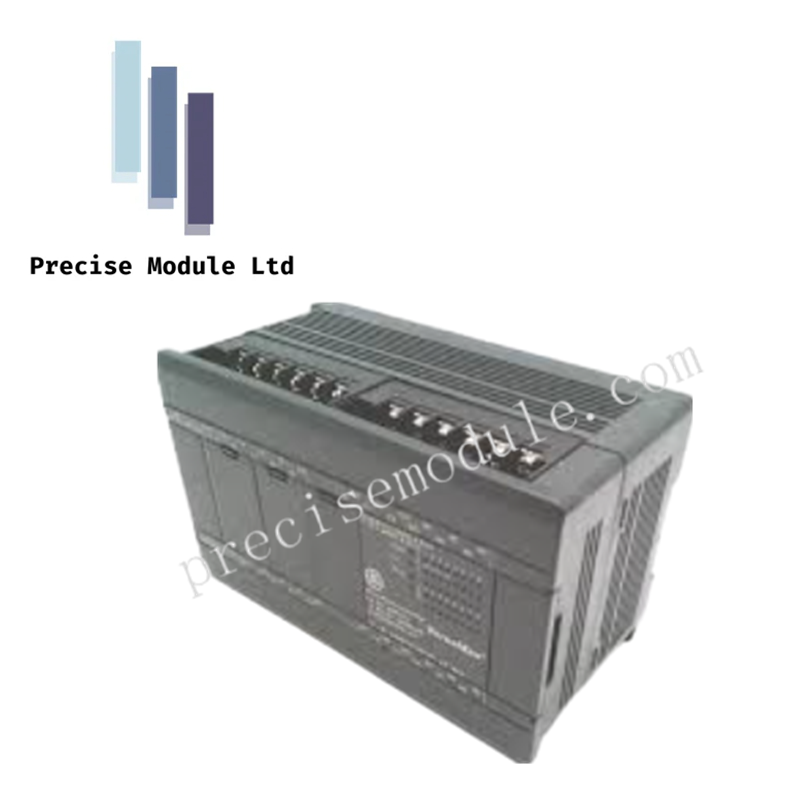

GE IC200UDR020 VersaMax Micro 20-point PLC

Technical Overview

The GE IC200UDR020 is a compact and highly efficient VersaMax Micro 20-point PLC designed for small to mid-sized industrial automation. Powered by a 20 MHz RISC processor, this controller delivers the high-speed logic execution required for discrete manufacturing, machine control, and process automation. Its modular design allows for significant scalability, supporting up to four additional expansion units to meet evolving system requirements.

The IC200UDR020 is engineered for reliability in demanding environments, featuring a wide operating temperature range and robust electrical isolation. With 12 digital inputs and 8 heavy-duty relay outputs, it provides a versatile foundation for controlling actuators, motors, and sensors while maintaining a minimal footprint in the control cabinet.

Detailed Technical Specifications

• Processor & Performance: 20 MHz RISC processor for rapid instruction execution.

• Memory Configuration:

• Logic Capacity: 24K words for user logic.

• Registers: 32K words of register memory.

• Storage: 64KB RAM and 128KB non-volatile Flash memory.

• I/O Configuration:

• Digital Inputs: 12 points (24 VDC).

• Relay Outputs: 8 points (2.0A per point capacity).

• Expansion & Scalability:

• Supports up to 4 expansion modules (digital or analog).

• Maximum system capacity of 132 I/O points.

• Supports up to 16 analog inputs and 8 analog outputs via expansion.

• Electrical Requirements: 24 VDC input with a low 10W power consumption profile.

• Communication Interface:

• Port 1: RJ-45 (RS-232) for programming and HMI interface.

• Port 2 (Optional): Support for RS-485, USB, or 10/100 Mbps Ethernet.

• Software Compatibility: Fully compatible with Proficy Machine Edition (PME).

• Environmental Resilience: Operates from -20°C to +60°C.

• Physical Profile: 7.6 cm (L) × 15 cm (W) × 9 cm (H).

• Mass: 500g (1.10 lbs).

Application and System Integration

The IC200UDR020 excels in applications where space is at a premium but high-performance control is non-negotiable. It is frequently utilized in packaging machinery, pumping stations, and HVAC control systems. Its ability to integrate with Ethernet and RS-485 networks ensures it can serve as a standalone controller or as a distributed I/O node within a larger plant-wide architecture.
