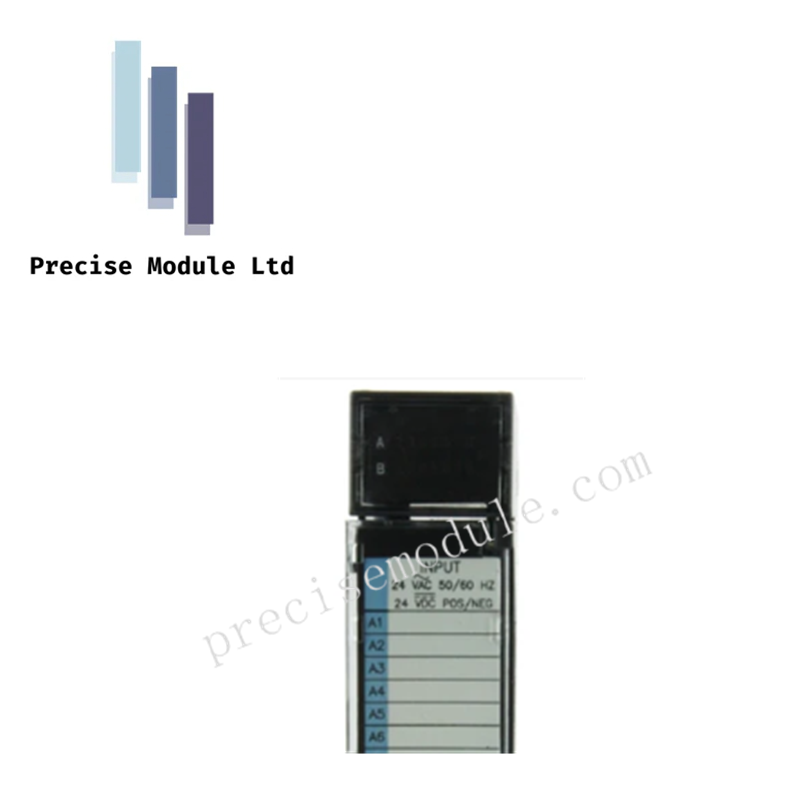

GE IC660EBD024 Genius I/O Discrete I/O Block

Technical Overview

The IC660EBD024 is a highly versatile, standalone 32-circuit discrete I/O block from the GE Fanuc Genius I/O family. This module is designed for distributed control architectures, allowing I/O to be placed close to the field devices rather than centralized in a PLC rack. Its defining feature is its universal circuit configuration: each of the 32 circuits can be independently programmed as either an input or an output. Supporting both sourcing and sinking configurations, the IC660EBD024 provides a "software-configurable" interface for a wide array of industrial components, including proximity sensors, pilot lights, and contactors.

Detailed Technical Specifications

The following hardware parameters define the electrical limits and environmental tolerances of the IC660EBD024:

• Manufacturer: GE Fanuc (Emerson Automation)

• Model Number: IC660EBD024

• I/O Density: 32 Configurable Circuits (Input or Output)

• Voltage Range: 12 VDC to 24 VDC

• TTL Compatibility: Supports 5V for sink inputs

• Output Capacity: 0.5 A maximum per circuit

• Isolation: 850V Block-to-Block isolation for superior noise immunity

• Power Consumption: 150 mA (Typical) / 300 mA (Maximum)

• Thermal Characteristics:

• Min Heat Dissipation: 11 W (8 inputs active)

• Max Heat Dissipation: 18 W (32 outputs active at full load)

• Environmental Ratings:

• Operating Temp: 0°C to 60°C (32°F to 140°F)

• Storage Temp: -40°C to 100°C (-40°F to 212°F)

• Humidity: 5% to 95% (Non-condensing)

• Physical Dimensions: 22.44 cm x 8.89 cm x 10.00 cm (8.83" x 3.50" x 3.94")

Smart Diagnostics and Self-Protection

Unlike standard I/O modules, Genius blocks like the IC660EBD024 possess internal intelligence. The block features resettable, self-protecting circuits that guard against overcurrent and short circuits. If a fault is detected on an output, the block can automatically shut down the affected circuit and report the specific diagnostic error (e.g., "Short Circuit" or "Open Wire") back to the CPU. This significantly reduces troubleshooting time by identifying the exact field device or wiring segment that failed without requiring manual testing with a multimeter.
