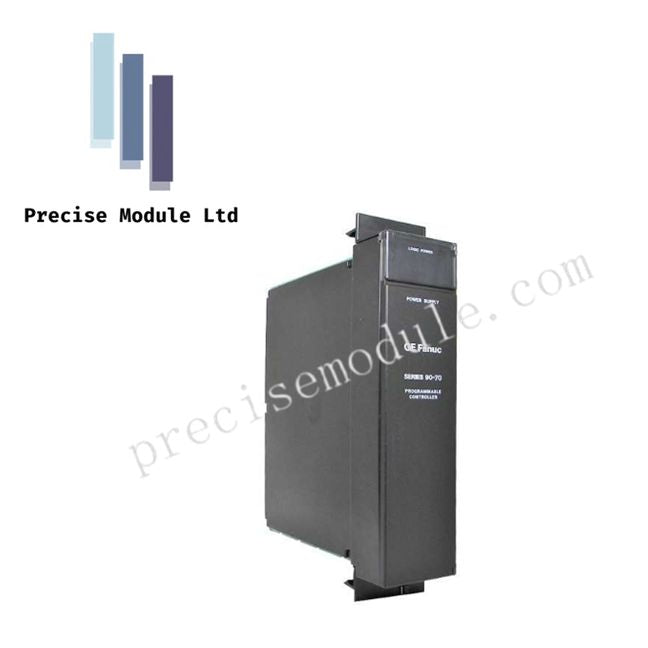

GE IC697PWR722 Series 90-70 Power Supply Module | High-Capacity PSU

Product Description

Overview

The GE IC697PWR722 is a robust 24 VDC power supply module designed for the GE Fanuc Series 90-70 programmable controller system. Delivering multiple regulated DC outputs, this module ensures reliable operation under demanding industrial conditions and supports both standalone and rack-mounted installations.

Key Features

Multiple Regulated Outputs: Provides stable +5VDC, +12VDC, and -12VDC for CPU, I/O, and option modules
High Output Capacity: 90W total power with 16.5A on +5VDC rail
Electronic Protection: Overvoltage, overcurrent, and short-circuit protection on all outputs
Logic Shutdown Support: TTL-compatible signal for coordinated system start/stop
Flexible Installation: Rack-mounted in leftmost slot or standalone setup
Dual-Rack Capability: Supports powering a second rack using IC697CBL700 cabling
Industrial Reliability: Designed for continuous operation in critical control environments

Technical Specifications

Application Context

This module is ideal for high-speed CPU applications, dense analog I/O configurations, or systems requiring high reliability in sectors like energy management, water treatment, and manufacturing. It ensures stable PLC operation even under fluctuating input voltages and heavy load conditions.

FAQ

Q: Can the IC697PWR722 power multiple racks?
A: Yes, with IC697CBL700 cabling, it can support a second Series 90-70 rack.

Q: What protection features does it have?
A: Built-in overcurrent, overvoltage, and thermal shutdown protections safeguard both the module and connected PLC components.

Q: Is battery backup supported?
A: Yes, it includes a connector for a lithium battery to maintain PLC memory and clock during power outages.
