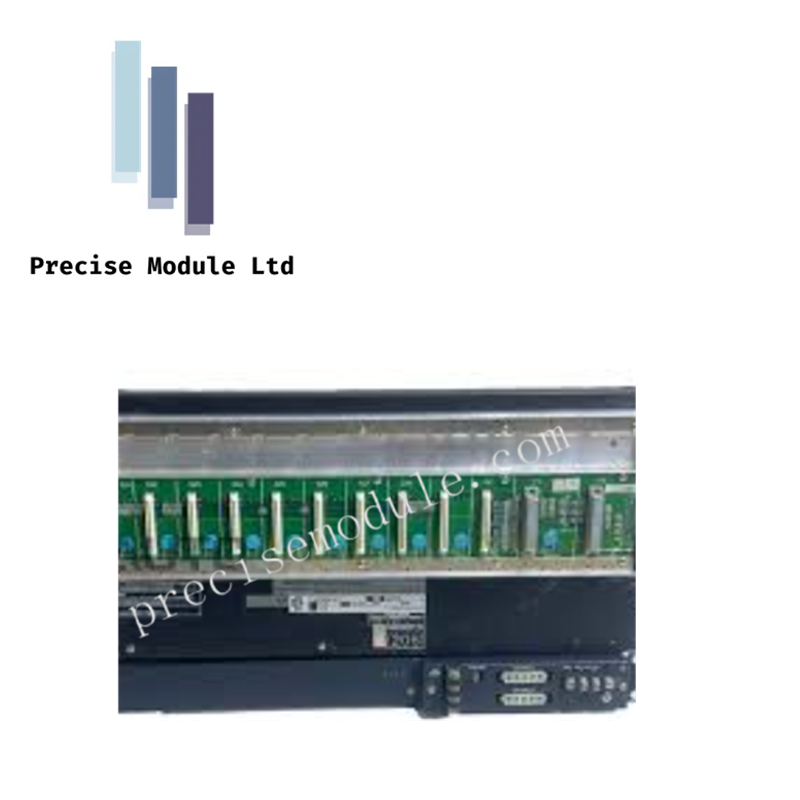

The GE IS200EACFG2ABB is a specialized Exciter AC Feedback (EACF) board designed for the EX2100 excitation control system. This module plays a critical role in monitoring the exciter Potential Power Transformer (PPT) AC supply voltage and current. By providing precise feedback to the control system, it ensures optimal excitation performance and stability for high-power industrial applications.
Technical Specifications
Model Number:IS200EACFG2ABB
Manufacturer: General Electric (GE)
Product Type: Exciter AC Feedback Board
Product Series: Mark VI / EX2100
Input Voltage Rating: Up to 1000 V rms (EACFG2 variant)
Measurement: 3-phase voltage and current
Connection: Terminals for two flux/air core coils
Cable Distance: Supports up to 90 m distance to EBKP backplane
Dimensions: 16 cm x 16 cm x 12 cm
Weight: 0.8 kg
Functional Capabilities
The GE IS200EACFG2ABB is equipped with internal transformers specifically designed for accurate 3-phase voltage measurement. It distinguishes itself from the EACFG1 version by supporting higher input voltages, rated up to 1000 V rms, making it suitable for medium-voltage excitation systems. The board features terminals for connecting two flux or air core coils, allowing for comprehensive monitoring of the magnetic field status.
