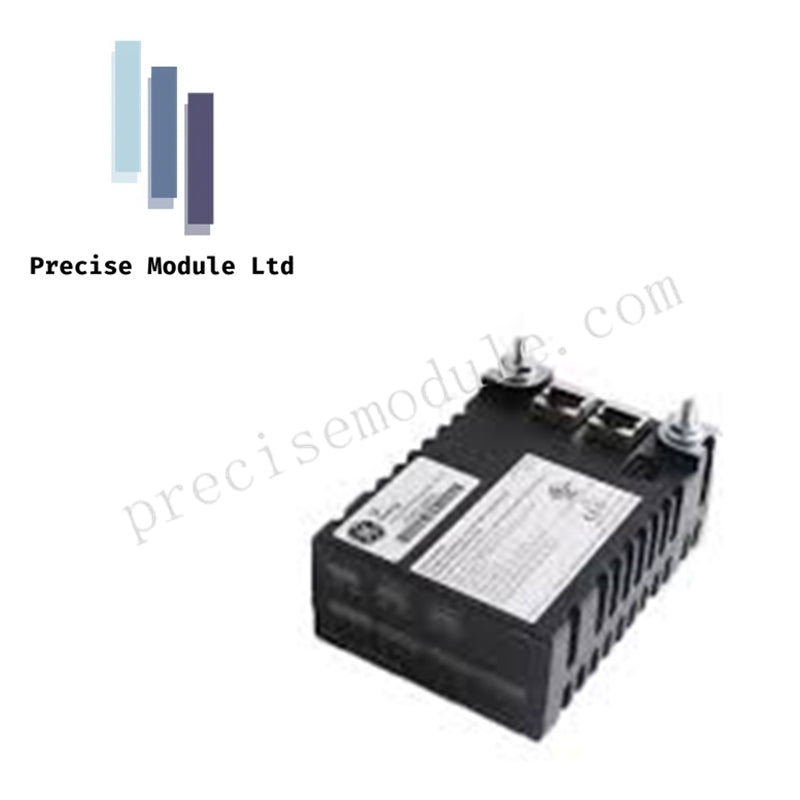

GE IS200TTURH1CFD | Turbine Terminal Board | Mark VIe | Speed & Shaft Monitoring

Product Description

Product Overview

The GE IS200TTURH1CFD is a high-performance Turbine Terminal Board designed for integration with the Mark VIe Control System. This terminal board serves as the interface for critical turbine signals such as speed sensing, synchronization, and shaft voltage monitoring. When paired with the IS230TNTRH1C I/O Pack, the board converts analog turbine data into digital signals, enabling seamless communication with the Mark VIe controller.

Key Technical Specifications

1. Signal Inputs
   The IS200TTURH1CFD is engineered to handle high-precision turbine data, ensuring accurate monitoring and control:

• Passive Speed Inputs: Accepts signals from magnetic pickups for measuring turbine RPM.

• Active Speed Inputs: Interfaces with active proximity probes for enhanced speed monitoring accuracy.

• Generator Voltage/Frequency: Monitors the generator and bus voltage to ensure synchronization.

• Shaft Voltage/Current Monitoring: Includes specialized circuits to monitor shaft grounding and potential electrical discharge, preventing damage to turbine bearings.

2. Physical Design & Mounting

• Form Factor: Available in double-width or standard vertical terminal block configuration to fit various cabinet designs.

• Termination: Two sets of 24 screw terminals for easy and secure field wiring connections.

• I/O Pack Compatibility: Compatible with the IS230TNTRH1C or IS200TNTR series I/O packs, connecting via D-type connectors for efficient digital signal processing.

3. Hardware Features
   The IS200TTURH1CFD includes several features to ensure reliable operation in industrial environments:

• Redundancy: Supports Simplex, Dual, or TMR (Triple Modular Redundant) configurations for increased system reliability.

• Filtering: Built-in high-frequency noise filters and surge protection to maintain signal integrity in noisy environments.

• Cold End Compensation: Useful for applications involving thermocouple signals routed through specific turbine boards (though primarily focused on speed and synchronization).

Module Comparison: IS200TTURH1CFD vs IS230TNTRH1C

Environmental & Operating Limits

The IS200TTURH1CFD is designed to operate in demanding industrial environments. It can withstand a wide range of conditions typically found in power plants and other industrial facilities.

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

• Humidity: 5% to 95% non-condensing

• Vibration Resistance: Meets seismic and operational vibration resistance standards as specified by GE Mark VIe.

• Conformal Coating: The CFD suffix indicates that the board is treated with a special conformal coating for enhanced protection against moisture, dust, and corrosive chemicals.

Applications

The IS200TTURH1CFD is ideal for gas and steam turbine power generation systems. It is used extensively in environments that require precise monitoring and control of turbine parameters, such as:

• Gas Turbine Power Plants: Ensures safe and efficient turbine operation by accurately measuring speed, shaft voltage, and synchronizing the generator.

• Steam Turbine Systems: Used for speed sensing, shaft monitoring, and generator synchronization to optimize performance.

• Turbine Protection Systems: The IS200TTURH1CFD ensures the turbine operates within safe parameters, preventing mechanical failure and damage.

Maintenance and Handling Tips

1. ESD Sensitivity: Handle the IS200TTURH1CFD carefully as it contains sensitive electronic components. Always use an anti-static wrist strap when working with the unit to avoid damage.

2. Visual Inspection: Regularly inspect the board for signs of wear, such as discoloration of components or damage to the terminal blocks.

3. Firmware Compatibility: Ensure that the IS200TTURH1CFD is used in conjunction with the compatible IS230TNTRH1C or IS200TNTR I/O packs to ensure correct data processing and communication.

4. Conformal Coating Maintenance: Check the condition of the conformal coating periodically, as it protects the board from corrosion and damage in harsh industrial environments.

FAQs

Q: What is the role of the IS200TTURH1CFD in turbine control?
A: The IS200TTURH1CFD acts as a termination point for critical turbine signals, such as speed, shaft voltage, and synchronization data. It ensures that these analog signals are converted into digital signals for processing by the Mark VIe Control System.

Q: Can the IS200TTURH1CFD board be used in a redundant configuration?
A: Yes, the IS200TTURH1CFD supports Simplex, Dual, and TMR (Triple Modular Redundant) configurations, which increases system reliability by ensuring turbine operation continues safely even if one processor fails.

Q: What is the difference between the IS200TTURH1CFD and the IS230TNTRH1C?
A: The IS200TTURH1CFD is a Turbine Terminal Board that handles signal termination and conditioning, while the IS230TNTRH1C is an I/O pack that digitizes and processes these signals for communication with the Mark VIe Control System.
