GE IS220PAICH1BG | Analog Input I/O Pack | High-Performance Signal Processing

Overview

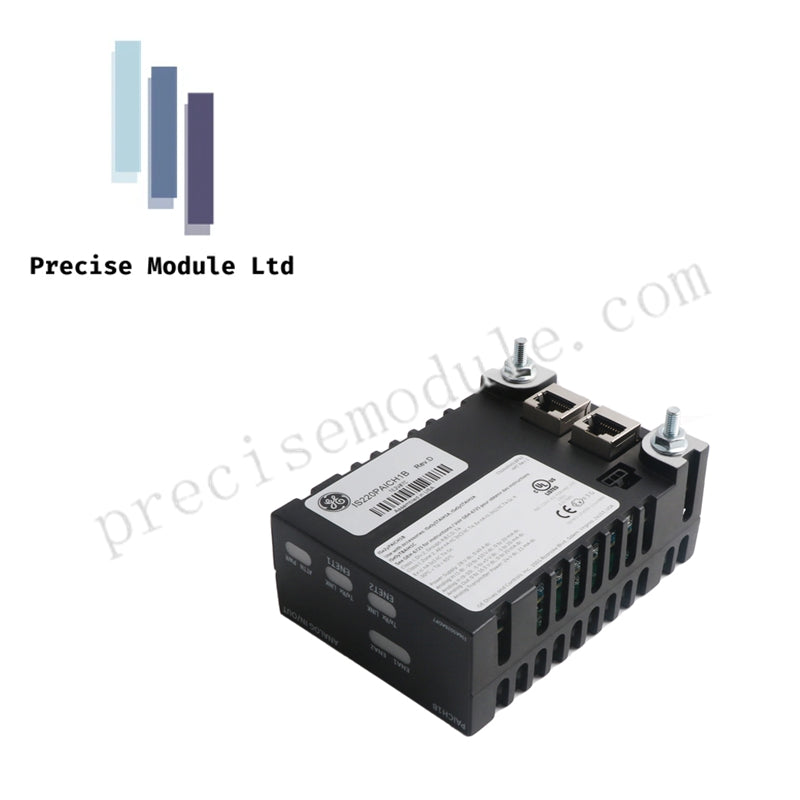

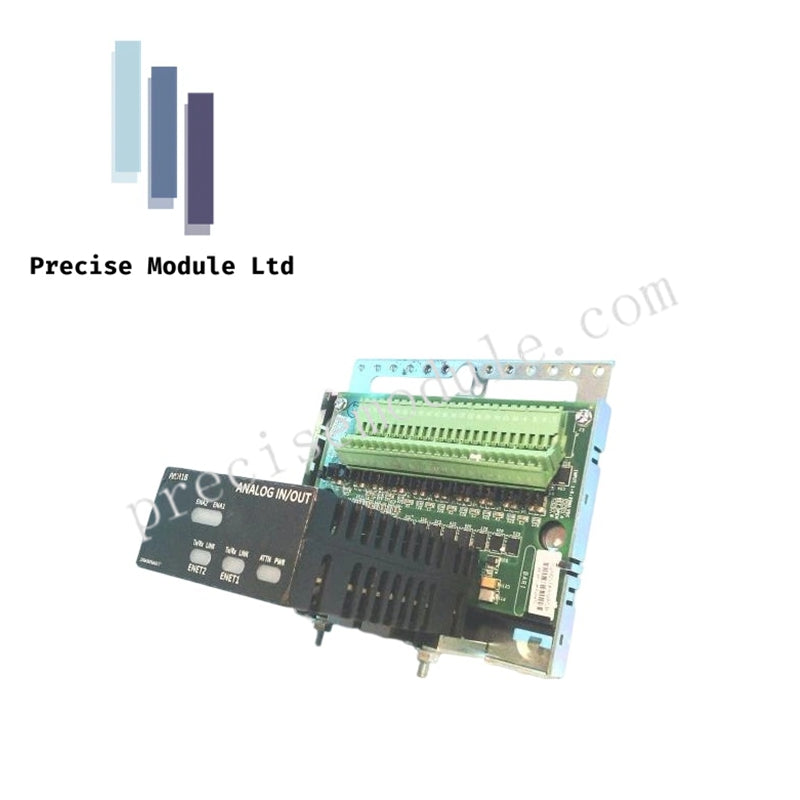

The GE IS220PAICH1BG is an advanced Analog Input I/O Pack designed for use in the Mark VIe control system. This high-performance module provides the capability to process and digitize differential analog signals with enhanced diagnostics. It offers 10 input channels and integrates seamlessly with the IS230SNAIH2A Simplex Analog Input Terminal Board. The BG revision features conformal coating, offering protection against harsh industrial environments, ensuring the pack's longevity and reliability.

Key Features and Specifications

1. Input Capabilities

• Current Inputs: 0–20 mA or 4–20 mA (using 250 Ω precision resistors).

• Voltage Inputs: ±5 V or ±10 V DC for versatile signal measurement.

• Number of Channels: 10 Differential Analog Inputs.

• Input Ranges:

• Transmitter Power: Supplies 24 VDC to field transmitters across all 10 channels (fused on the connected terminal board).

2. Performance & Conversion

• A/D Conversion: 16-bit resolution ensures precise signal digitization.

• Accuracy: ±0.1% of full-scale input range at room temperature.

• Sampling Rate: Supports fast data acquisition, typically at 10 ms or 40 ms frame rates.

• Common Mode Rejection: > 80 dB at 60 Hz, ensuring stable operation even in noisy environments.

3. Processor & Communication

• Processor: Local BPPx processor handles signal scaling, diagnostics, and real-time data conversion.

• Network: Dual 100BASE-TX RJ-45 Ethernet ports for redundant Ionet connectivity, ensuring reliable communication with the system.

• LED Indicators: The I/O pack features status LEDs for monitoring Power, Link, Ethernet Traffic, and Diagnostic Faults.

4. Diagnostics & Maintenance

• Current Loop Verification: Detects wire breaks or sensor failures by reading the actual loop current.

• Transmitter Power Monitoring: Alerts the system if the 24 VDC power fuse is blown, ensuring field transmitters operate correctly.

• Hardware Limit Checks: Monitors internal power supplies and temperatures to protect the system from malfunctions.

• Configuration Verification: Compares the Board ID from the IS230SNAIH2A assembly with the system’s settings, preventing configuration mismatches.

Comparison: IS220PAICH1BG vs. IS230SNAIH2A

Environmental & Operational Ratings

• Operating Temperature: -30°C to +65°C (—22°F to +149°F), making it suitable for use in various industrial environments.

• Humidity: Operates effectively within 5% to 95% non-condensing humidity levels.

• Coating: The BG revision is conformal coated, providing enhanced protection against moisture, chemical exposure, and environmental contaminants.

• Hazardous Locations: Class I, Division 2 rated, suitable for hazardous environments.

Applications

The IS220PAICH1BG is designed for use in applications where high-density analog signal acquisition and processing are needed, particularly in industrial automation systems such as:

• Field Data Acquisition: Interfaces with sensors such as pressure, temperature, and flow meters in control systems.

• System Integration: Provides precise, fast, and reliable signal conversion for applications with complex automation requirements.

• Power Plant Control Systems: Ensures accurate monitoring of key industrial processes by converting analog signals for controller input.

FAQ

Q: What types of signals can the IS220PAICH1BG process?
A: The IS220PAICH1BG processes both current (0–20 mA, 4–20 mA) and voltage (±5 V, ±10 V DC) signals, making it ideal for a variety of field sensors and transmitters.

Q: How does the IS220PAICH1BG ensure signal reliability?
A: The module features 16-bit A/D conversion, common mode rejection greater than 80 dB at 60 Hz, and advanced diagnostics like current loop verification to ensure high signal accuracy and system integrity.

Q: Can this I/O pack be used in a redundant configuration?
A: The IS220PAICH1BG supports dual Ethernet ports for redundant Ionet connectivity, providing network redundancy. However, the associated IS230SNAIH2A assembly is a simplex configuration.

Q: What kind of protection is provided for the field wiring?
A: The system includes MOVs for surge protection and fuses for 24V transmitter power, ensuring the system remains operational even in the presence of electrical faults.
