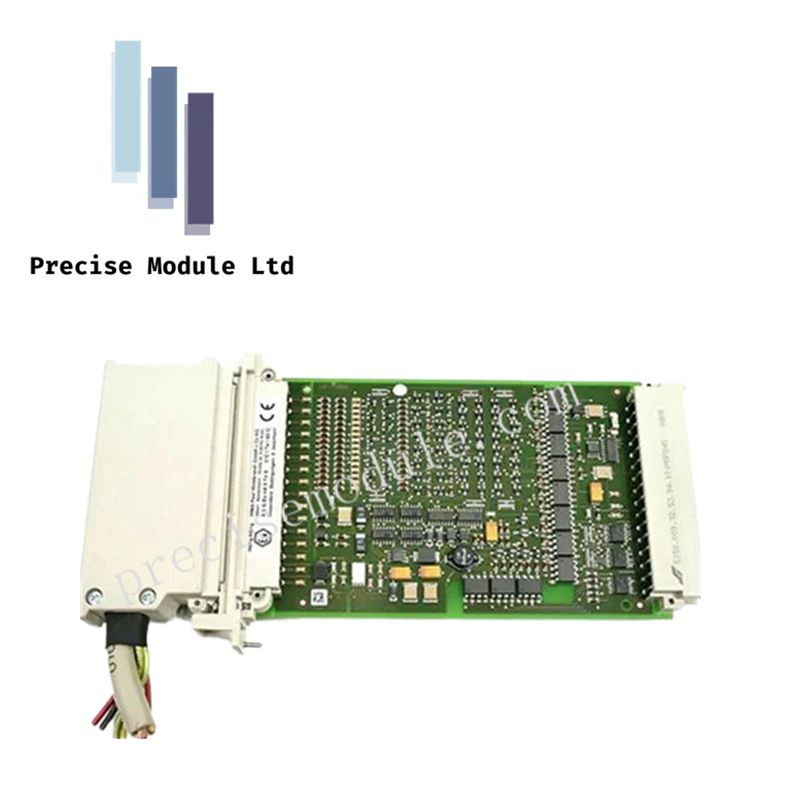

HIMA 90900 Subrack with Bus PCB

Manufacturer: HIMA
Product No.: 90900
Condition：in Stock
Product Type: Subrack with Bus PCB
Product Origin: Germany
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

HIMA 90900 Subrack with Bus PCB

Overview

The HIMA 90900 is a subrack with integrated bus PCB designed specifically for the HIMA Planar4 system. It accommodates up to 20 functional modules across slots 1–20, while slot 21 is dedicated to the communication module.

The 90900 subrack ensures structured 24 V DC power distribution with a maximum current capacity of 16 A, supported by soldering strips, socket connectors, and an integrated fault signal loop. Its rugged aluminium construction and DIN-standard compatibility provide long-term reliability in safety-critical environments, including chemical plants, oil & gas facilities, and power generation systems.

Technical Specifications

Feature	Specification
Model Number	HIMA 90900
Manufacturer	HIMA
Product Type	Subrack with Bus PCB
Material	Aluminium, chromated
Width	482.6 mm (19 inches)
Height	177 mm (4 Units)
Depth	270 mm
Spacing Units	84 SU (1 SU = 5.08 mm)
Module Compatibility	DIN 41494, 4 SU each
Slots	20 module slots + 1 communication slot
Connectors	DIN 41612, type F, rows z and d
Connection Type	Soldering
Power Supply	24 V DC, EL+ with 16 A fuse or breaker
Current Capacity	Maximum 16 A
Communication Slot	Slot 21 reserved for comms module
Fault Signal Loop	Pins z26–d26 linked to EC terminals
Operating Temperature	−25°C to +60°C
Protection Class	IP20
Country of Origin	Germany
