HIMA F7531 8-Channel Input Module | Safety Relay Amplifier | PES Component

Product Description

Overview

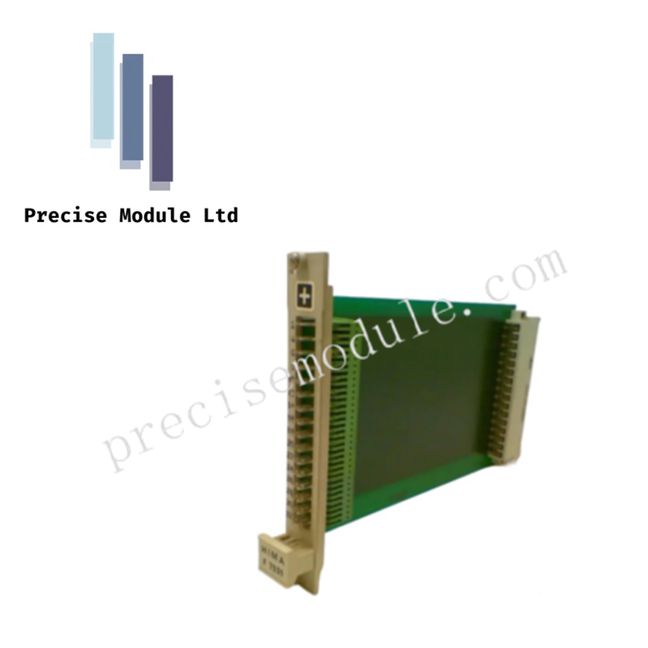

The HIMA F7531 is a high-reliability 8-channel safety input module designed for HIMA HIMatrix programmable electronic systems (PES). It interfaces seamlessly with H41 and H51 series controllers, providing robust signal amplification and relay switching for critical safety functions. This module is widely used in high-stakes industrial sectors such as oil & gas, chemical processing, and energy generation.

Key Features

High Safety Performance

The F7531 ensures maximum functional safety compliance:

• Safety Integrity Level: SIL 3 (IEC 61508)

• Performance Level: PL e / Category 4 (EN ISO 13849-1)

• Electrical Isolation: Optical and galvanic isolation protect the controller from field surges

Precision Signal Handling

Engineered for accurate analog monitoring of process variables:

• Signal Type: 0/4–20 mA current inputs

• Input Resolution: 12-bit high granularity

• Measurement Accuracy: Typically <0.1% full-scale

• Channel Isolation: Independent channels with <0.1% crosstalk

Built-In Diagnostics

The F7531 continuously validates both wiring and internal electronics:

• Detects open circuits and short circuits in connected sensors

• Monitors crosstalk between channels

• Performs internal self-tests on A/D converters and memory

Industrial-Grade Design

Designed for demanding process environments:

• Response Time: ≤10 ms per channel for rapid ESD and F&G reactions

• Communication: SafeEthernet interface for secure and reliable data transfer

• Maintenance: Hot-swappable module design with LED indicators for power, communication, and channel status

• Operating Temperature: -20°C to +60°C

Technical Specifications

Applications

The HIMA F7531 is suited for applications requiring immediate and reliable safety response:

• Emergency Shutdown Systems (ESD)

• Fire & Gas (F&G) Detection Systems

• Pressure, Flow, and Temperature Monitoring in hazardous processes

• Decentralized safety control setups to reduce wiring complexity

FAQ

Q: Can the F7531 module be installed in existing HIMatrix racks?
A: Yes, it is compatible with H41/H51 racks and supports hot-swapping in suitable configurations.

Q: What signal types can the F7531 process?
A: Standard 0/4–20 mA current input signals from field transmitters and sensors.

Q: Is professional installation required?
A: Yes, certified personnel must perform installation to maintain SIL rating compliance.

Q: Are there alternative models for higher channel density?
A: HIMA offers F7541 and F7551 models for higher channel or mixed signal configurations.
