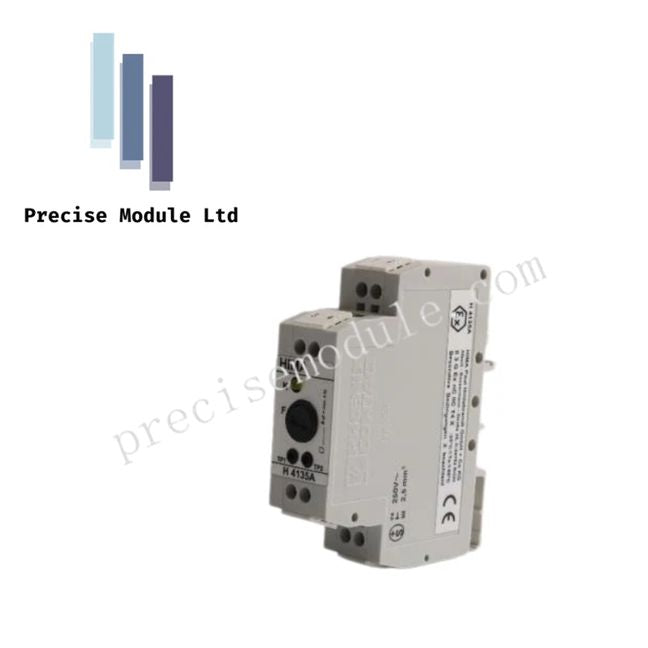

HIMA H4135A Safety Relay Module | HIQuad System SIL 3 Interface

HIMA H4135A Safety Relay Module | HIQuad System SIL 3 Interface

  • Manufacturer: HIMA

  • Product No.: H4135A

  • Condition：in Stock

  • Product Type: Safety-Related Relay

  • Product Origin: Germany

  • Payment:T/T, Western Union

  • Weight: 1150g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Product Description

Overview

The HIMA H4135A is a high-integrity safety relay module engineered for integration with HIMA’s HIQuad (H41q/H51q) programmable safety systems. Designed for SIL 3 applications, it provides reliable electrical isolation and safe switching between safety controllers and field actuators, ensuring critical process safety functions are executed under all conditions.

Key Features

High Safety Integrity

  • Certified for SIL 3 according to IEC 61508 and Cat.4 / PL e per IEC 62061

  • Quad-channel design with diverse internal relay architecture to prevent common-cause failures

  • Safe galvanic isolation between input control circuits and output contacts (500 VAC RMS)

Reliable Switching Performance

  • Independently monitored relay channels capable of both NO and NC configurations

  • Hard gold-plated AgNi contacts for long-term durability in low-signal or higher power switching

  • Rapid response with ~8 ms switching time and ~6 ms reset time

  • Rated for over 30 million mechanical cycles and 250,000 electrical cycles at rated load

Installation and Physical Attributes

  • Compact module: 12.5 mm (W) × 100 mm (H) × 100 mm (D)

  • Lightweight: approximately 150 g

  • Standard 35 mm DIN rail mounting; supports horizontal or vertical installation

  • Wiring up to 2.5 mm² (AWG 14) compatible

Technical Specifications

Parameter Specification
Model H4135A
Relay Outputs 4 independently monitored channels
Contact Type NO / NC configurable per channel
Switching Capacity Resistive: 250 VAC / 30 VDC, 5 A; Inductive (L/R = 7 ms): 250 VAC / 30 VDC, 3 A
Input Voltage 24 VDC ±10%
Output Voltage 24 VDC max
Quiescent Current 60 mA max
Operating Current (per channel) 100 mA max
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +85°C
Humidity 5% to 95% RH, non-condensing
Isolation Channel-to-channel: 500 VAC RMS; Channel-to-ground: 500 VAC RMS
Protection Class IP20
Safety Certification IEC 61508 SIL 3, IEC 62061 Cat.4 / PL e, EN 50159-1 SIL 3
Compliance CE, UL, cUL

Applications

The H4135A is ideal for high-integrity safety functions across industries such as oil & gas, petrochemicals, and power generation. Typical uses include:

  • Emergency Shutdown (ESD) circuits

  • Burner Management Systems (BMS)

  • Fire & Gas (F&G) system logic

  • Interface between safety PLCs and actuators (valves, motors, alarms)

FAQ

Q: What safety level does H4135A support?
A: It is certified for SIL 3 and PL e applications, suitable for high-integrity safety functions.

Q: Can outputs be configured as Normally Open and Normally Closed?
A: Yes, each relay channel is independently configurable as NO or NC.

Q: What is the maximum operating temperature?
A: The module operates reliably from -20°C to +60°C.

Q: Can the module be installed vertically on a DIN rail?
A: Yes, it supports both horizontal and vertical mounting orientations without extra clearance.
