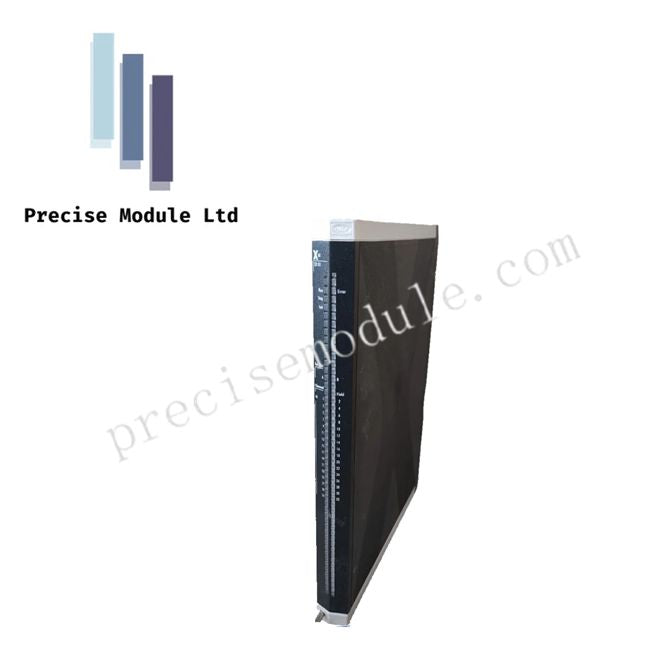

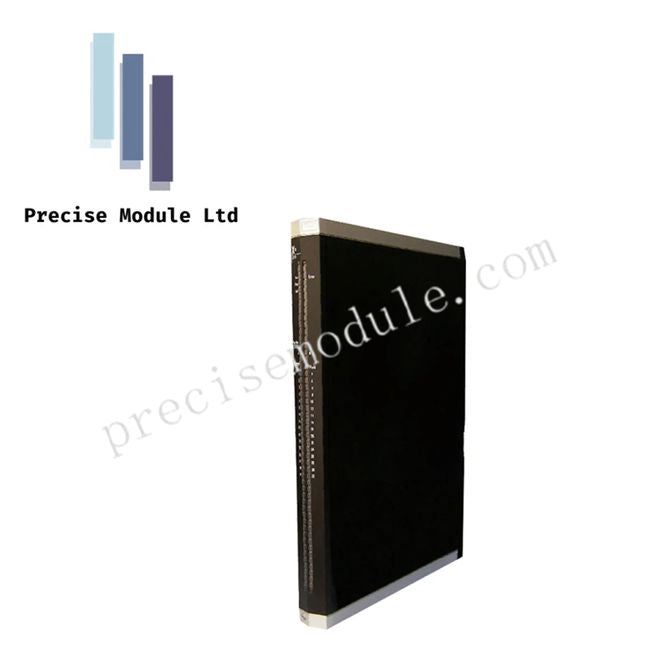

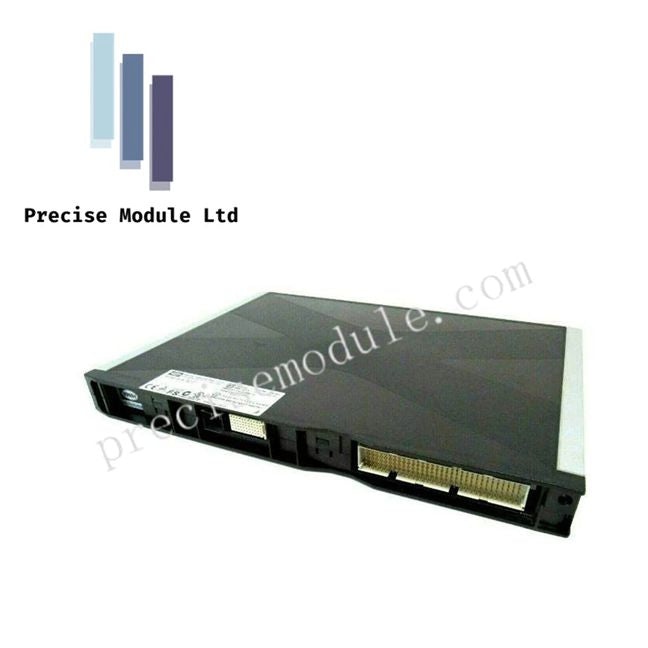

HIMA X-AI 32 01 Analog Input Module | HIMax Safety System

HIMA X-AI 32 01 Analog Input Module | HIMax Safety System

  • Manufacturer: HIMA

  • Product No.: X-AI 3201

  • Condition：in Stock

  • Product Type: High-Density Analog Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1000g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Product Description

Overview

The HIMA X-AI 32 01 is a 32-channel analog input module designed for the HIMax safety automation platform. Engineered for high-density signal acquisition, it delivers precise analog-to-digital conversion while supporting SIL 3 safety applications. Its robust diagnostics, integrated transmitter supplies, and high immunity to electrical noise make it suitable for complex, safety-critical industrial installations.

Applications

Ideal for environments demanding high availability and safety integrity:

  • Safety Instrumented Systems (SIS) in oil and gas plants

  • Chemical process monitoring and control

  • Power generation facilities

  • Large-scale industrial automation requiring dense sensor networks

  • Systems requiring SIL 3-compliant signal acquisition

Key Features

  • 32 Independent Input Channels: Supports simultaneous monitoring of multiple analog signals, including 4–20 mA and 0–10 V inputs.

  • Integrated Transmitter Supply: Each channel provides up to 30 mA for powering 2-wire or 3-wire transmitters with short-circuit protection.

  • High-Resolution Conversion: 16-bit A/D resolution ensures precise measurement and low-latency updates for safety loops.

  • Advanced Diagnostics: Continuous self-monitoring, line fault detection, and LED status indicators per channel.

  • Electrical and Environmental Robustness: Galvanic isolation between input channels and system bus, IP20 protection, and wide operating temperature range.

  • Seamless Integration: Direct interface with HIMax system rack, compatible with redundancy and hot-swap configurations.

Technical Specifications

Feature Specification
Module Type Analog Input Module
Model Number X-AI 32 01
Number of Channels 32
Input Signal Range 0/4–20 mA, 0–10 V, configurable
Input Resistance 200 Ω (shunt)
Resolution 16-bit
Transmitter Supply Up to 30 mA per channel, short-circuit proof
Supply Voltage 24 VDC
Current Consumption 500 mA (min), 1.5 A (max with short-circuit)
Safety Integrity Level SIL 3 (IEC 61508/61511), PL e (EN ISO 13849-1)
Operating Temperature -20°C to +60°C
Humidity Up to 95% non-condensing
Protection IP20
Dimensions 310 × 29.2 × 230 mm
Weight 1.4 kg
Connectivity Requires HIMax baseplate or connector board (e.g., X-CB 008 series)

FAQ

Q: Can the module support both 4–20 mA and 0–10 V signals simultaneously?
A: Yes, each channel is configurable for either current or voltage input, allowing mixed signal acquisition.

Q: Is the transmitter supply protected against short circuits?
A: Yes, each channel’s supply is short-circuit-proof and monitored for voltage deviations, automatically isolating affected channels if necessary.

Q: Can the module be hot-swapped in a redundant configuration?
A: Yes, it supports hot-swapping without interrupting ongoing process control when used in redundant racks.

Similar Models Comparison

      • X-AI 16 01: 16-channel input, smaller footprint, suitable for medium-scale installations.

      • X-AI 64 01: 64-channel module, high-density option for very large sensor networks.
