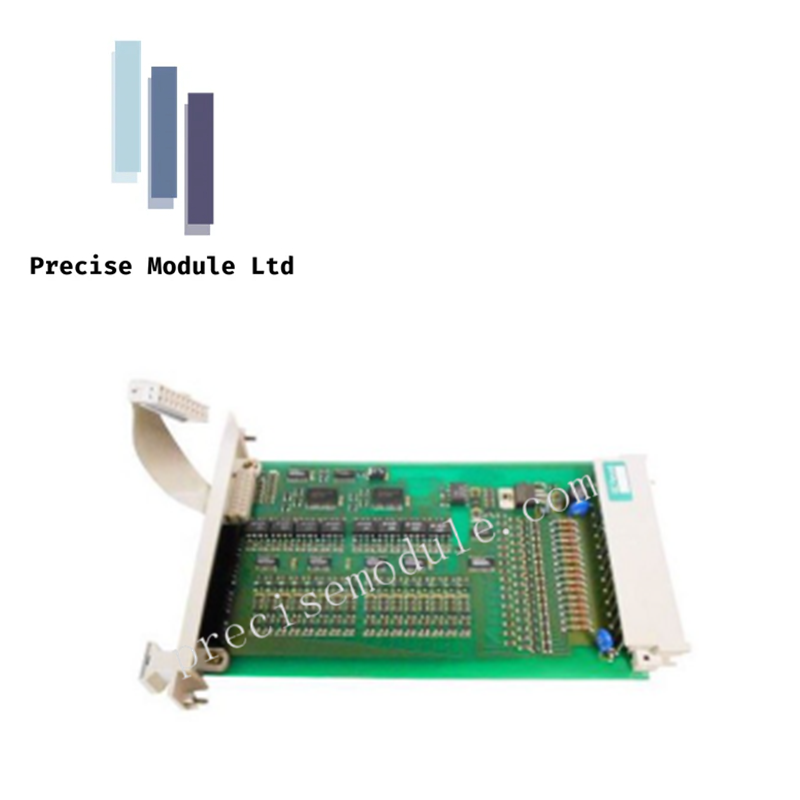

Honeywell 10209/2/1 Digital Output Module

Product Description

The 10209/2/1 is a high-density, fail-safe digital output module designed for the Honeywell Fail-Safe Control (FSC) and Safety Manager systems. This module is a critical component in safety-instrumented systems (SIS), providing 16 independent channels for the discrete control of field actuators. It is specifically engineered to drive mission-critical devices such as solenoid valves, motor starters, and indicating lamps using standard 24V DC logic.

With a high-speed switching response of less than 1ms, the 10209/2/1 ensures immediate execution of safety logic commands. The module features robust galvanic isolation (500 VDC) between the system electronics and field circuitry, protecting the core control logic from external electrical disturbances. Its compact, lightweight design allows for high-density I/O configurations within industrial control cabinets, supporting temperatures from -20°C to +60°C for reliable operation in diverse process environments.

Technical Specifications

• Manufacturer: Honeywell

• Model Number: 10209/2/1

• Product Type: Digital Output Module (DO)

• Control Architecture: Fail-Safe Control (FSC) System compatible

• Channel Count: 16 independent digital output channels

• Output Type: Discrete (On/Off) switching

• Nominal Output Voltage: 24V DC

• Maximum Output Current: 0.5 A per channel

• Switching Response Time: < 1 ms (High-speed execution)

• Isolation Voltage: 500 VDC (Field-to-Logic)

• Environmental Rating: IP20 (Protected against solid objects >12mm)

• Mounting Style: Standard panel mount / Rack sub-assembly compatible

• Operating Temperature: -20°C to +60°C (-4°F to +140°F)

• Storage Temperature: -40°C to +85°C (-40°F to +185°F)

• Physical Weight: 68g (approx. 0.15 lbs)

• Country of Origin: USA

Application Scenarios

The 10209/2/1 is predominantly utilized in high-integrity safety applications, including:

• Emergency Shutdown Systems (ESD): Actuating isolation valves and venting systems during critical process upsets.

• Fire and Gas Systems: Triggering audible alarms, visual strobes, and fire suppression solenoids.

• Burner Management Systems (BMS): Controlling fuel gas valves and ignition sequences for industrial boilers and furnaces.

• Interlock Logic: Managing hardware interlocks for heavy rotating equipment and motor control centers.
